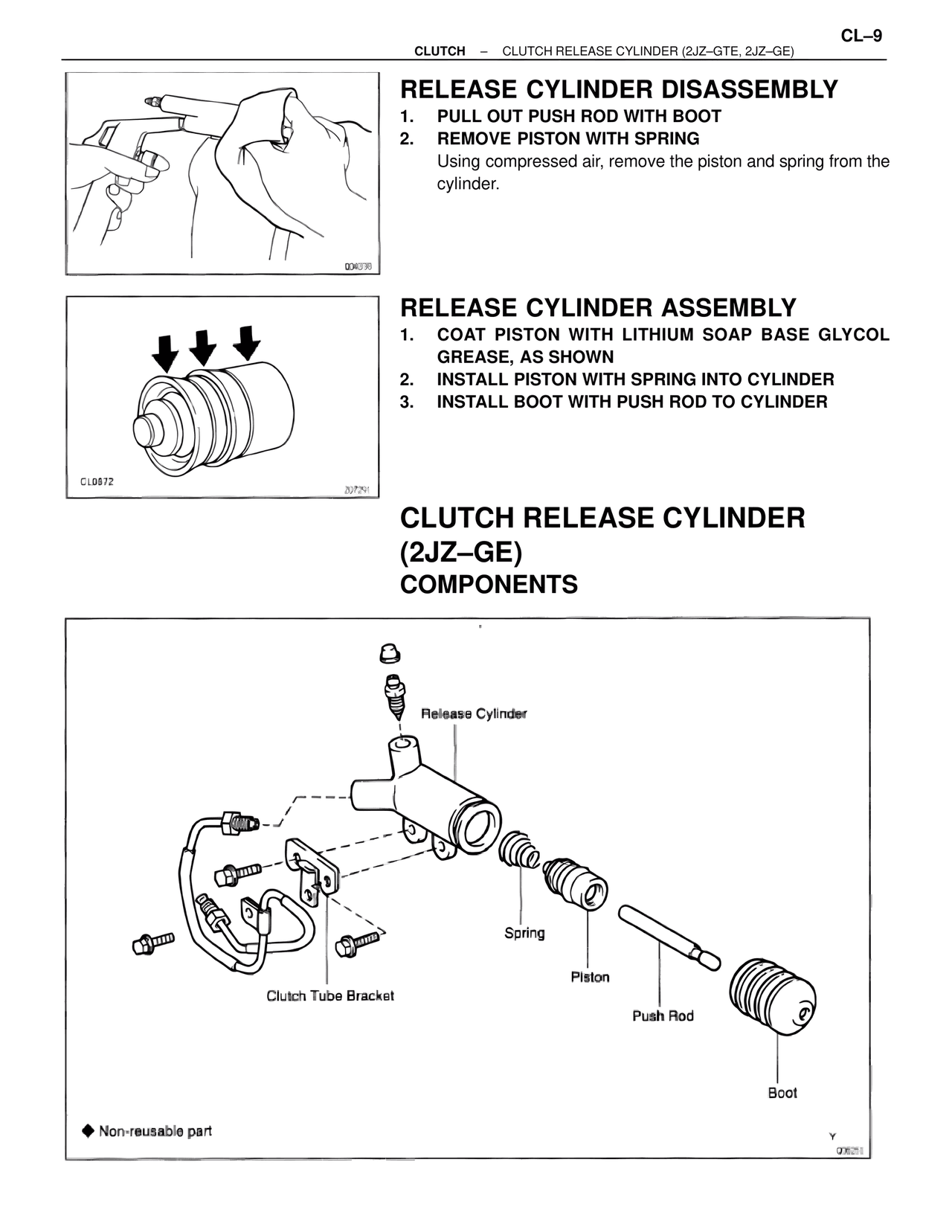

CL/Clutch System — Clutch Release Cylinder (2JZ–GE) Components, page 9

CL–9
CLUTCH – CLUTCH RELEASE CYLINDER (2JZ–GTE, 2JZ–GE)

RELEASE CYLINDER DISASSEMBLY
1. PULL OUT PUSH ROD WITH BOOT
2. REMOVE PISTON WITH SPRING
Using compressed air, remove the piston and spring from the cylinder.

RELEASE CYLINDER ASSEMBLY
1. COAT PISTON WITH LITHIUM SOAP BASE GLYCOL GREASE, AS SHOWN
2. INSTALL PISTON WITH SPRING INTO CYLINDER
3. INSTALL BOOT WITH PUSH ROD TO CYLINDER

CLUTCH RELEASE CYLINDER
(2JZ–GE)
COMPONENTS

Release Cylinder
Spring
Piston
Push Rod
Boot
Clutch Tube Bracket

♦ Non-reusable part

CL0572
004338
207291
Y
006251
