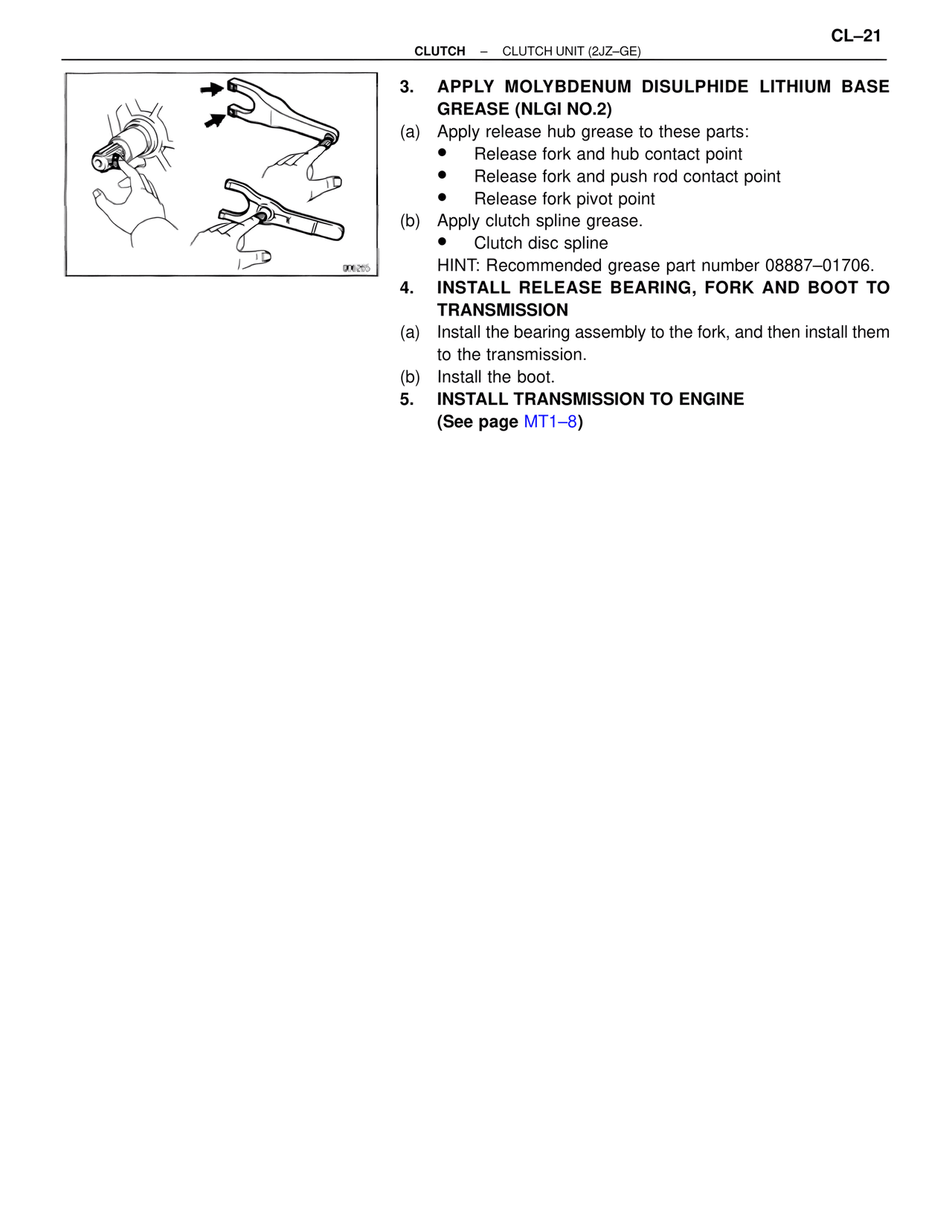

CL–21
CLUTCH – CLUTCH UNIT (2JZ–GE)
3. APPLY MOLYBDENUM DISULPHIDE LITHIUM BASE GREASE (NLGI NO.2)
(a) Apply release hub grease to these parts:
• Release fork and hub contact point
• Release fork and push rod contact point
• Release fork pivot point
(b) Apply clutch spline grease.
• Clutch disc spline
HINT: Recommended grease part number 08887–01706.
4. INSTALL RELEASE BEARING, FORK AND BOOT TO TRANSMISSION
(a) Install the bearing assembly to the fork, and then install them to the transmission.
(b) Install the boot.
5. INSTALL TRANSMISSION TO ENGINE
(See page MT1–8)
006265
