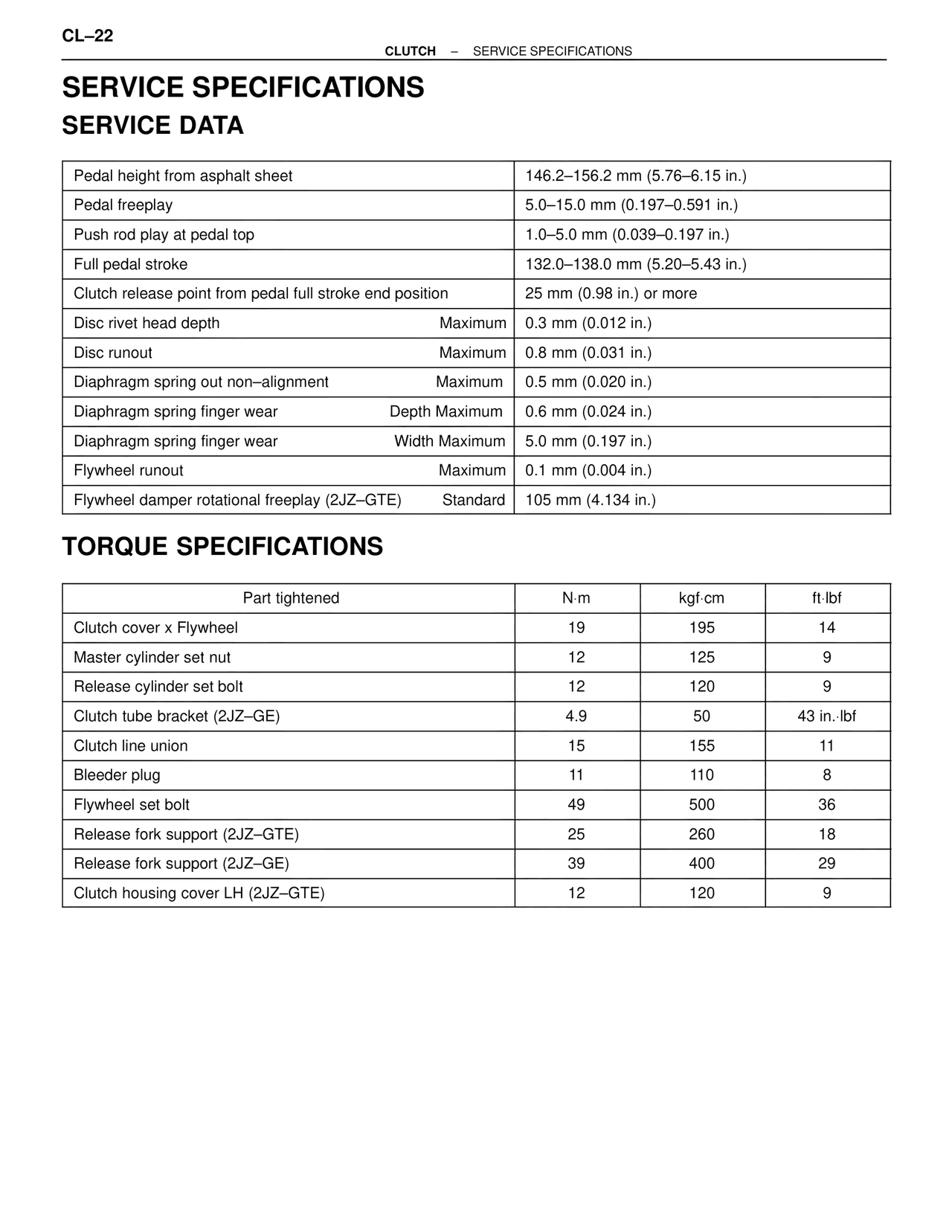

CL–22 CLUTCH – SERVICE SPECIFICATIONS SERVICE SPECIFICATIONS SERVICE DATA Pedal height from asphalt sheet | 146.2–156.2 mm (5.76–6.15 in.) Pedal freeplay | 5.0–15.0 mm (0.197–0.591 in.) Push rod play at pedal top | 1.0–5.0 mm (0.039–0.197 in.) Full pedal stroke | 132.0–138.0 mm (5.20–5.43 in.) Clutch release point from pedal full stroke end position | 25 mm (0.98 in.) or more Disc rivet head depth Maximum | 0.3 mm (0.012 in.) Disc runout Maximum | 0.8 mm (0.031 in.) Diaphragm spring out non–alignment Maximum | 0.5 mm (0.020 in.) Diaphragm spring finger wear Depth Maximum | 0.6 mm (0.024 in.) Diaphragm spring finger wear Width Maximum | 5.0 mm (0.197 in.) Flywheel runout Maximum | 0.1 mm (0.004 in.) Flywheel damper rotational freeplay (2JZ–GTE) Standard | 105 mm (4.134 in.) TORQUE SPECIFICATIONS Part tightened | N·m | kgf·cm | ft·lbf Clutch cover x Flywheel | 19 | 195 | 14 Master cylinder set nut | 12 | 125 | 9 Release cylinder set bolt | 12 | 120 | 9 Clutch tube bracket (2JZ–GE) | 4.9 | 50 | 43 in.·lbf Clutch line union | 15 | 155 | 11 Bleeder plug | 11 | 110 | 8 Flywheel set bolt | 49 | 500 | 36 Release fork support (2JZ–GTE) | 25 | 260 | 18 Release fork support (2JZ–GE) | 39 | 400 | 29 Clutch housing cover LH (2JZ–GTE) | 12 | 120 | 9
