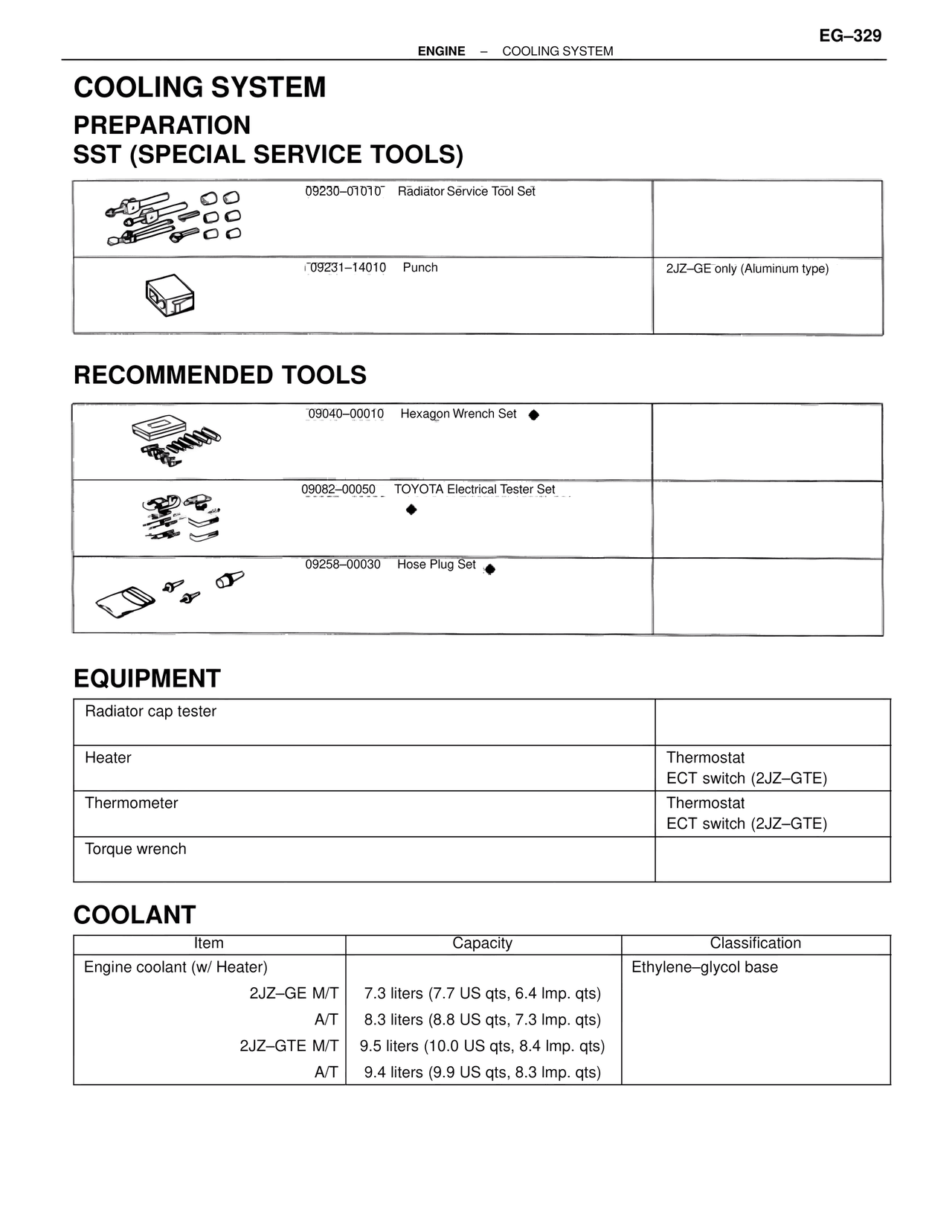

COOLING SYSTEM
PREPARATION
SST (SPECIAL SERVICE TOOLS)
09230–01010 Radiator Service Tool Set
09231–14010 Punch 2JZ–GE only (Aluminum type)
RECOMMENDED TOOLS
09040–00010 Hexagon Wrench Set ♦
09082–00050 TOYOTA Electrical Tester Set
♦
09258–00030 Hose Plug Set ♦
EQUIPMENT
Radiator cap tester
Heater Thermostat
ECT switch (2JZ–GTE)
Thermometer Thermostat
ECT switch (2JZ–GTE)
Torque wrench
COOLANT
Item Capacity Classification
Engine coolant (w/ Heater) Ethylene–glycol base
2JZ–GE M/T 7.3 liters (7.7 US qts, 6.4 Imp. qts)
A/T 8.3 liters (8.8 US qts, 7.3 Imp. qts)
2JZ–GTE M/T 9.5 liters (10.0 US qts, 8.4 Imp. qts)
A/T 9.4 liters (9.9 US qts, 8.3 Imp. qts)
