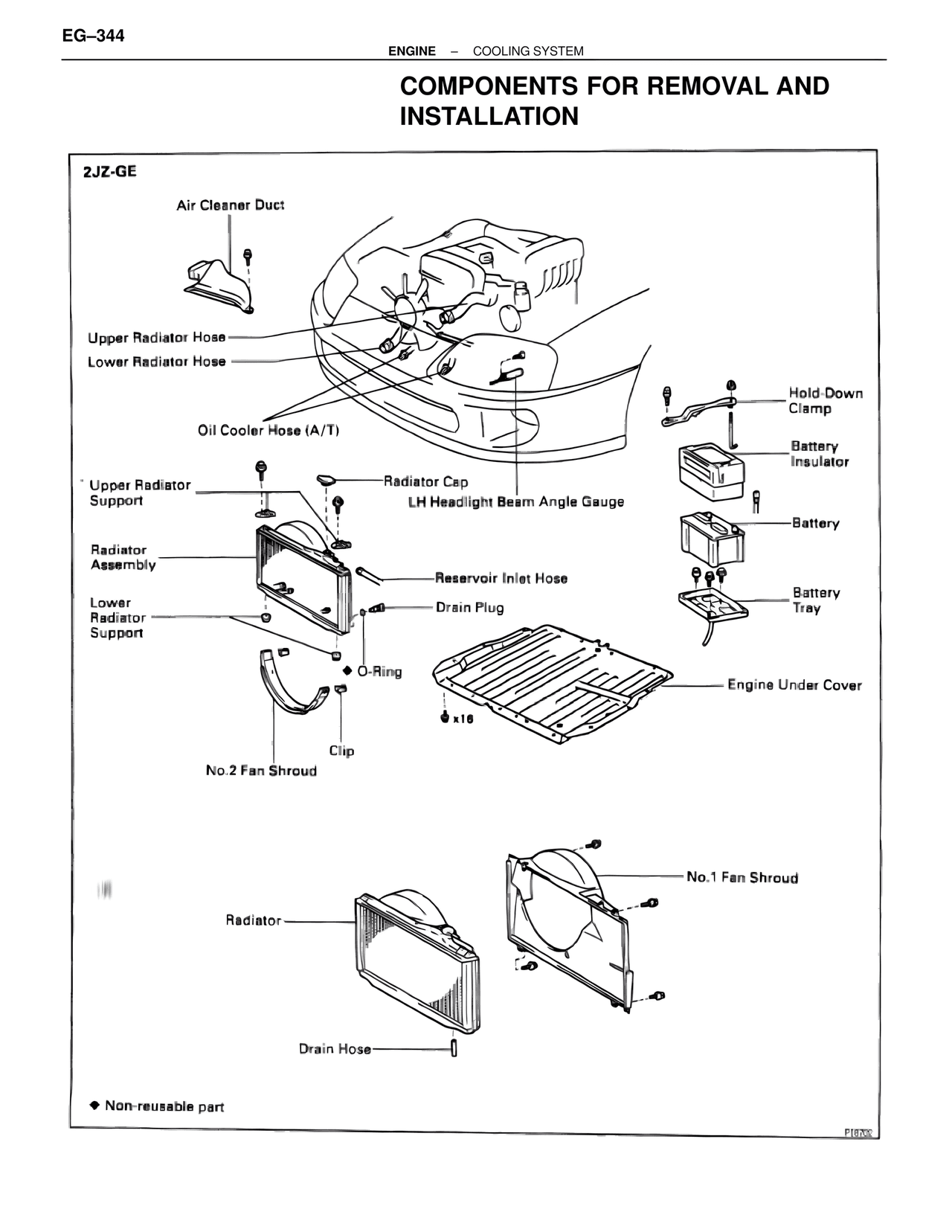

EG–344 ENGINE – COOLING SYSTEM COMPONENTS FOR REMOVAL AND INSTALLATION 2JZ-GE Air Cleaner Duct Upper Radiator Hose Lower Radiator Hose Oil Cooler Hose (A/T) Hold-Down Clamp Battery Insulator Battery Upper Radiator Support Radiator Cap LH Headlight Beam Angle Gauge Battery Tray Radiator Assembly Reservoir Inlet Hose Lower Radiator Support Drain Plug Engine Under Cover ◆ O-Ring ◆ x16 Clip No.2 Fan Shroud No.1 Fan Shroud Radiator Drain Hose ◆ Non-reusable part P18702
