ENGINE – COOLING SYSTEM
ECT
Switch
Connector
Electric Cooling
Fan Connector
P11548

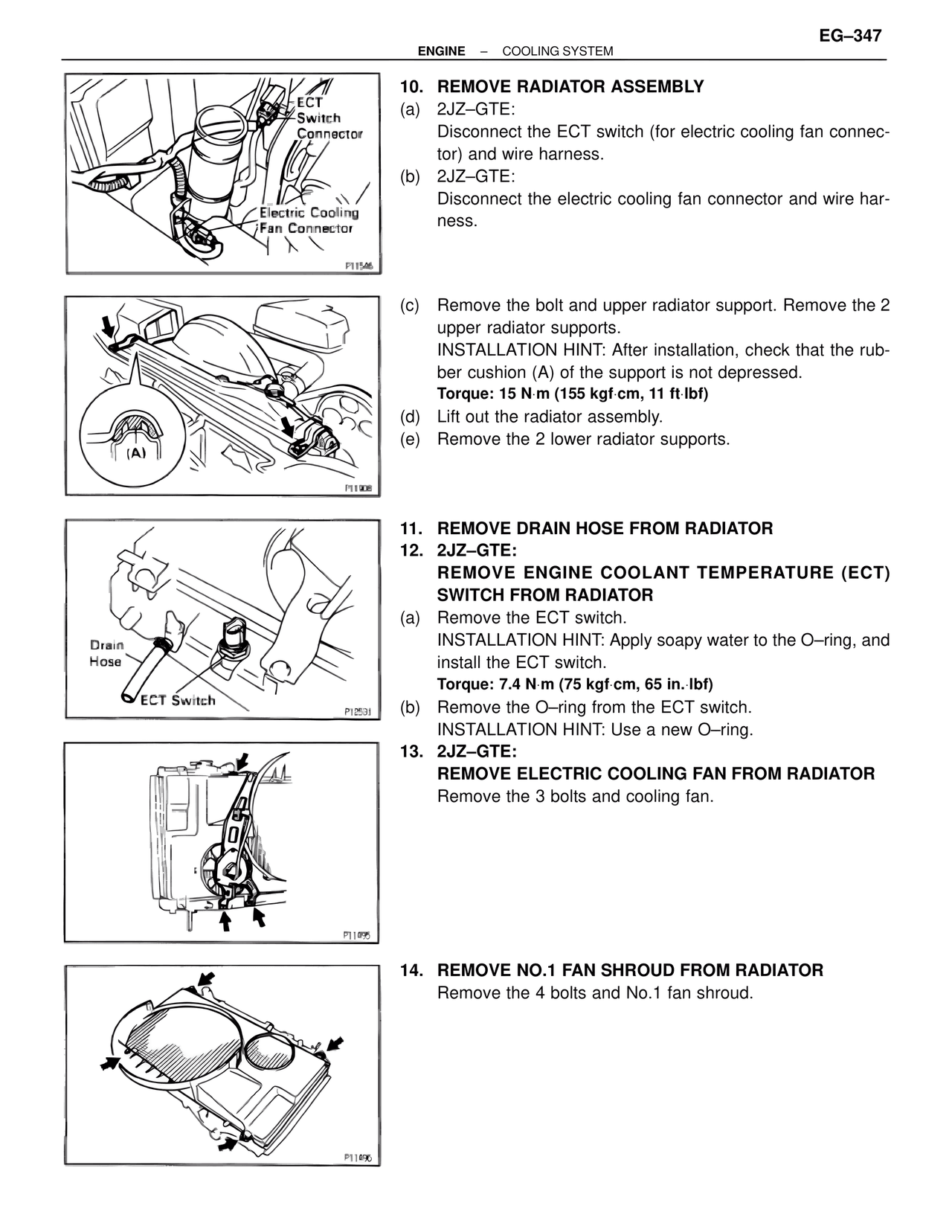

10. REMOVE RADIATOR ASSEMBLY
(a) 2JZ–GTE:
Disconnect the ECT switch (for electric cooling fan connector) and wire harness.
(b) 2JZ–GTE:
Disconnect the electric cooling fan connector and wire harness.
(A)
P11908
(c) Remove the bolt and upper radiator support. Remove the 2 upper radiator supports.
INSTALLATION HINT: After installation, check that the rubber cushion (A) of the support is not depressed.
Torque: 15 N·m (155 kgf·cm, 11 ft·lbf)
(d) Lift out the radiator assembly.
(e) Remove the 2 lower radiator supports.
Drain
Hose
ECT Switch
P12531
11. REMOVE DRAIN HOSE FROM RADIATOR
12. 2JZ–GTE:
REMOVE ENGINE COOLANT TEMPERATURE (ECT) SWITCH FROM RADIATOR
(a) Remove the ECT switch.
INSTALLATION HINT: Apply soapy water to the O–ring, and install the ECT switch.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)
(b) Remove the O–ring from the ECT switch.
INSTALLATION HINT: Use a new O–ring.
13. 2JZ–GTE:
REMOVE ELECTRIC COOLING FAN FROM RADIATOR
Remove the 3 bolts and cooling fan.
P11495
14. REMOVE NO.1 FAN SHROUD FROM RADIATOR
Remove the 4 bolts and No.1 fan shroud.
P11496
