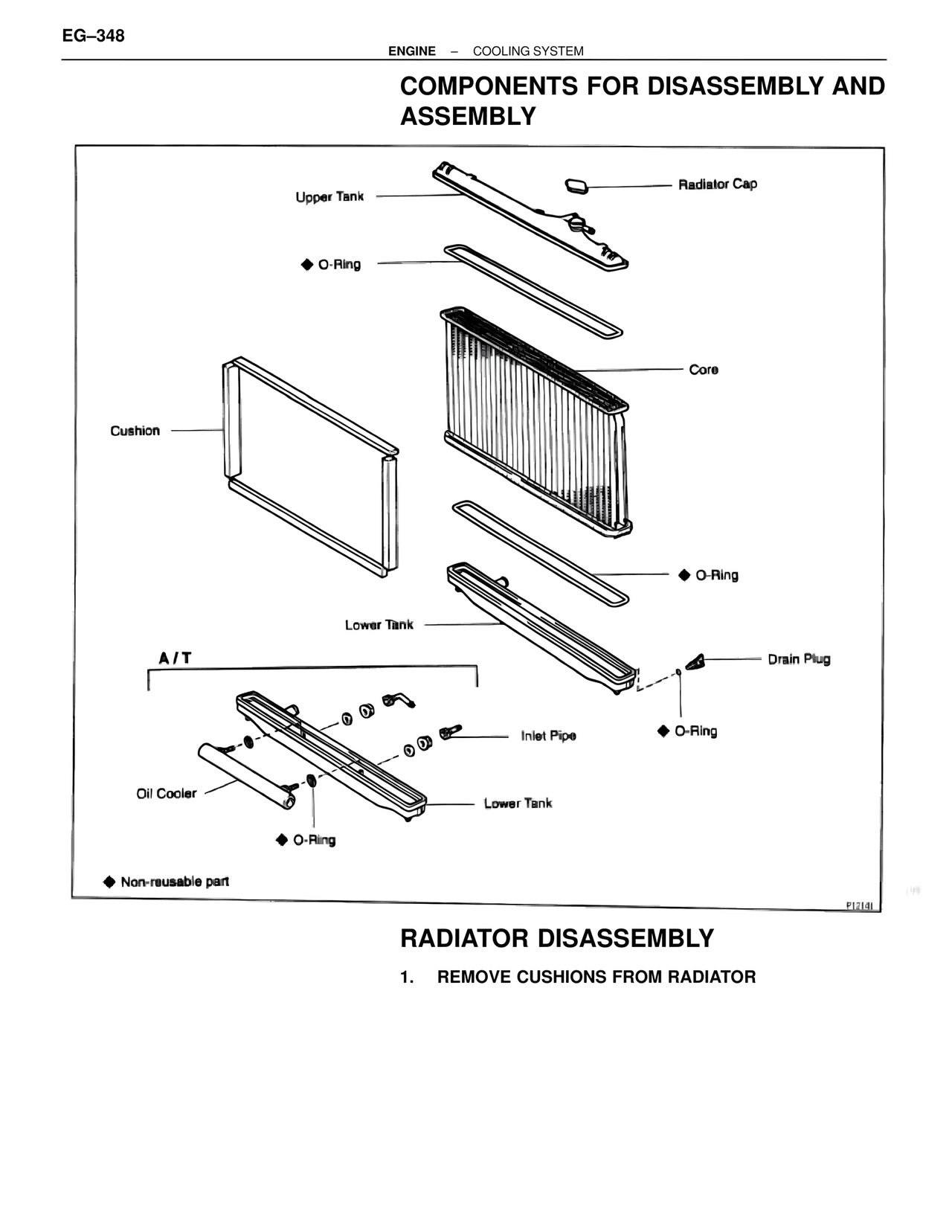

EG–348 ENGINE – COOLING SYSTEM COMPONENTS FOR DISASSEMBLY AND ASSEMBLY Upper Tank Radiator Cap ◆ O-Ring Core Cushion ◆ O-Ring Lower Tank A / T Drain Plug Inlet Pipe ◆ O-Ring Oil Cooler Lower Tank ◆ O-Ring ◆ Non-reusable part RADIATOR DISASSEMBLY 1. REMOVE CUSHIONS FROM RADIATOR
