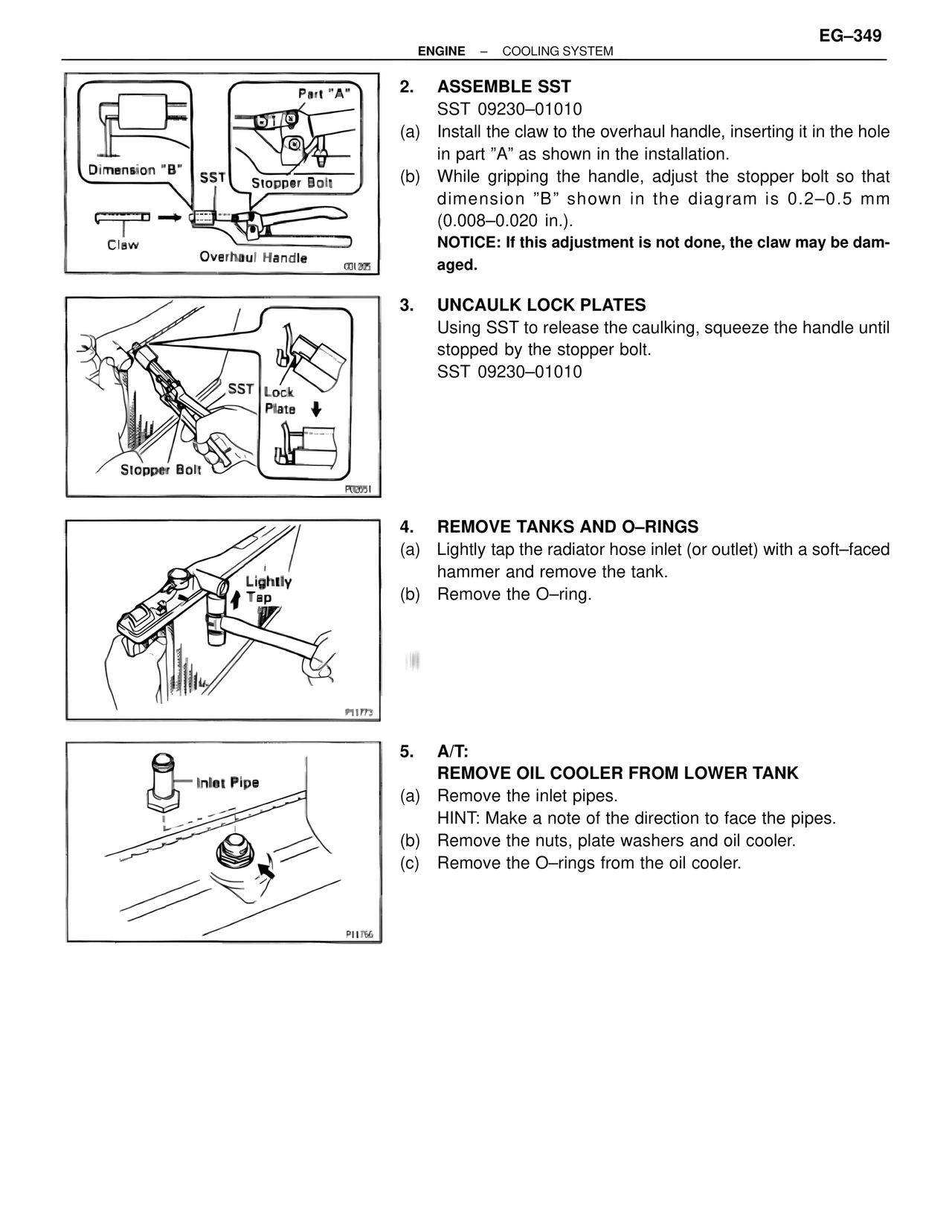

EG–349
ENGINE – COOLING SYSTEM
Dimension "B"
SST
Storper Bolt
Claw
Overhaul Handle
C01305
Part "A"
2. ASSEMBLE SST
SST 09230–01010
(a) Install the claw to the overhaul handle, inserting it in the hole
in part "A" as shown in the installation.
(b) While gripping the handle, adjust the stopper bolt so that
dimension "B" shown in the diagram is 0.2–0.5 mm
(0.008–0.020 in.).
NOTICE: If this adjustment is not done, the claw may be dam-
aged.
SST
Lock
Plate
Storper Bolt
P00651
3. UNCAULK LOCK PLATES
Using SST to release the caulking, squeeze the handle until
stopped by the stopper bolt.
SST 09230–01010
Lightly
Tap
P11773
4. REMOVE TANKS AND O–RINGS
(a) Lightly tap the radiator hose inlet (or outlet) with a soft–faced
hammer and remove the tank.
(b) Remove the O–ring.
Inlet Pipe
P11756
5. A/T:
REMOVE OIL COOLER FROM LOWER TANK
(a) Remove the inlet pipes.
HINT: Make a note of the direction to face the pipes.
(b) Remove the nuts, plate washers and oil cooler.
(c) Remove the O–rings from the oil cooler.
