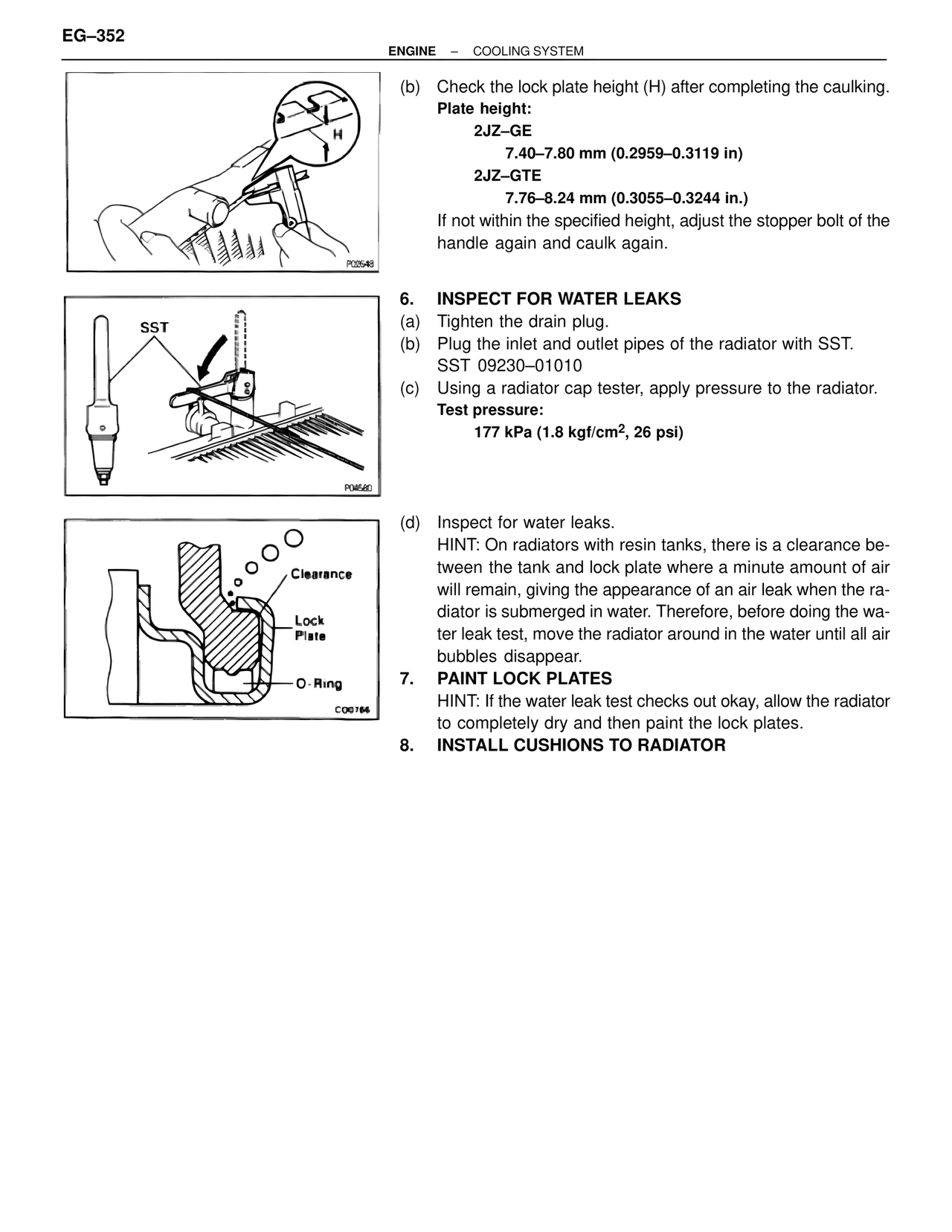

EG–352
ENGINE – COOLING SYSTEM
(b) Check the lock plate height (H) after completing the caulking.
Plate height:
2JZ–GE
7.40–7.80 mm (0.2959–0.3119 in)
2JZ–GTE
7.76–8.24 mm (0.3055–0.3244 in.)
If not within the specified height, adjust the stopper bolt of the
handle again and caulk again.
6. INSPECT FOR WATER LEAKS
(a) Tighten the drain plug.
(b) Plug the inlet and outlet pipes of the radiator with SST.
SST 09230–01010
(c) Using a radiator cap tester, apply pressure to the radiator.
Test pressure:
177 kPa (1.8 kgf/cm2, 26 psi)
(d) Inspect for water leaks.
HINT: On radiators with resin tanks, there is a clearance be-
tween the tank and lock plate where a minute amount of air
will remain, giving the appearance of an air leak when the ra-
diator is submerged in water. Therefore, before doing the wa-
ter leak test, move the radiator around in the water until all air
bubbles disappear.
7. PAINT LOCK PLATES
HINT: If the water leak test checks out okay, allow the radiator
to completely dry and then paint the lock plates.
8. INSTALL CUSHIONS TO RADIATOR
SST
Clearance
Lock
Plate
O-Ring
P02548
P04580
C00764
