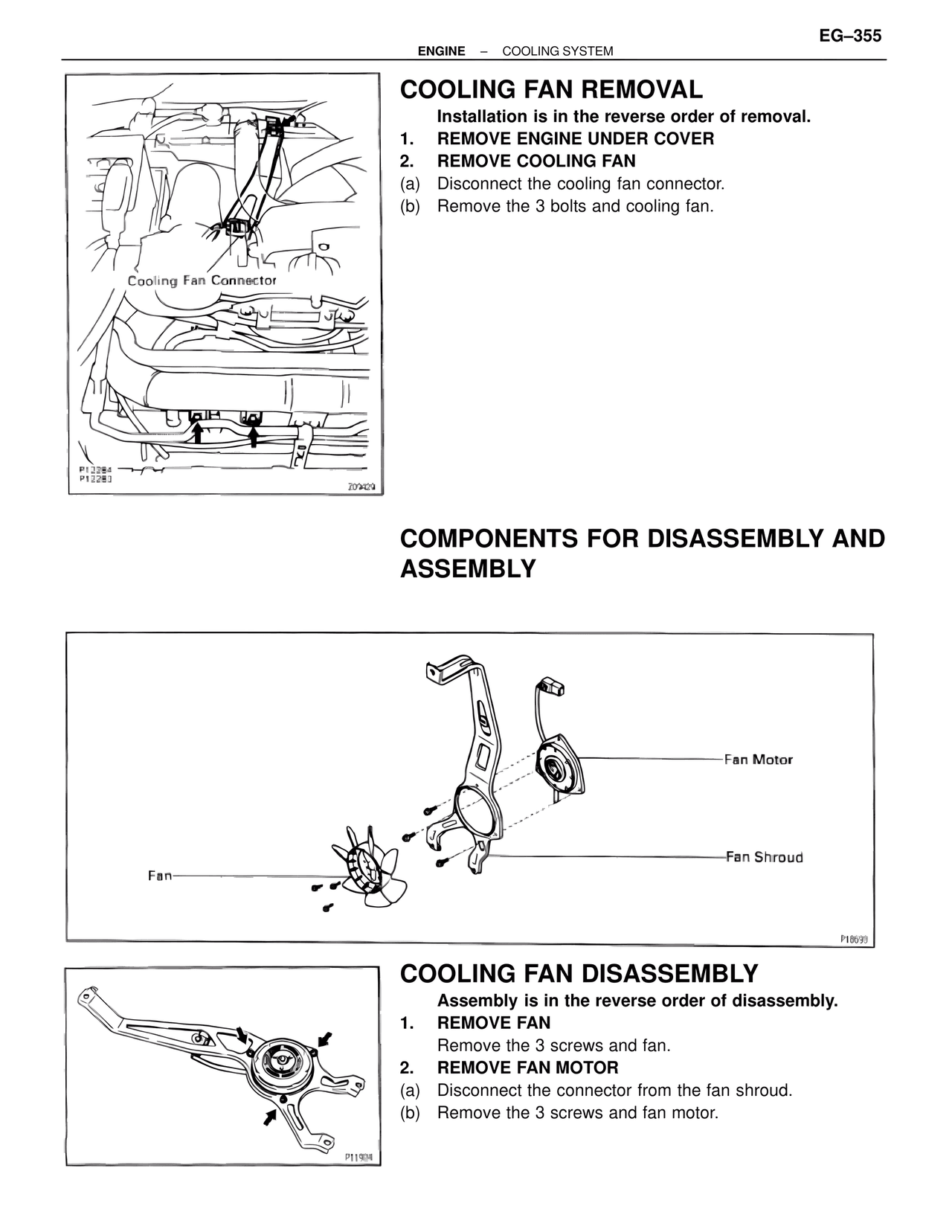

ENGINE – COOLING SYSTEM
EG–355
COOLING FAN REMOVAL
Installation is in the reverse order of removal.
1. REMOVE ENGINE UNDER COVER
2. REMOVE COOLING FAN
(a) Disconnect the cooling fan connector.
(b) Remove the 3 bolts and cooling fan.
Cooling Fan Connector
P12284
P12283
209429
COMPONENTS FOR DISASSEMBLY AND ASSEMBLY
Fan Motor
Fan Shroud
Fan
P18693
COOLING FAN DISASSEMBLY
Assembly is in the reverse order of disassembly.
1. REMOVE FAN
Remove the 3 screws and fan.
2. REMOVE FAN MOTOR
(a) Disconnect the connector from the fan shroud.
(b) Remove the 3 screws and fan motor.
P11924
