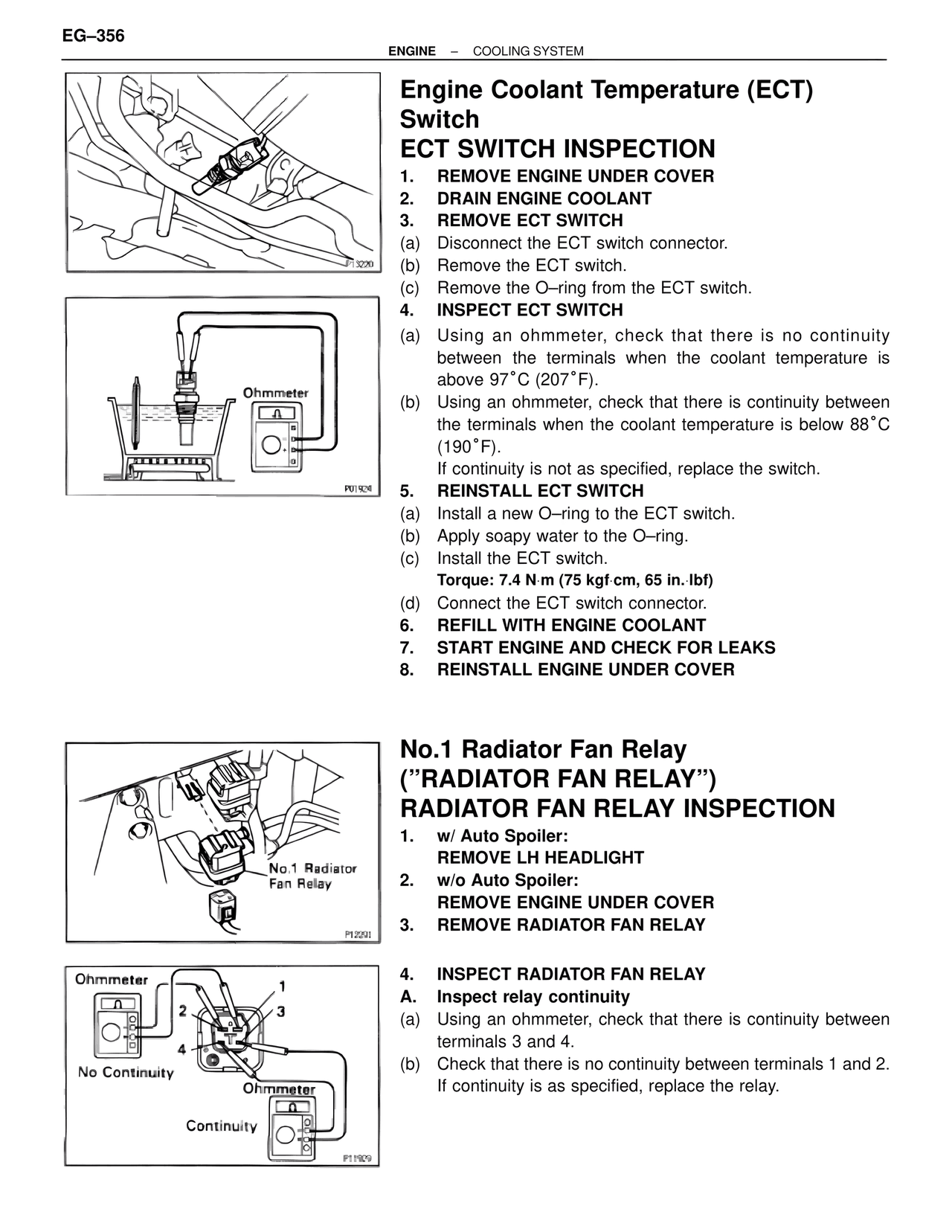

EG–356
ENGINE – COOLING SYSTEM
Engine Coolant Temperature (ECT) Switch
ECT SWITCH INSPECTION
1. REMOVE ENGINE UNDER COVER
2. DRAIN ENGINE COOLANT
3. REMOVE ECT SWITCH
(a) Disconnect the ECT switch connector.
(b) Remove the ECT switch.
(c) Remove the O–ring from the ECT switch.
4. INSPECT ECT SWITCH
(a) Using an ohmmeter, check that there is no continuity between the terminals when the coolant temperature is above 97°C (207°F).
(b) Using an ohmmeter, check that there is continuity between the terminals when the coolant temperature is below 88°C (190°F).
If continuity is not as specified, replace the switch.
5. REINSTALL ECT SWITCH
(a) Install a new O–ring to the ECT switch.
(b) Apply soapy water to the O–ring.
(c) Install the ECT switch.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)
(d) Connect the ECT switch connector.
6. REFILL WITH ENGINE COOLANT
7. START ENGINE AND CHECK FOR LEAKS
8. REINSTALL ENGINE UNDER COVER
P13290
Ohmmeter
P01929
No.1 Radiator Fan Relay
("RADIATOR FAN RELAY")
RADIATOR FAN RELAY INSPECTION
1. w/ Auto Spoiler:
REMOVE LH HEADLIGHT
2. w/o Auto Spoiler:
REMOVE ENGINE UNDER COVER
3. REMOVE RADIATOR FAN RELAY
No.1 Radiator Fan Relay
P12291
4. INSPECT RADIATOR FAN RELAY
A. Inspect relay continuity
(a) Using an ohmmeter, check that there is continuity between terminals 3 and 4.
(b) Check that there is no continuity between terminals 1 and 2.
If continuity is as specified, replace the relay.
Ohmmeter
1
2
3
4
No Continuity
Ohmmeter
Continuity
P11929
