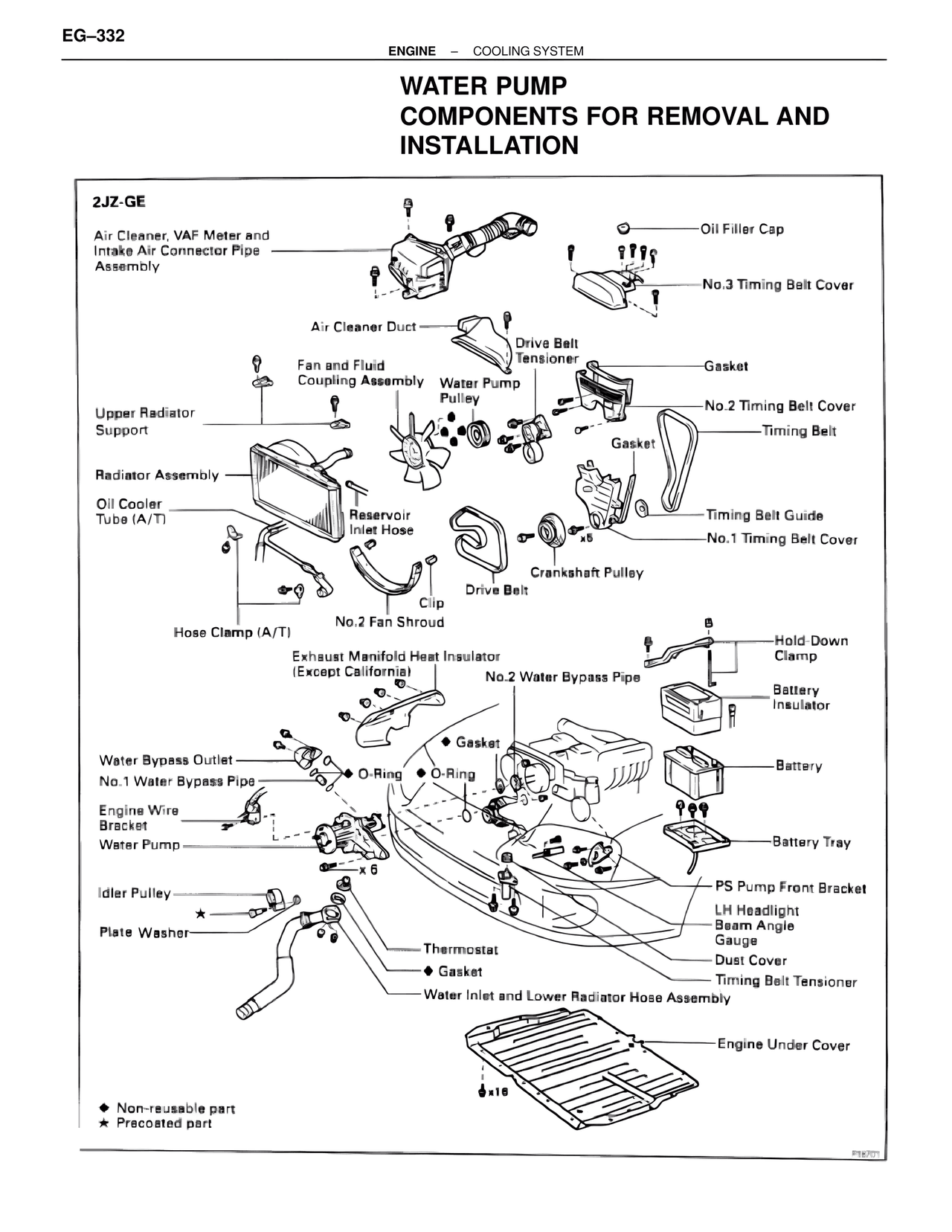

EG–332 ENGINE – COOLING SYSTEM WATER PUMP COMPONENTS FOR REMOVAL AND INSTALLATION 2JZ-GE Air Cleaner, VAF Meter and Intake Air Connector Pipe Assembly Oil Filler Cap No.3 Timing Belt Cover Air Cleaner Duct Drive Belt Tensioner Fan and Fluid Coupling Assembly Water Pump Pulley Gasket No.2 Timing Belt Cover Upper Radiator Support Gasket Timing Belt Radiator Assembly Oil Cooler Tube (A/T) Reservoir Inlet Hose Timing Belt Guide No.1 Timing Belt Cover x5 Crankshaft Pulley Drive Belt Clip No.2 Fan Shroud Hose Clamp (A/T) Hold-Down Clamp Exhaust Manifold Heat Insulator (Except California) No.2 Water Bypass Pipe Battery Insulator Water Bypass Outlet ◆ Gasket Battery No.1 Water Bypass Pipe ◆ O-Ring ◆ O-Ring Engine Wire Bracket Battery Tray Water Pump x 6 PS Pump Front Bracket Idler Pulley ★ LH Headlight Beam Angle Gauge Plate Washer Dust Cover Timing Belt Tensioner Thermostat ◆ Gasket Water Inlet and Lower Radiator Hose Assembly Engine Under Cover ♦ x16 ◆ Non-reusable part ★ Precoated part P18201
