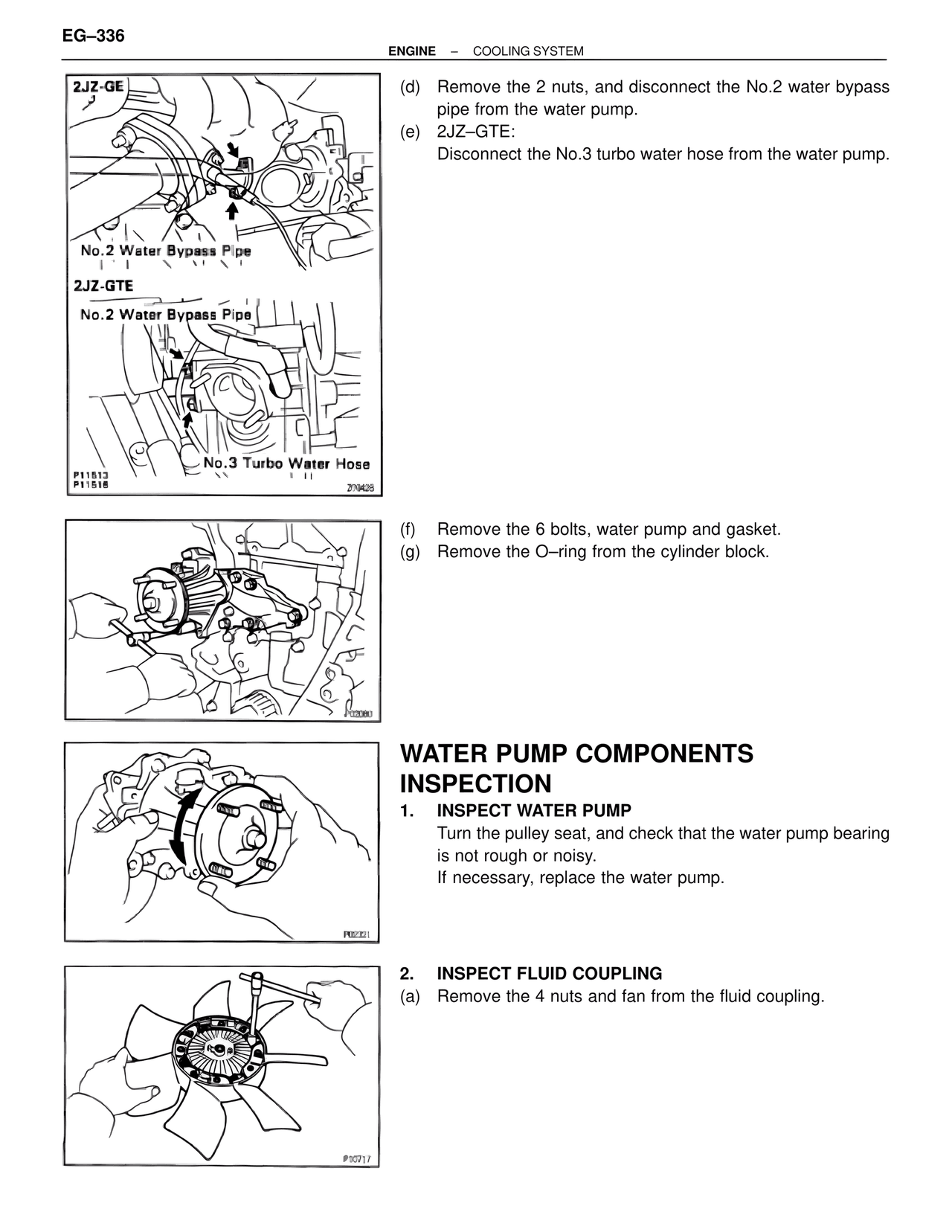

EG–336
ENGINE – COOLING SYSTEM
2JZ-GE
No.2 Water Bypass Pipe
2JZ-GTE
No.2 Water Bypass Pipe
No.3 Turbo Water Hose
P11513
P11516
219425
(d) Remove the 2 nuts, and disconnect the No.2 water bypass
pipe from the water pump.
(e) 2JZ–GTE:
Disconnect the No.3 turbo water hose from the water pump.
P02080
(f) Remove the 6 bolts, water pump and gasket.
(g) Remove the O–ring from the cylinder block.
P02321
WATER PUMP COMPONENTS
INSPECTION
1. INSPECT WATER PUMP
Turn the pulley seat, and check that the water pump bearing
is not rough or noisy.
If necessary, replace the water pump.
P05717
2. INSPECT FLUID COUPLING
(a) Remove the 4 nuts and fan from the fluid coupling.
