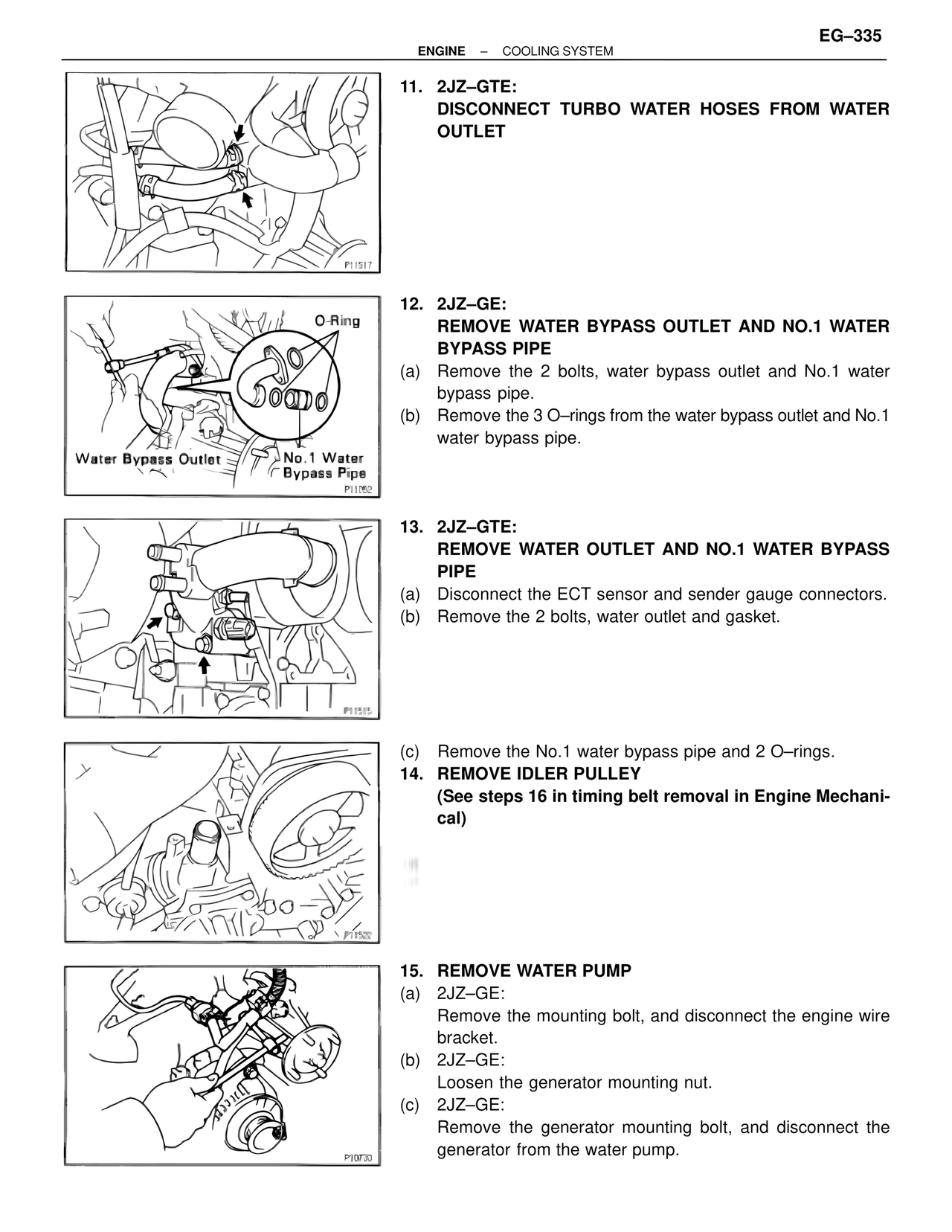

EG–335
ENGINE – COOLING SYSTEM
11. 2JZ–GTE:
DISCONNECT TURBO WATER HOSES FROM WATER
OUTLET
P11517
O-Ring
Water Bypass Outlet
No.1 Water
Bypass Pipe
P11062
12. 2JZ–GE:
REMOVE WATER BYPASS OUTLET AND NO.1 WATER
BYPASS PIPE
(a) Remove the 2 bolts, water bypass outlet and No.1 water
bypass pipe.
(b) Remove the 3 O–rings from the water bypass outlet and No.1
water bypass pipe.
P11535
13. 2JZ–GTE:
REMOVE WATER OUTLET AND NO.1 WATER BYPASS
PIPE
(a) Disconnect the ECT sensor and sender gauge connectors.
(b) Remove the 2 bolts, water outlet and gasket.
P11522
(c) Remove the No.1 water bypass pipe and 2 O–rings.
14. REMOVE IDLER PULLEY
(See steps 16 in timing belt removal in Engine Mechani-
cal)
P10W30
15. REMOVE WATER PUMP
(a) 2JZ–GE:
Remove the mounting bolt, and disconnect the engine wire
bracket.
(b) 2JZ–GE:
Loosen the generator mounting nut.
(c) 2JZ–GE:
Remove the generator mounting bolt, and disconnect the
generator from the water pump.
