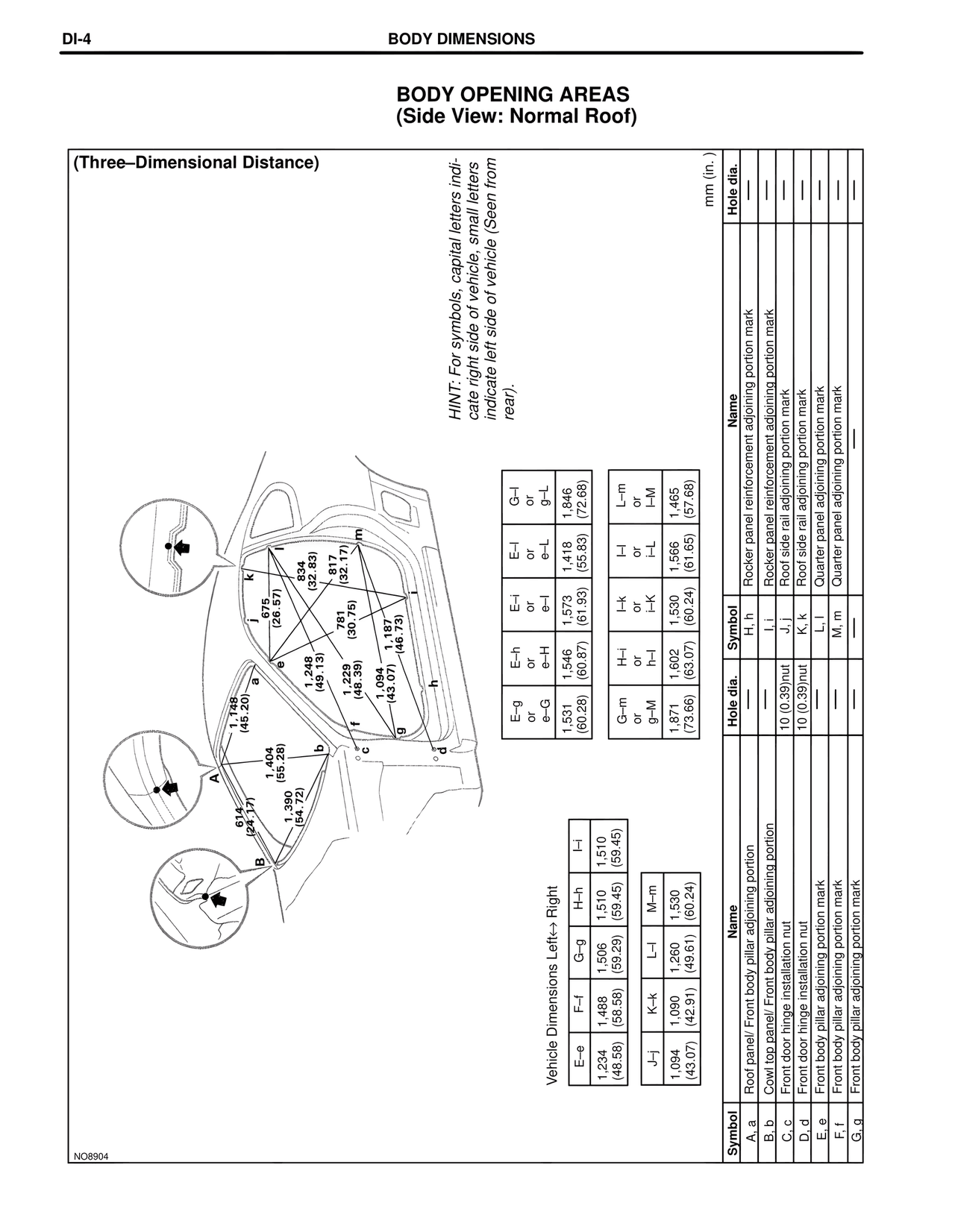

DI-4 BODY DIMENSIONS
BODY OPENING AREAS
(Side View: Normal Roof)
(Three–Dimensional Distance)
HINT: For symbols, capital letters indi-
cate right side of vehicle, small letters
indicate left side of vehicle (Seen from
rear).
NO8904
1,148
(45.20)
a
611
(24.17)
b
1,404
(55.28)
A
1,390
(54.72)
B
834
(32.83)
817
(32.17)
m
k
i
875
(26.57)
781
(30.75)
1,187
(46.73)
1,248
(49.13)
1,229
(48.39)
1,004
(43.07)
g
h
d
b
c
a
f
G–l
or
g–l
1,846
(72.68)
E–l
or
e–l
1,418
(55.83)
E–l
or
e–l
1,573
(61.93)
E–h
or
e–H
1,546
(60.87)
E–g
or
e–G
1,531
(60.28)
L–m
or
l–M
1,465
(57.68)
l
or
l–l
1,566
(61.65)
l–k
or
l–K
1,530
(60.24)
H–l
or
b–l
1,602
(63.07)
G–m
or
g–M
1,871
(73.66)
Vehicle Dimensions Left↔ Right
Symbol E–e F–f G–g H–h l–
J–j 1,094 1,090 1,506 1,510 1,510
(43.07) (42.91) (59.29) (59.45) (59.45)
K–k 1,234 1,488
(48.56) (58.58)
L–l 1,260
(49.61)
M–m 1,530
(60.24)
Name
A, a Roof panel/ Front body pillar adjoining portion
B, b Cowl top panel/ Front body pillar adjoining portion
C, c Front door hinge installation nut
D, d Front door hinge installation nut
E, e Front body pillar adjoining portion mark
F, f Front body pillar adjoining portion mark
G, g Front body pillar adjoining portion mark
Hole dia. Symbol Name
— I, i Rocker panel reinforcement adjoining portion mark
— J, j Rocker panel reinforcement adjoining portion mark
10 (0.39)nut K, k Roof side rail adjoining portion mark
10 (0.39)nut L, l Quarter panel adjoining portion mark
— M, m Quarter panel adjoining portion mark
— Quarter panel adjoining portion mark
Hole dia.
—
—
—
—
—
—
mm (in.)
