BODY DIMENSIONS
DI-5

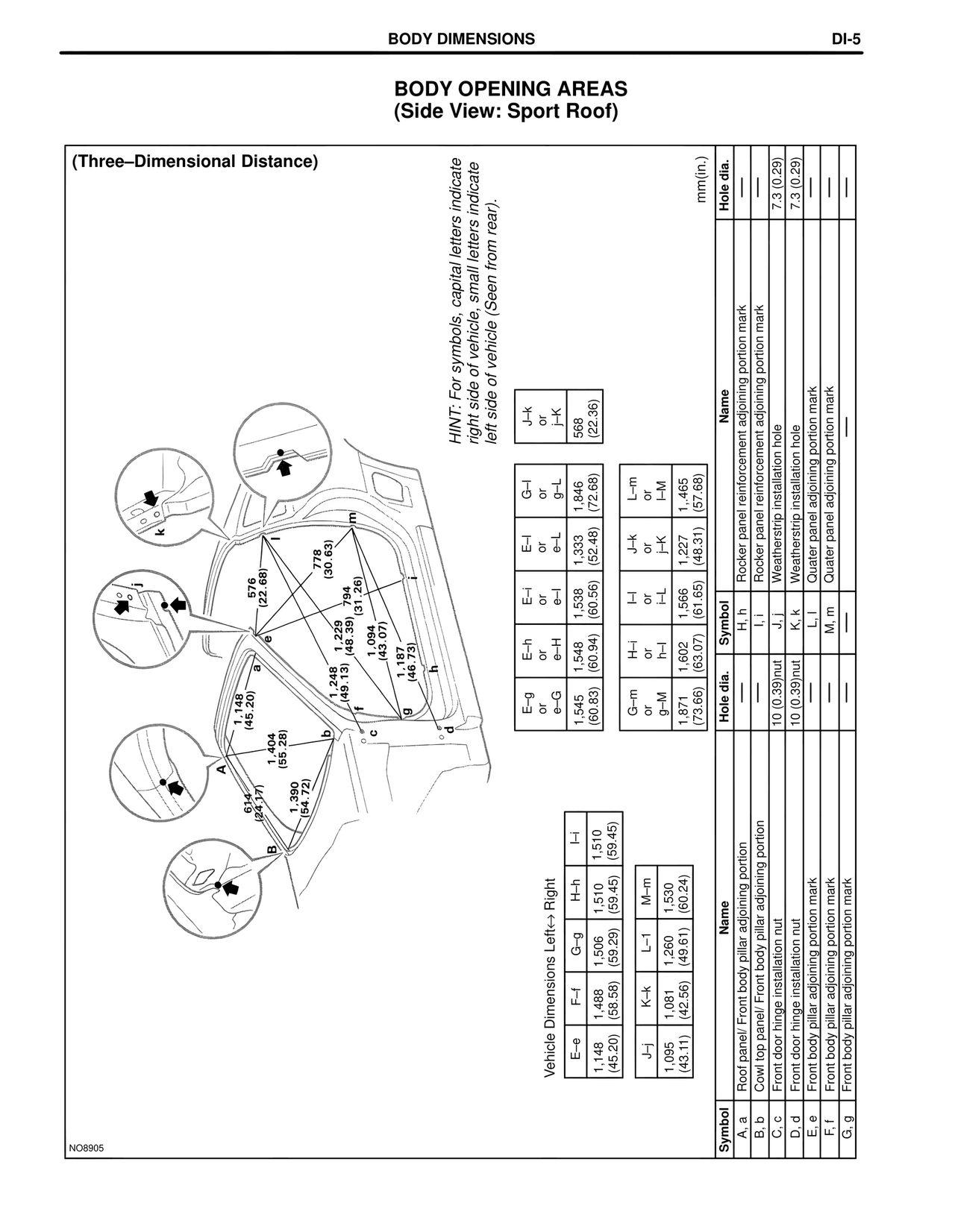

BODY OPENING AREAS
(Side View: Sport Roof)

(Three–Dimensional Distance)

HINT: For symbols, capital letters indicate
right side of vehicle, small letters indicate
left side of vehicle (Seen from rear).

576
(22.68)
778
(30.63)
794
(31.26)
1,229
(48.39)
1,094
(43.07)
1,187
(46.73)
h
1,248
(49.13)
1,148
(45.20)
a
b
1,404
(55.28)
A
614
(24.17)
1,390
(54.72)
B
NO8905

Vehicle Dimensions Left↔ Right

Symbol | E–e | F–f | K–k | J–j | G–g | H–h | I–I | M–m
1,148 | 1,488 | 1,081 | 1,095 | 1,506 | 1,510 | 1,260 | 1,530
(45.20) | (58.58) | (42.56) | (43.11) | (59.29) | (59.45) | (49.61) | (60.24)

I–I
1,510
(59.45)

H–h
1,510
(59.45)

Name
A, a | Roof panel/ Front body pillar adjoining portion
B, b | Cowl top panel/ Front body pillar adjoining portion
C, c | Front door hinge installation nut
D, d | Front door hinge installation nut
E, e | Front body pillar adjoining portion mark
F, f | Front body pillar adjoining portion mark
G, g | Front body pillar adjoining portion mark

E–h
or
e–H
1,545
(60.83)
1,548
(60.94)

E–I
or
e–I
1,538
(60.56)

E–I
or
e–I

E–I
or
e–I
1,333
(52.48)

G–I
or
g–I
1,846
(72.68)

J–k
or
J–K
568
(22.36)

G–m
or
g–M
1,871
(73.66)

H–I
or
h–I
1,602
(63.07)

H–I
or
h–I

I–I
or
I–I
1,566
(61.65)

J–k
or
J–K
1,227
(48.31)

L–m
or
I–M
1,465
(57.68)

mm(in.)

Hole dia.
—
—
10 (0.39)nut
10 (0.39)nut
—
—
—

Symbol | Name | Hole dia.
H, h | Rocker panel reinforcement adjoining portion mark | —
I, i | Rocker panel reinforcement adjoining portion mark | —
J, j | Weatherstrip installation hole | 7.3 (0.29)
K, k | Weatherstrip installation hole | 7.3 (0.29)
L, l | Quater panel adjoining portion mark | —
M, m | Quater panel adjoining portion mark | —
