DI-6                    BODY DIMENSIONS

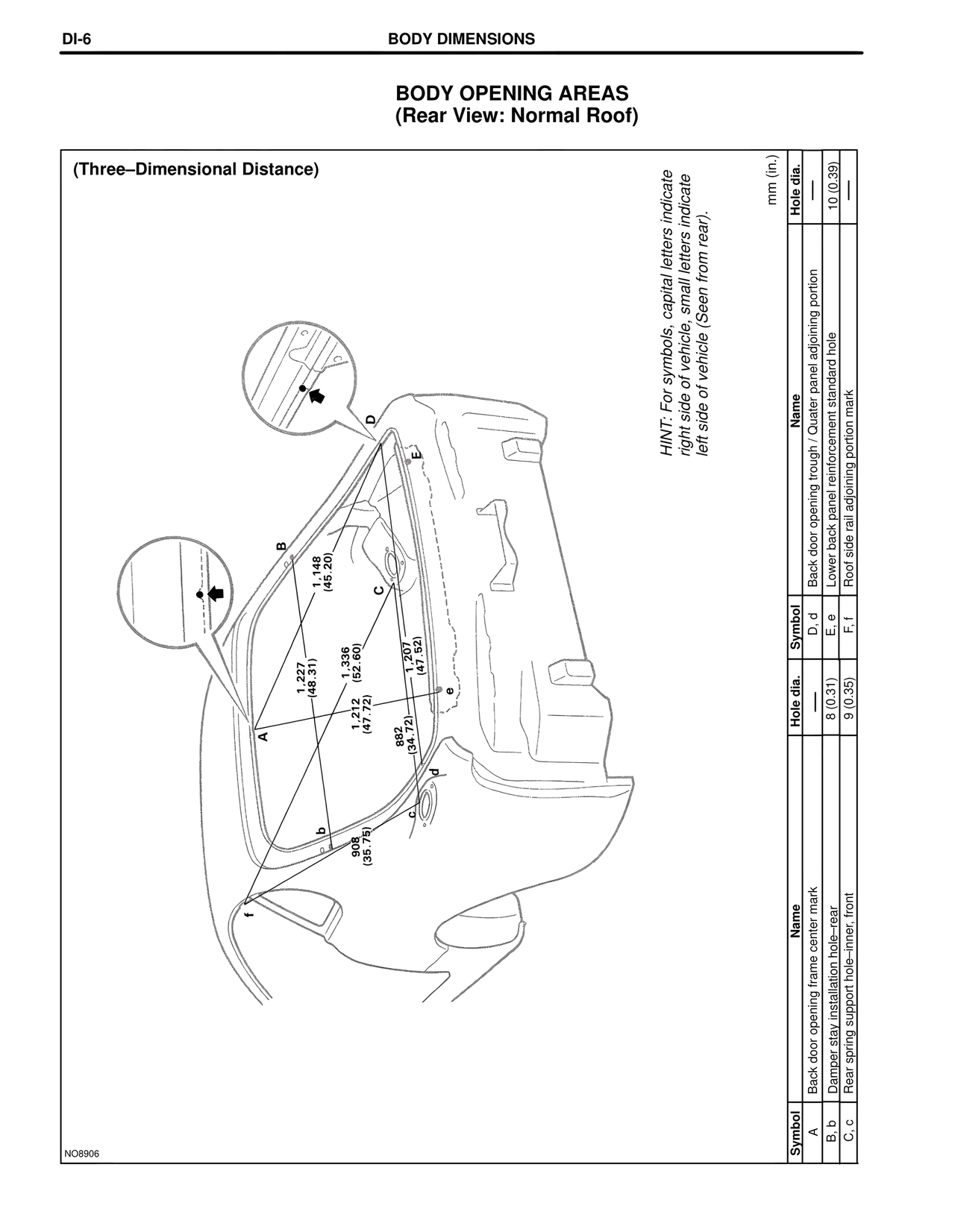

BODY OPENING AREAS
(Rear View: Normal Roof)

(Three–Dimensional Distance)

HINT: For symbols, capital letters indicate
right side of vehicle, small letters indicate
left side of vehicle (Seen from rear).

mm (in.)

1,148
(45.20)

1,227
(48.31)

1,336
(52.60)

1,903
(47.92)

1,212
(47.72)

882
(34.72)

908
(35.75)

NO8906

Symbol | Name | Hole dia.
A | Back door opening frame center mark | —
B, b | Damper stay installation hole–rear | 8 (0.31)
C, c | Rear spring support hole–inner, front | 9 (0.35)

Symbol | Name | Hole dia.
D, d | Back door opening trough / Quater panel adjoining portion | —
E, e | Lower back panel reinforcement standard hole | 10 (0.39)
F, f | Roof side rail adjoining portion mark | —
