BODY DIMENSIONS
DI-13

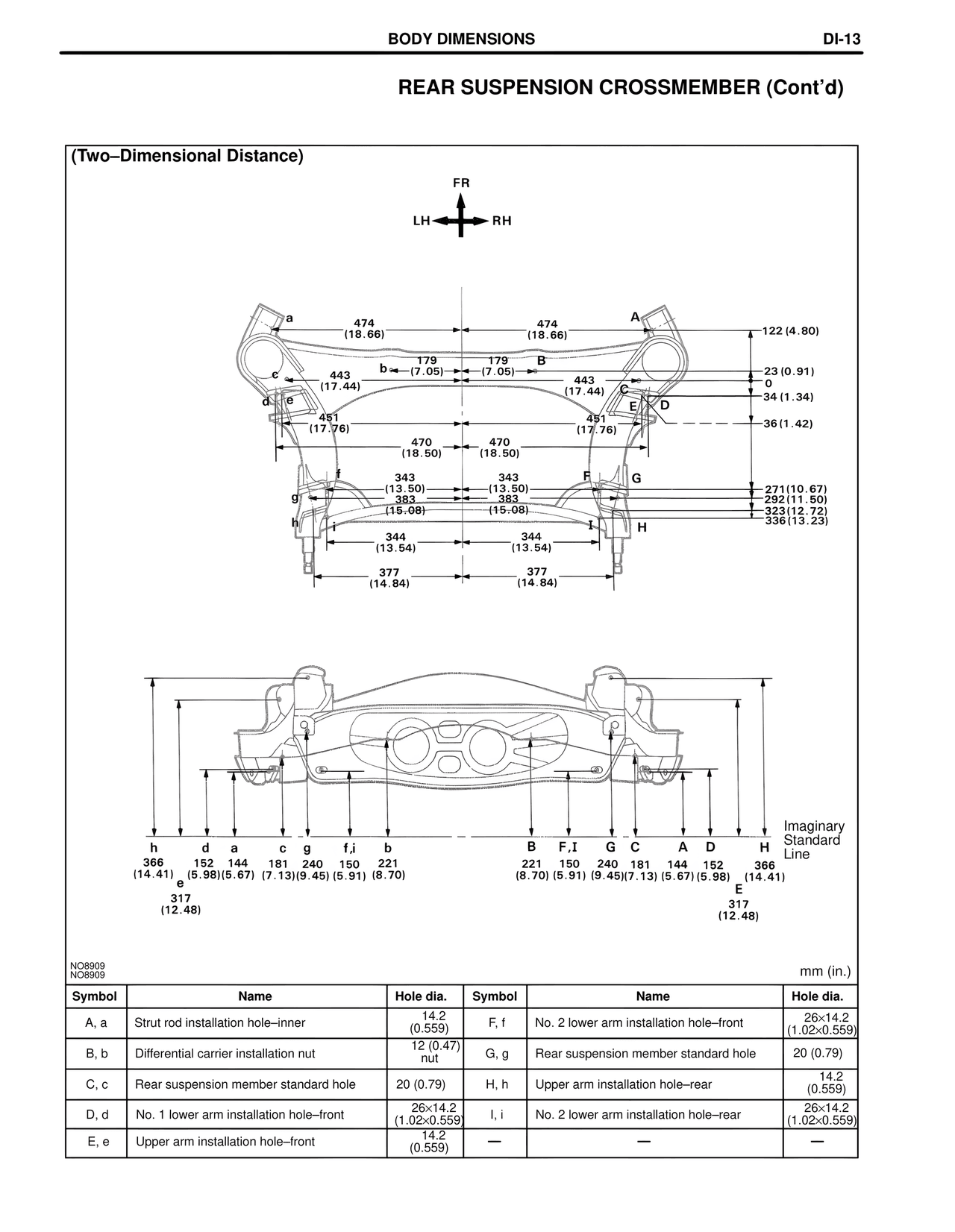

REAR SUSPENSION CROSSMEMBER (Cont'd)
(Two–Dimensional Distance)
FR
LH ◄──► RH
a
474
(18.66)
474
(18.66)
A
122 (4.80)
b
179
(7.05)
179
(7.05)
B
c
443
(17.44)
443
(17.44)
C
23 (0.91)
o
d e
34 (1.34)
E D
451
(17.76)
451
(17.76)
36 (1.42)
f
470
(18.50)
470
(18.50)
g
343
(13.50)
383
(15.08)
343
(13.50)
383
(15.08)
F
G
271(10.67)
292(11.50)
h
323(12.72)
336(13.23)
344
(13.54)
344
(13.54)
H
377
(14.84)
377
(14.84)
h d a c g f,i b B F,I G C A D H
366 152 144 181 240 150 221 221 150 240 181 144 152 366
(14.41) (5.98)(5.67) (7.13)(9.45) (5.91) (8.70) (8.70) (5.91) (9.45)(7.13) (5.67)(5.98) (14.41)
e E
317 317
(12.48) (12.48)
Imaginary
Standard
Line
NO8909
NO8909
mm (in.)
Symbol | Name | Hole dia. | Symbol | Name | Hole dia.
A, a | Strut rod installation hole–inner | 14.2 (0.559) | F, f | No. 2 lower arm installation hole–front | 26×14.2 (1.02×0.559)
B, b | Differential carrier installation nut | 12 (0.47) nut | G, g | Rear suspension member standard hole | 20 (0.79)
C, c | Rear suspension member standard hole | 20 (0.79) | H, h | Upper arm installation hole–rear | 14.2 (0.559)
D, d | No. 1 lower arm installation hole–front | 26×14.2 (1.02×0.559) | I, i | No. 2 lower arm installation hole–rear | 26×14.2 (1.02×0.559)
E, e | Upper arm installation hole–front | 14.2 (0.559) | — | — | —
