IN-14 INTRODUCTION

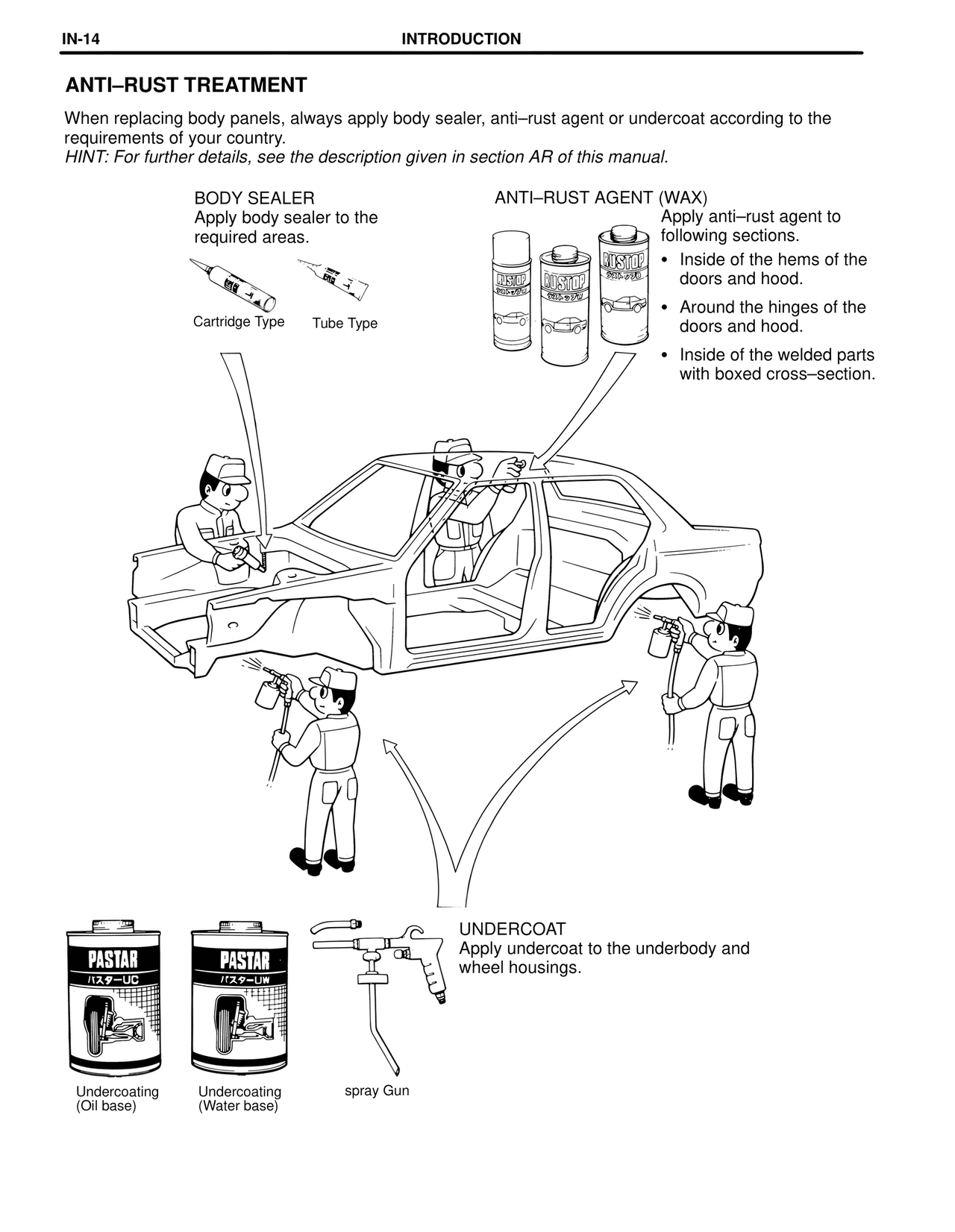

ANTI–RUST TREATMENT
When replacing body panels, always apply body sealer, anti–rust agent or undercoat according to the
requirements of your country.
HINT: For further details, see the description given in section AR of this manual.
BODY SEALER
Apply body sealer to the
required areas.
Cartridge Type Tube Type
ANTI–RUST AGENT (WAX)
Apply anti–rust agent to
following sections.
• Inside of the hems of the
doors and hood.
• Around the hinges of the
doors and hood.
• Inside of the welded parts
with boxed cross–section.
UNDERCOAT
Apply undercoat to the underbody and
wheel housings.
Undercoating
(Oil base)
Undercoating
(Water base)
spray Gun
