INTRODUCTION                                                        IN-15

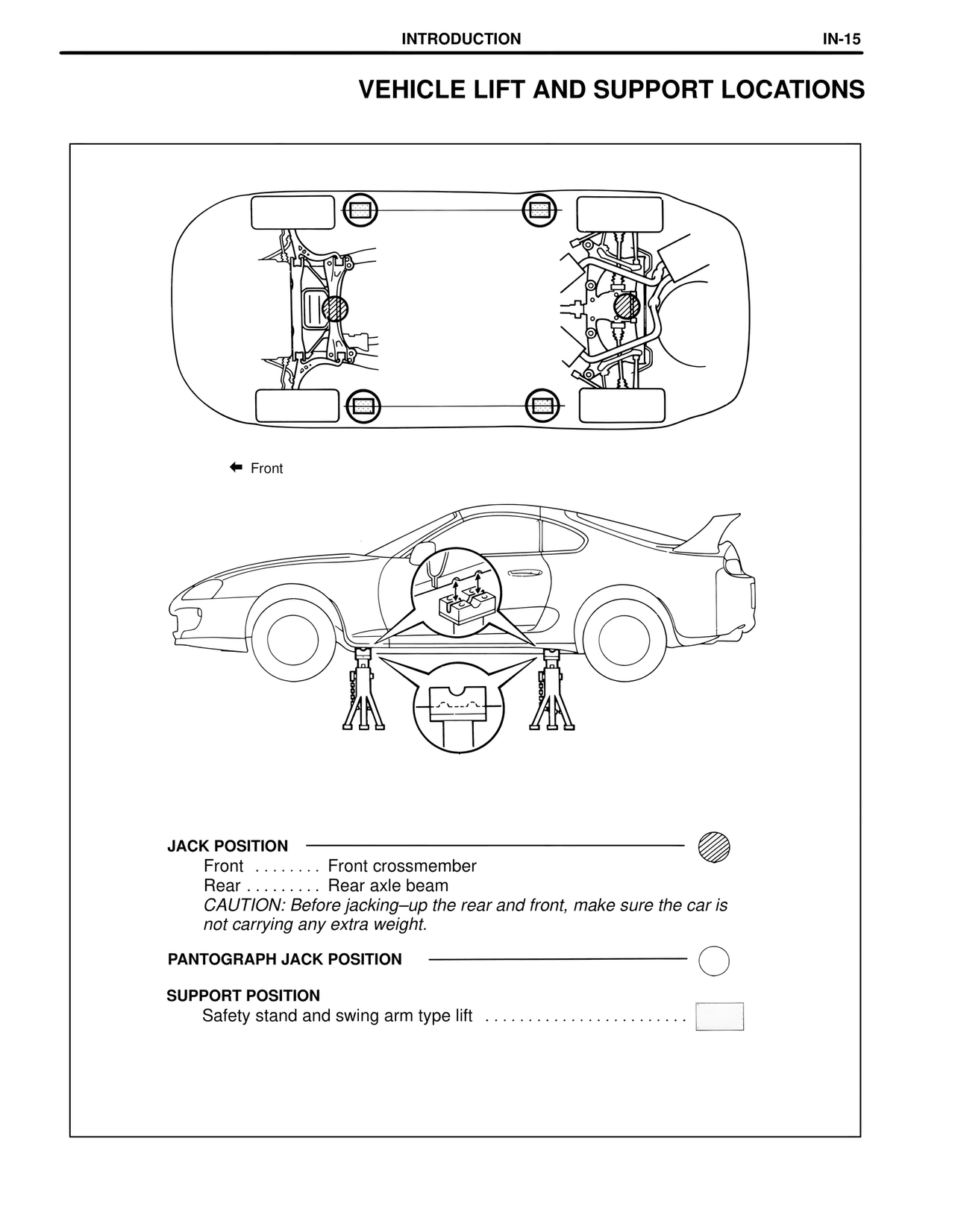

VEHICLE LIFT AND SUPPORT LOCATIONS

← Front

JACK POSITION
    Front . . . . . . . . Front crossmember
    Rear . . . . . . . . . Rear axle beam
    CAUTION: Before jacking–up the rear and front, make sure the car is
    not carrying any extra weight.

PANTOGRAPH JACK POSITION

SUPPORT POSITION
    Safety stand and swing arm type lift . . . . . . . . . . . . . . . . . . . . .
