← p.024
CR
/
Collision Repair
25 / 113
p.026 →
−
100%
+

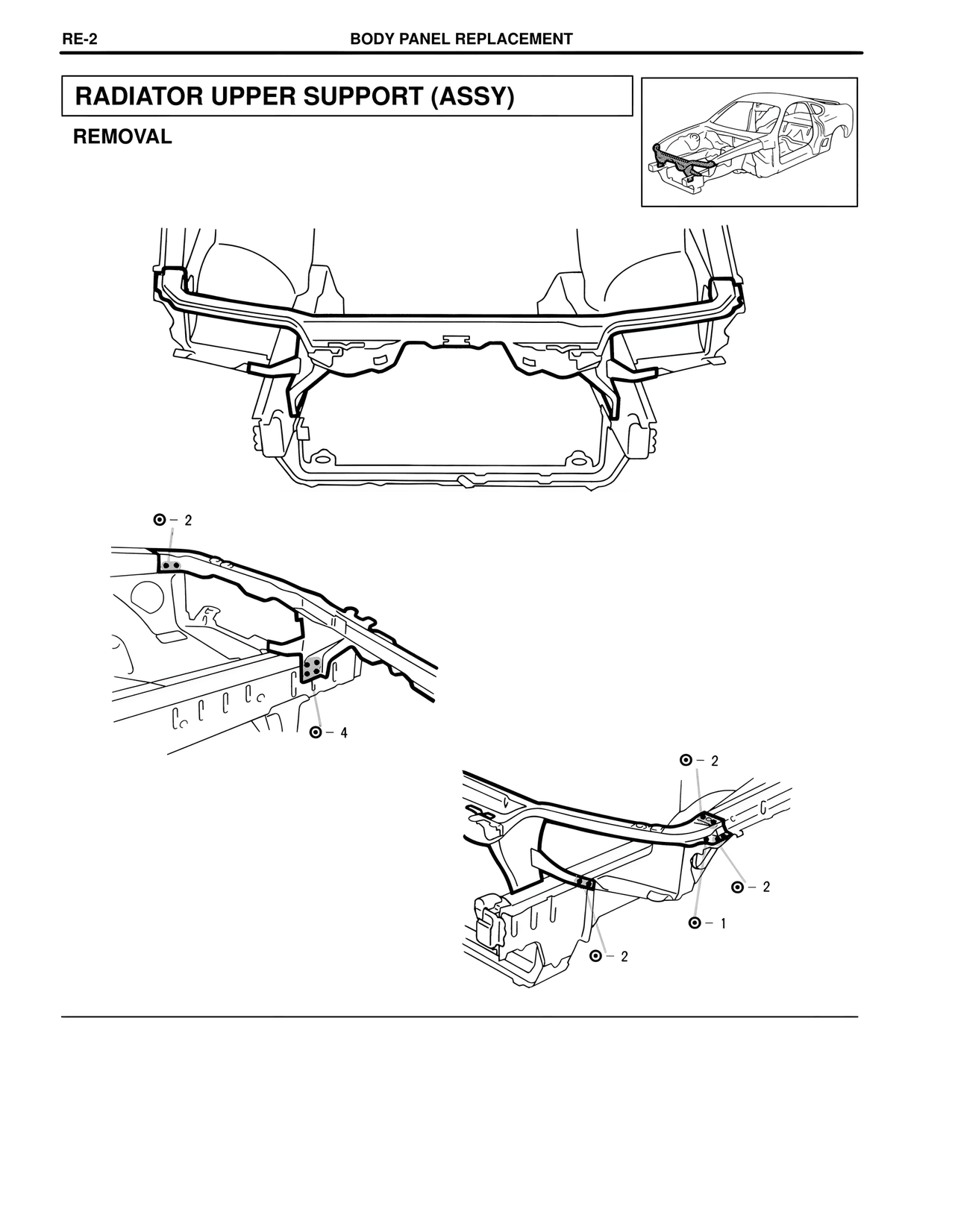

RE-2 BODY PANEL REPLACEMENT RADIATOR UPPER SUPPORT (ASSY) REMOVAL ⊙ - 2 ⊙ - 4 ⊙ - 2 ⊙ - 2 ⊙ - 1 ⊙ - 2
