BODY PANEL REPLACEMENT
RE-3

INSTALLATION

⊙ - 3

⊙ - 4

⊙ - 3

⊙ - 3
⊙ - 1
⊙ - 2

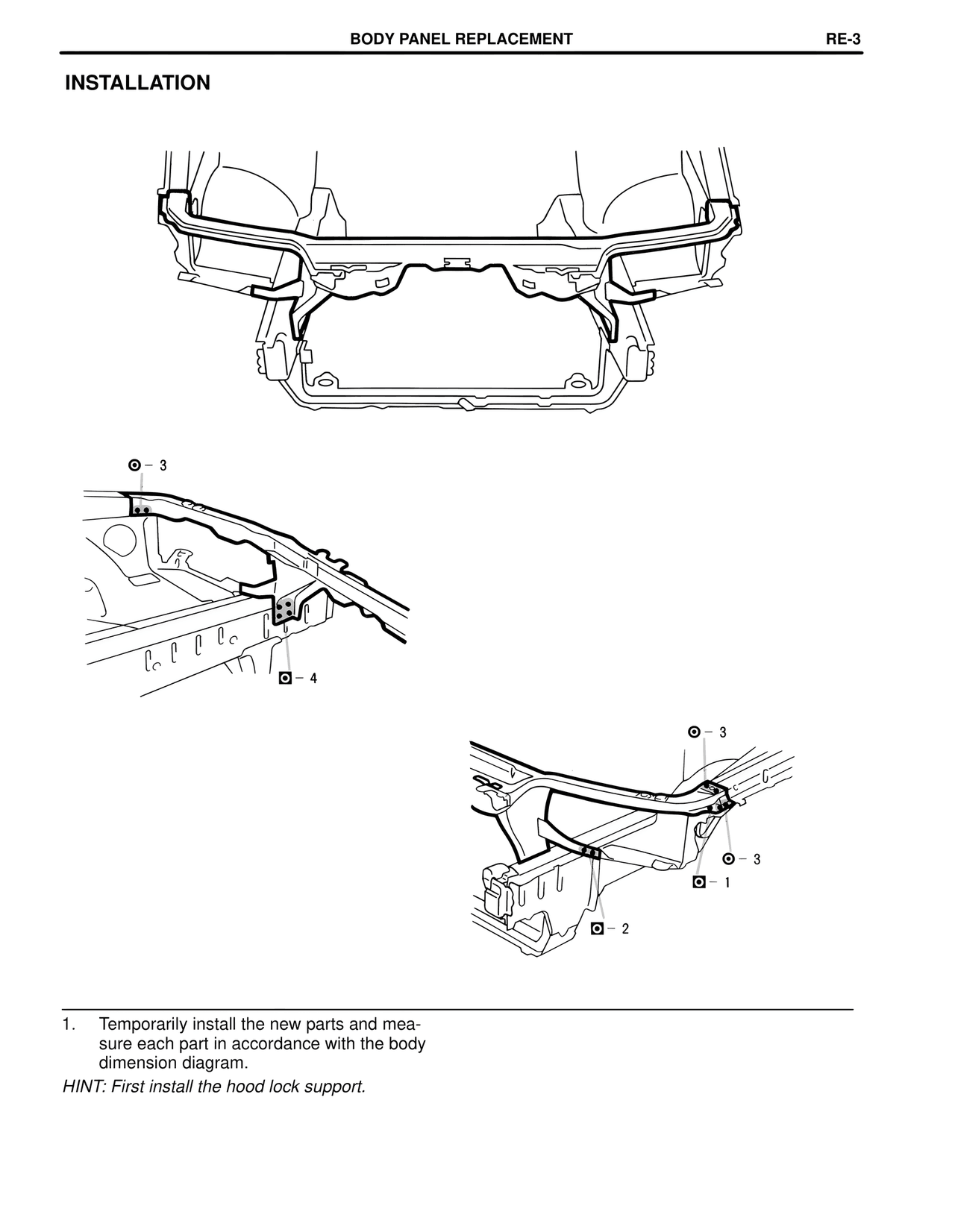

1. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.
HINT: First install the hood lock support.
