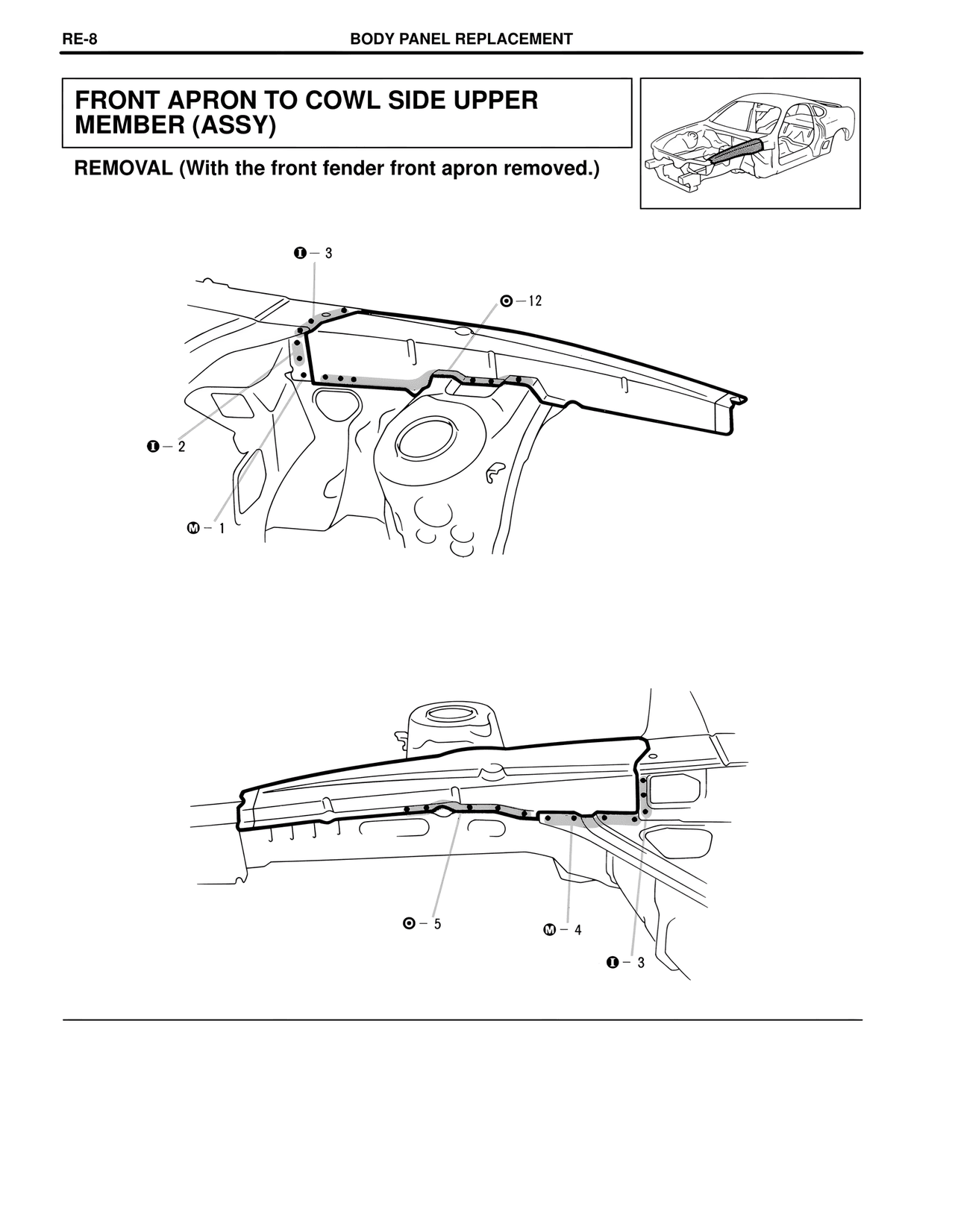

FRONT APRON TO COWL SIDE UPPER MEMBER (ASSY) — MK4 Supra Collision Repair, page 29
100%
RE-8 BODY PANEL REPLACEMENT FRONT APRON TO COWL SIDE UPPER MEMBER (ASSY) REMOVAL (With the front fender front apron removed.) ❶ - 3 ⊙ - 12 ❶ - 2 Ⓜ - 1 ⊙ - 5 Ⓜ - 4 ❶ - 3
