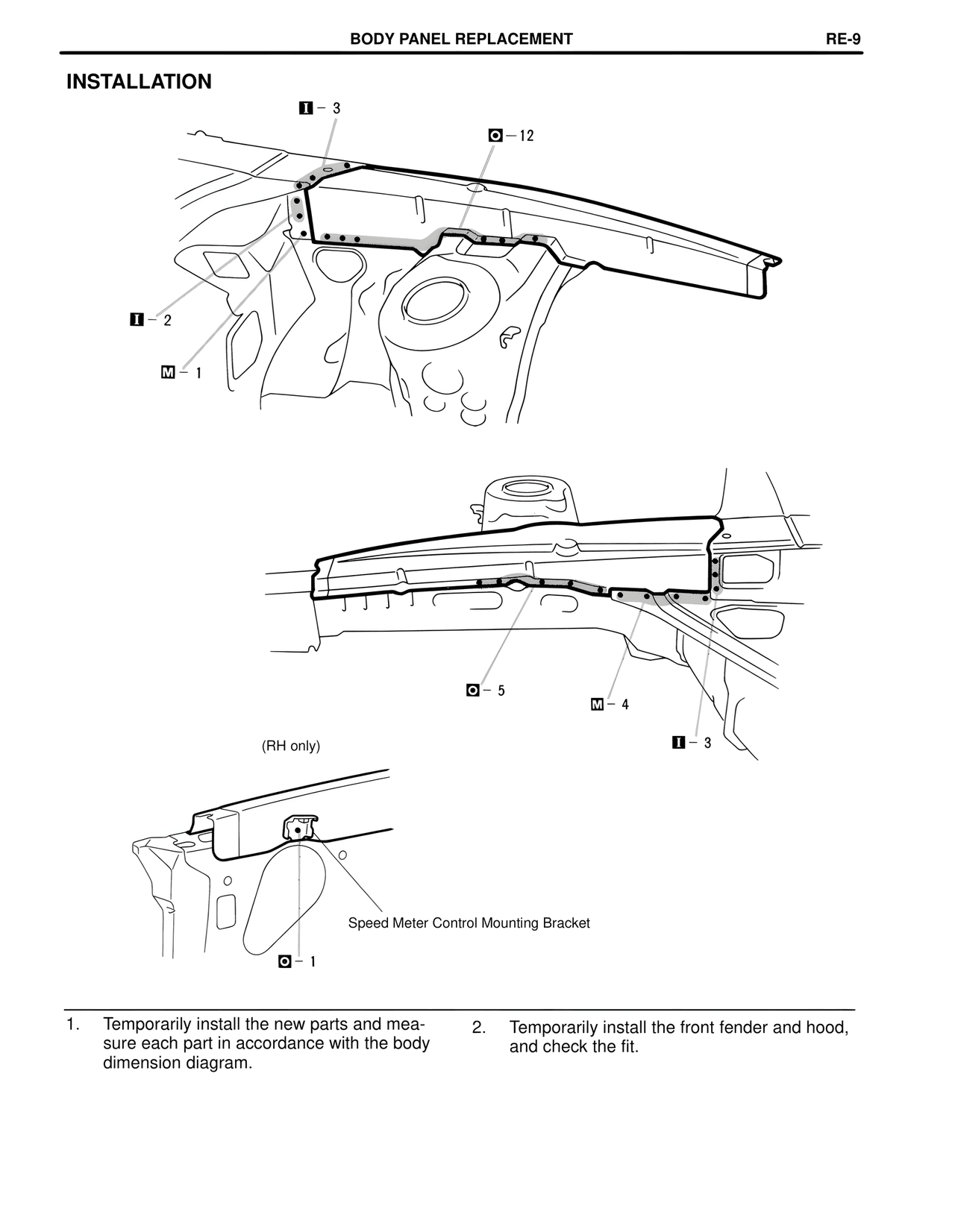

BODY PANEL REPLACEMENT
INSTALLATION
I - 3
O - 12
I - 2
M - 1
O - 5
M - 4
I - 3
(RH only)
Speed Meter Control Mounting Bracket
O - 1
1. Temporarily install the new parts and measure each part in accordance with the body dimension diagram.
2. Temporarily install the front fender and hood, and check the fit.
RE-9
