RE-6                    BODY PANEL REPLACEMENT

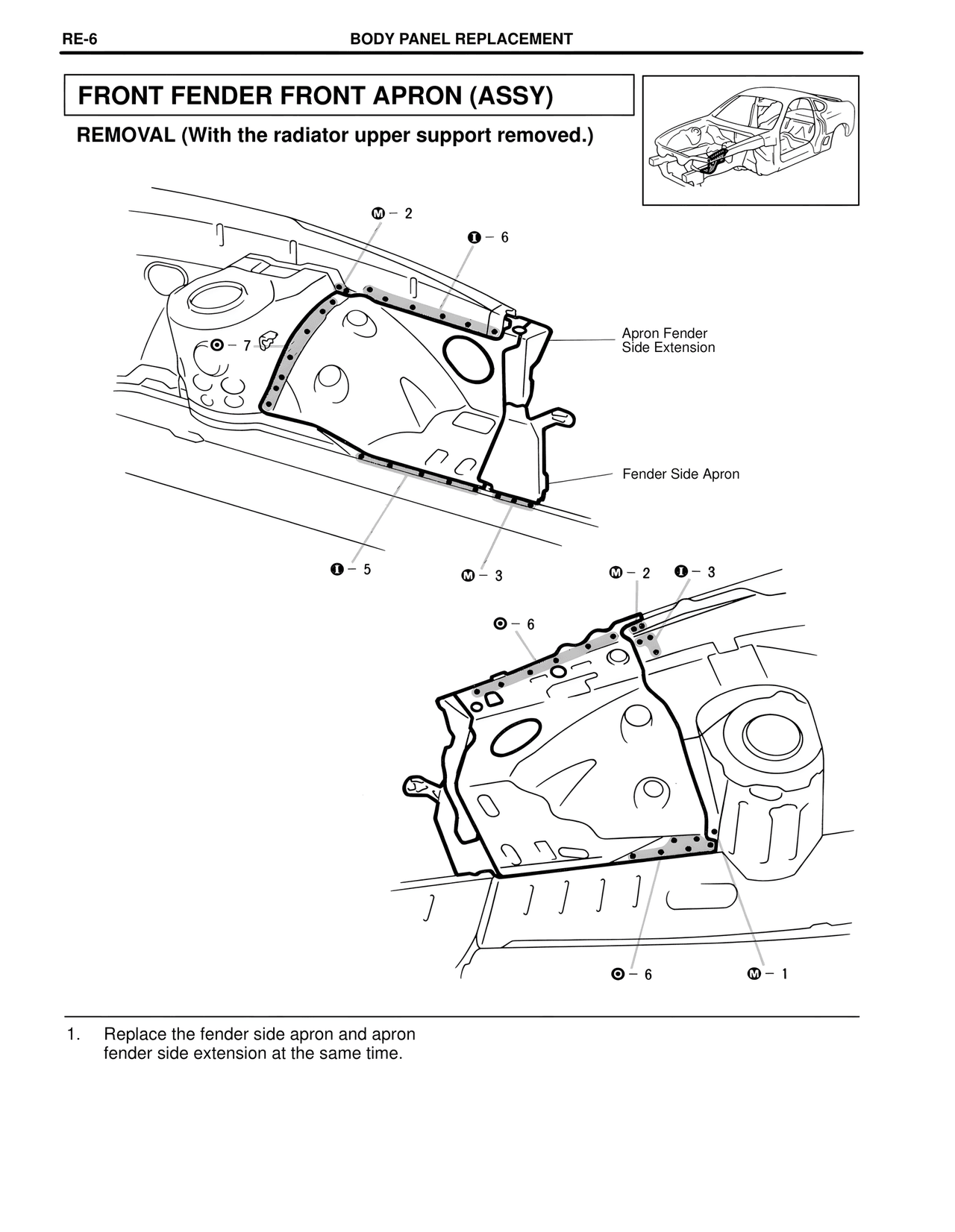

FRONT FENDER FRONT APRON (ASSY)

REMOVAL (With the radiator upper support removed.)

M - 2
O - 6
O - 7

Apron Fender
Side Extension

Fender Side Apron

O - 5          M - 3          M - 2     O - 3

O - 6

O - 6          M - 1

1.    Replace the fender side apron and apron
      fender side extension at the same time.
