IN-4 INTRODUCTION

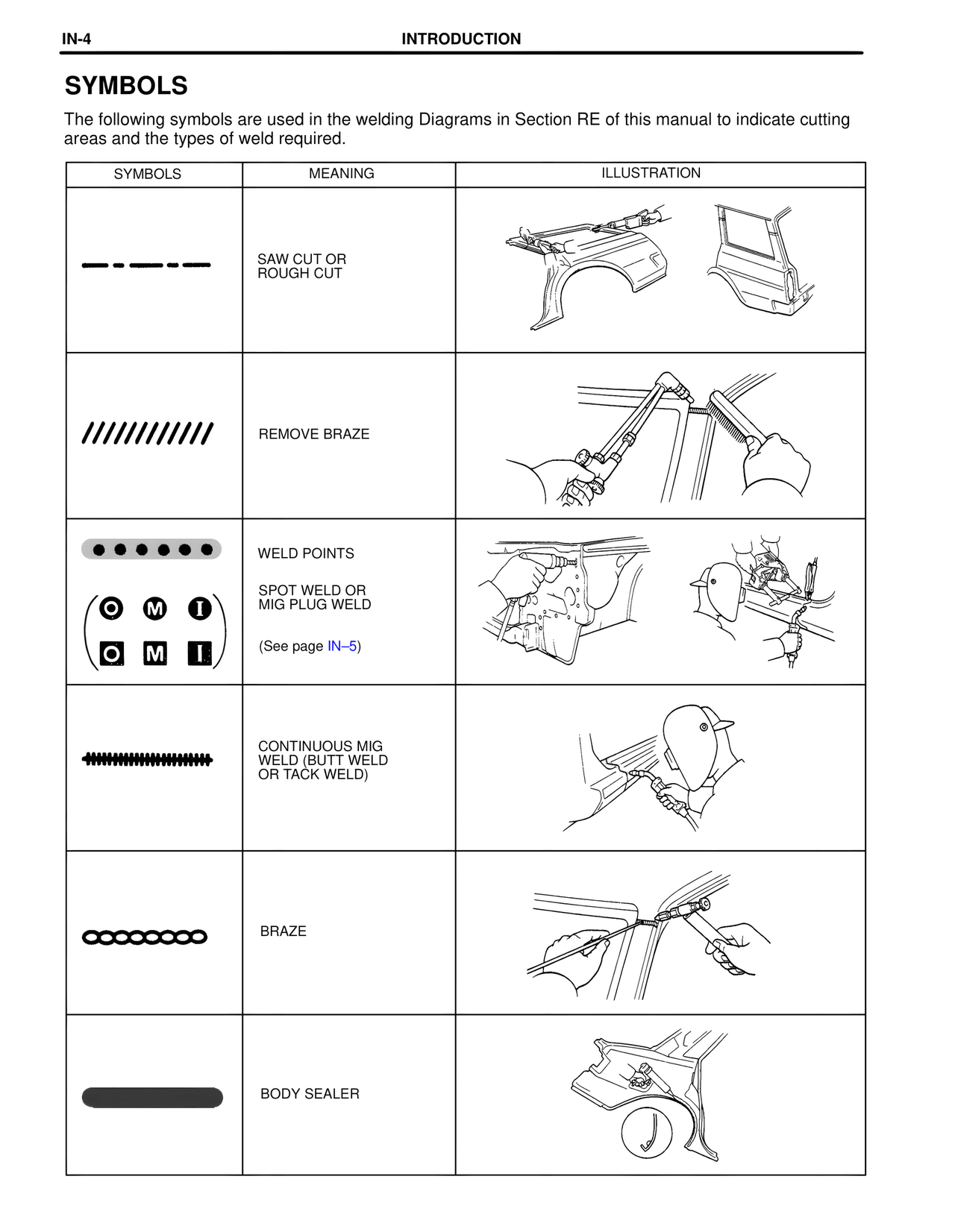

SYMBOLS
The following symbols are used in the welding Diagrams in Section RE of this manual to indicate cutting areas and the types of weld required.
SYMBOLS MEANING ILLUSTRATION
— — — — SAW CUT OR
ROUGH CUT
//////////// REMOVE BRAZE
● ● ● ● ● ● WELD POINTS
O M I SPOT WELD OR
O M I MIG PLUG WELD
(See page IN–5)
◄HHHHHHHHHHHH► CONTINUOUS MIG
WELD (BUTT WELD
OR TACK WELD)
oooooooo BRAZE
█████████ BODY SEALER
