INTRODUCTION
IN-5

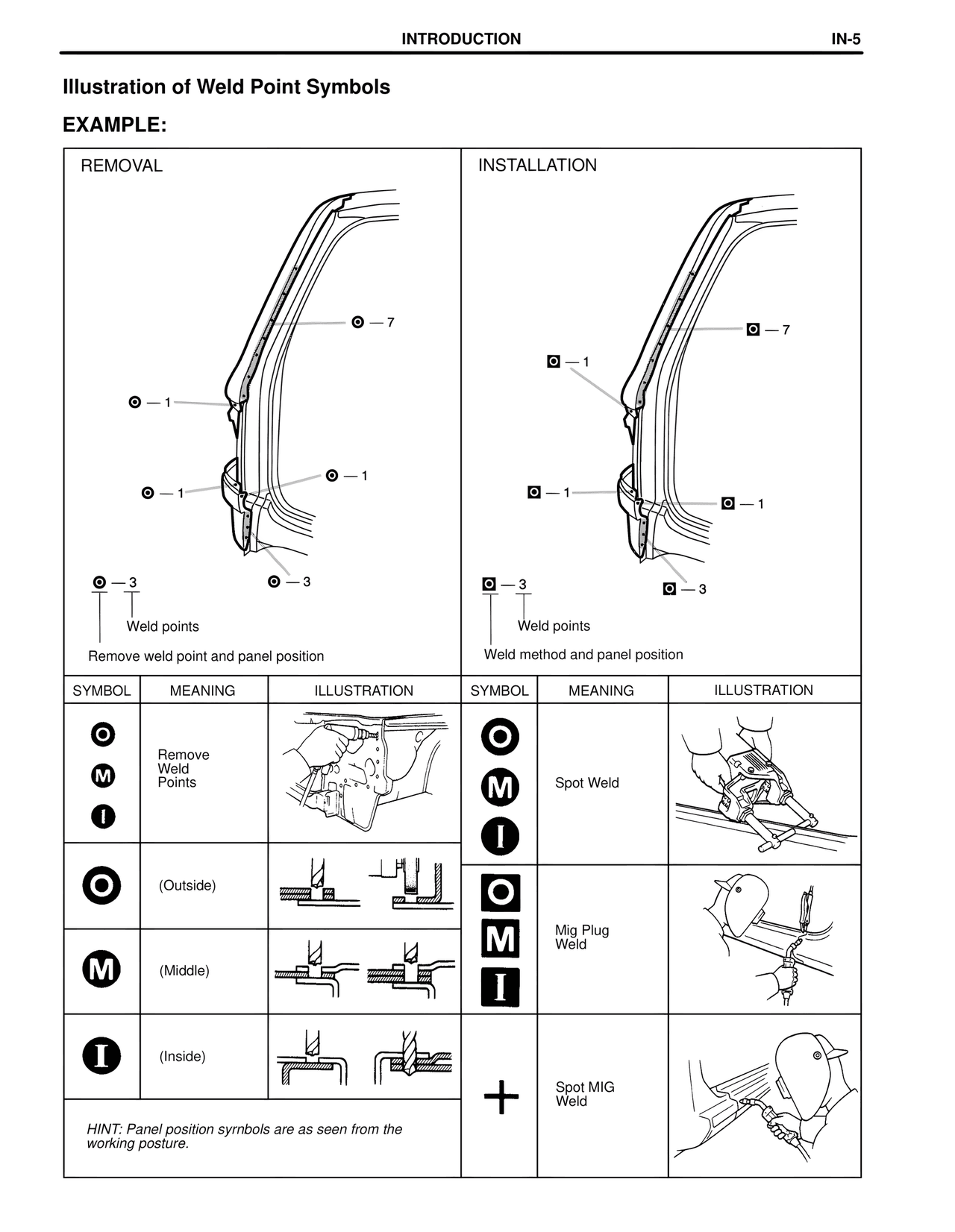

Illustration of Weld Point Symbols

EXAMPLE:

REMOVAL
INSTALLATION

Ⓞ — 7
Ⓞ — 7

Ⓞ — 1
Ⓞ — 1

Ⓞ — 1
Ⓞ — 1
Ⓞ — 1

Ⓞ — 3
Ⓞ — 3
Ⓞ — 3
Ⓞ — 3

Weld points
Weld points

Remove weld point and panel position
Weld method and panel position

SYMBOL | MEANING | ILLUSTRATION | SYMBOL | MEANING | ILLUSTRATION

Ⓞ
ⓜ
ⓘ
Remove Weld Points
[illustration of removal tool]
Ⓞ
ⓜ
ⓘ
Spot Weld
[illustration of spot weld tool]

Ⓞ (Outside)
[illustration of outside panel position]
Ⓞ
ⓜ
ⓘ
Mig Plug Weld
[illustration of mig plug weld tool]

ⓜ (Middle)
[illustration of middle panel position]

ⓘ (Inside)
[illustration of inside panel position]
+
Spot MIG Weld
[illustration of spot mig weld tool]

HINT: Panel position symbols are as seen from the working posture.
