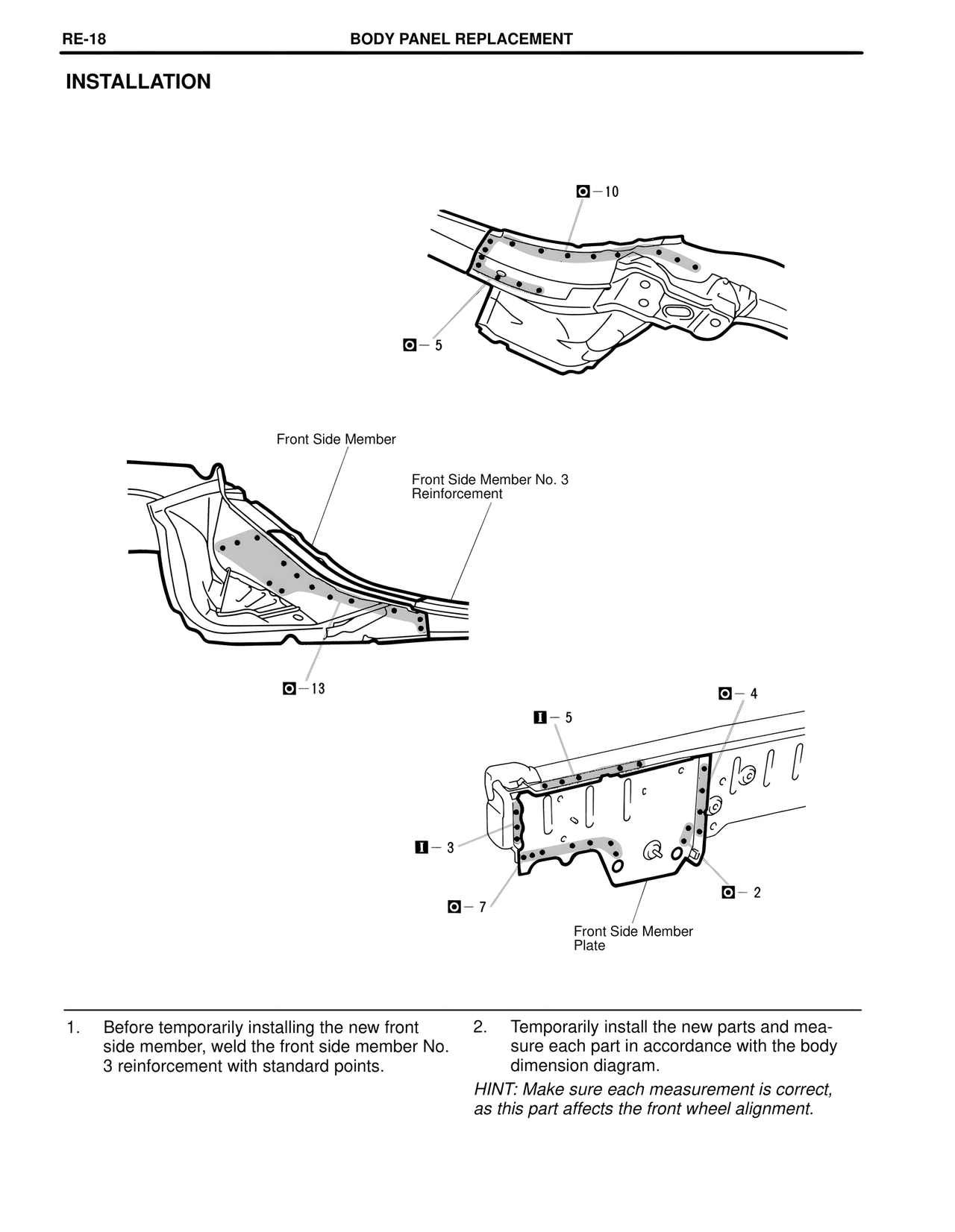

RE-18 BODY PANEL REPLACEMENT
INSTALLATION
O-10
O-5
Front Side Member
Front Side Member No. 3
Reinforcement
O-13
O-4
I-5
I-3
O-7
O-2
Front Side Member
Plate
1. Before temporarily installing the new front
side member, weld the front side member No.
3 reinforcement with standard points.
2. Temporarily install the new parts and mea-
sure each part in accordance with the body
dimension diagram.
HINT: Make sure each measurement is correct,
as this part affects the front wheel alignment.
