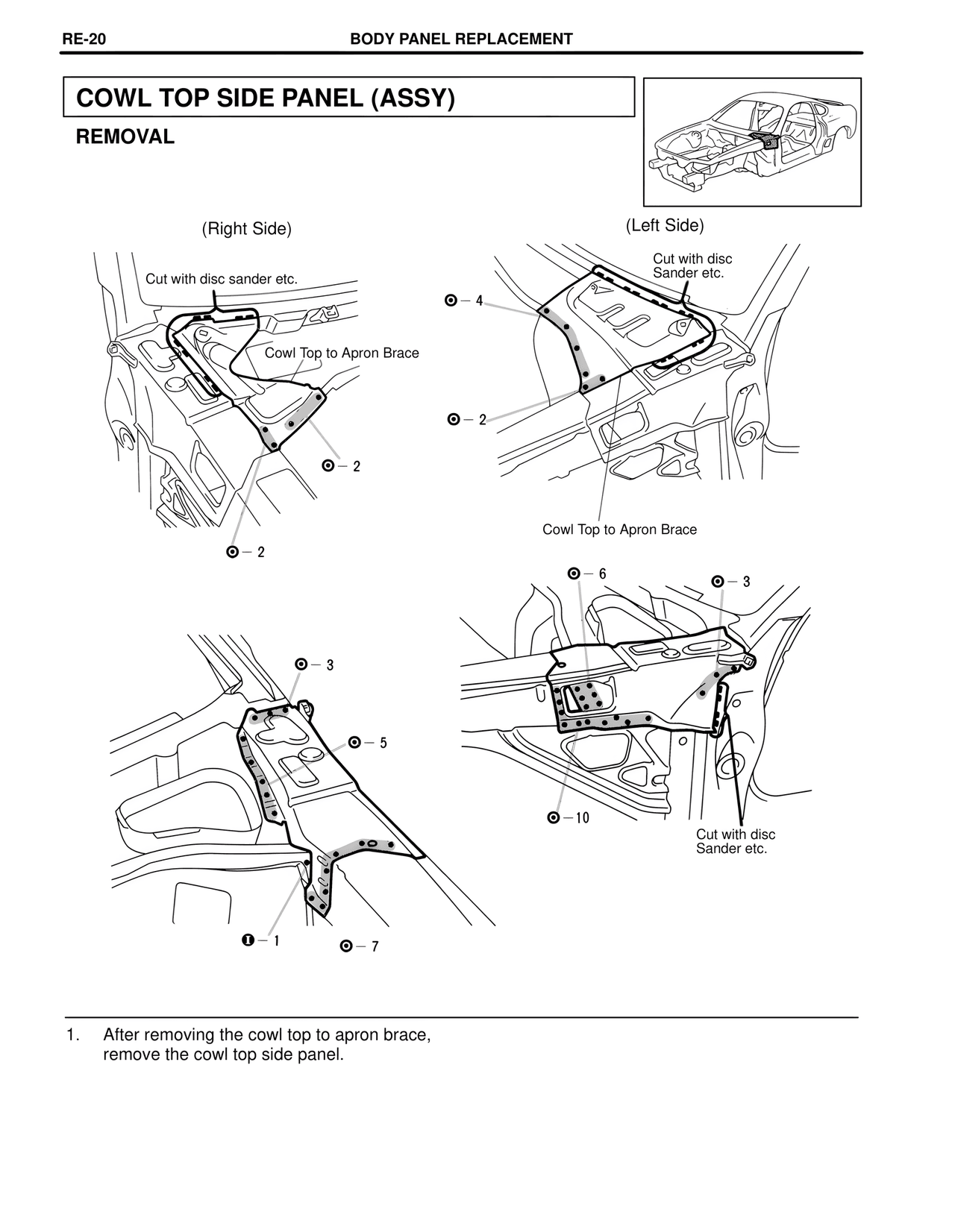

RE-20                    BODY PANEL REPLACEMENT

COWL TOP SIDE PANEL (ASSY)

REMOVAL

(Right Side)

Cut with disc sander etc.

Cowl Top to Apron Brace

⊙ - 2

⊙ - 2

⊙ - 3

⊙ - 5

● - 1          ⊙ - 7

(Left Side)

Cut with disc
Sander etc.

⊙ - 4

⊙ - 2

Cowl Top to Apron Brace

⊙ - 6          ⊙ - 3

⊙ - 10

Cut with disc
Sander etc.

1.    After removing the cowl top to apron brace,
      remove the cowl top side panel.
