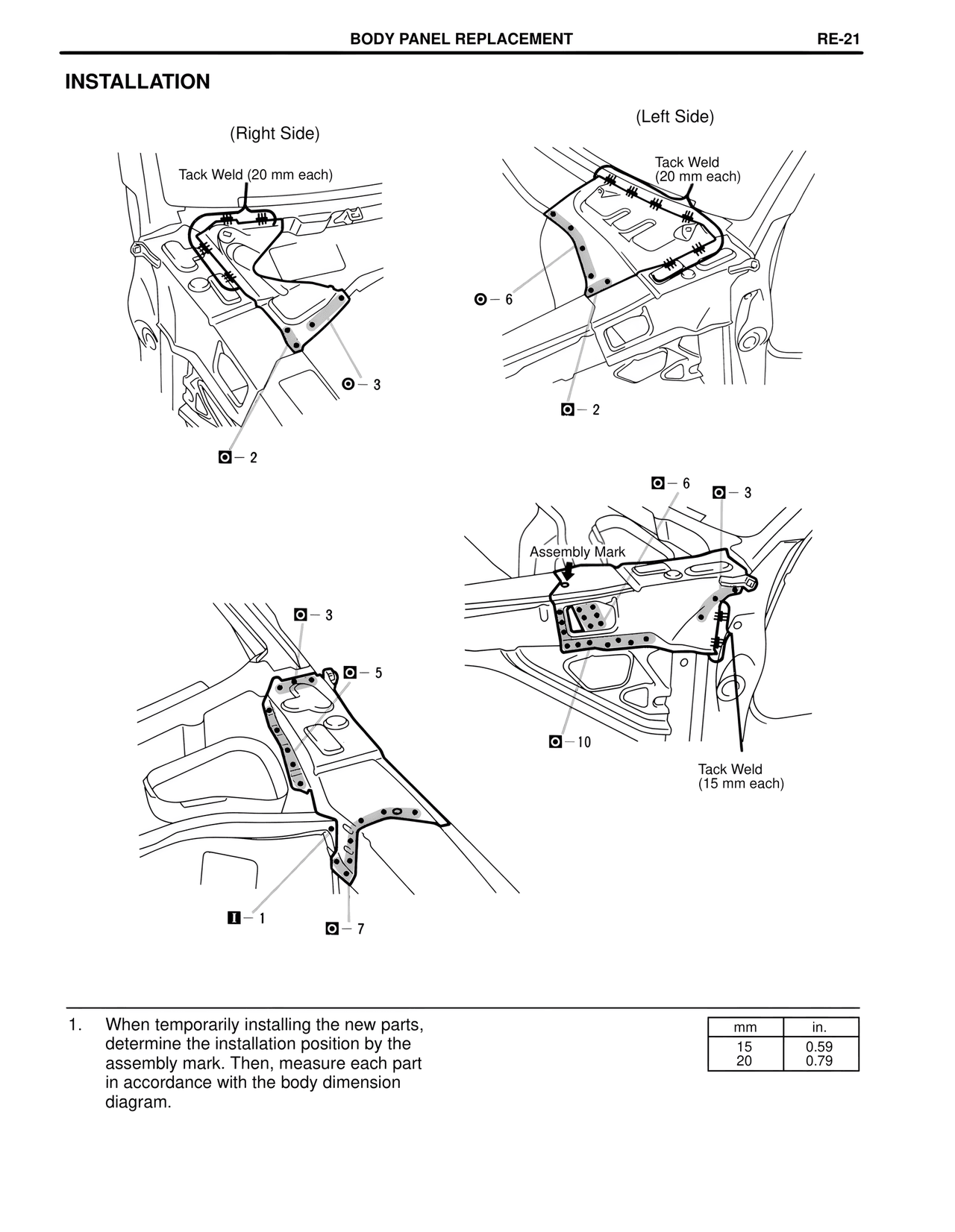

BODY PANEL REPLACEMENT RE-21 INSTALLATION (Right Side) Tack Weld (20 mm each) ⊙ — 3 ⊙ — 2 (Left Side) Tack Weld (20 mm each) ⊙ — 6 ⊙ — 2 ⊙ — 6 ⊙ — 3 Assembly Mark ⊙ — 10 Tack Weld (15 mm each) ⊙ — 3 ⊙ ⊙ — 5 ■ — 1 ⊙ — 7 1. When temporarily installing the new parts, determine the installation position by the assembly mark. Then, measure each part in accordance with the body dimension diagram. mm in. 15 0.59 20 0.79
