RE-22                    BODY PANEL REPLACEMENT

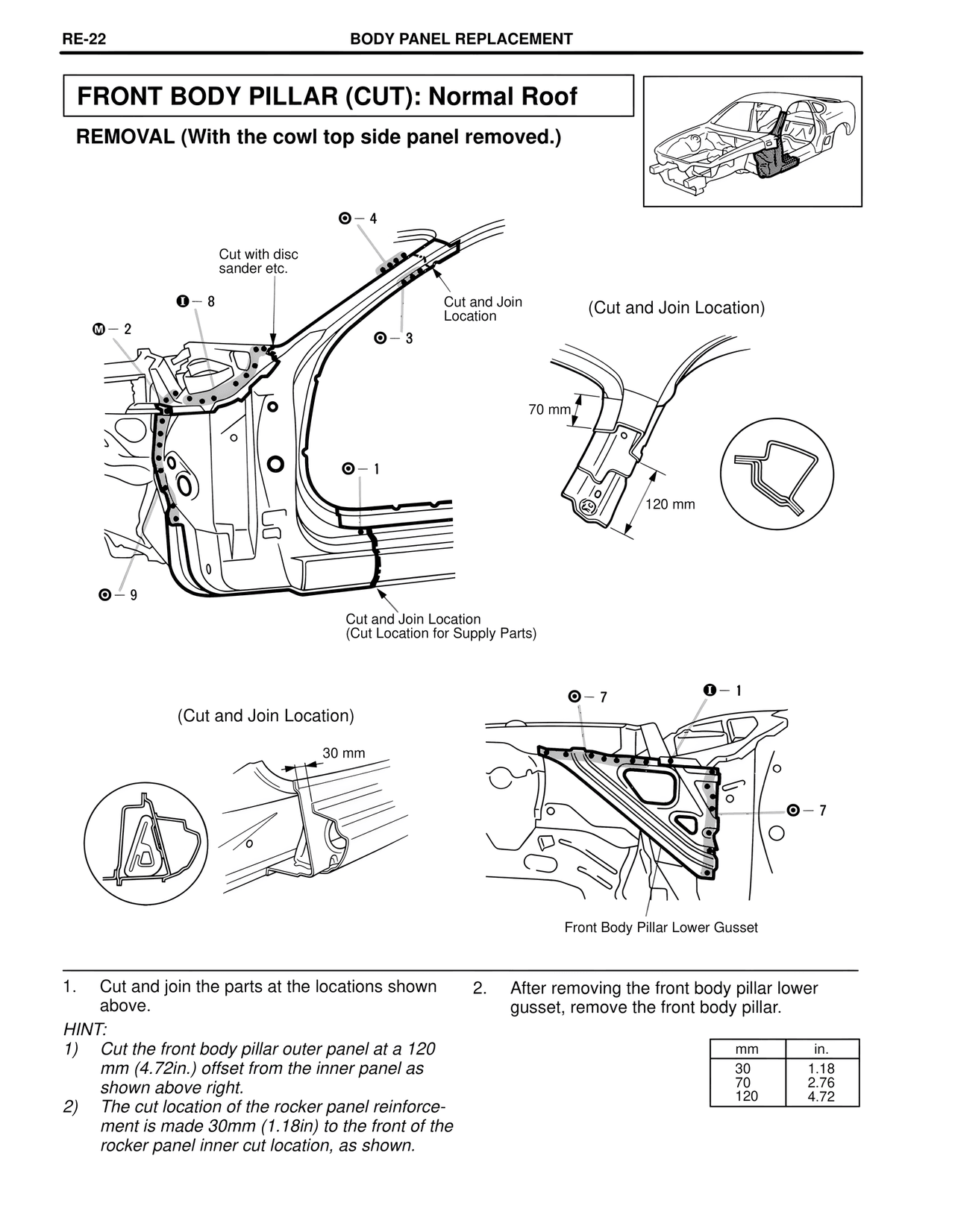

FRONT BODY PILLAR (CUT): Normal Roof

REMOVAL (With the cowl top side panel removed.)

Cut with disc
sander etc.

Cut and Join
Location

(Cut and Join Location)

70 mm

120 mm

Cut and Join Location
(Cut Location for Supply Parts)

(Cut and Join Location)

30 mm

Front Body Pillar Lower Gusset

1.    Cut and join the parts at the locations shown
      above.

HINT:
1)    Cut the front body pillar outer panel at a 120
      mm (4.72in.) offset from the inner panel as
      shown above right.
2)    The cut location of the rocker panel reinforce-
      ment is made 30mm (1.18in) to the front of the
      rocker panel inner cut location, as shown.

2.    After removing the front body pillar lower
      gusset, remove the front body pillar.

mm      in.
30      1.18
70      2.76
120     4.72
