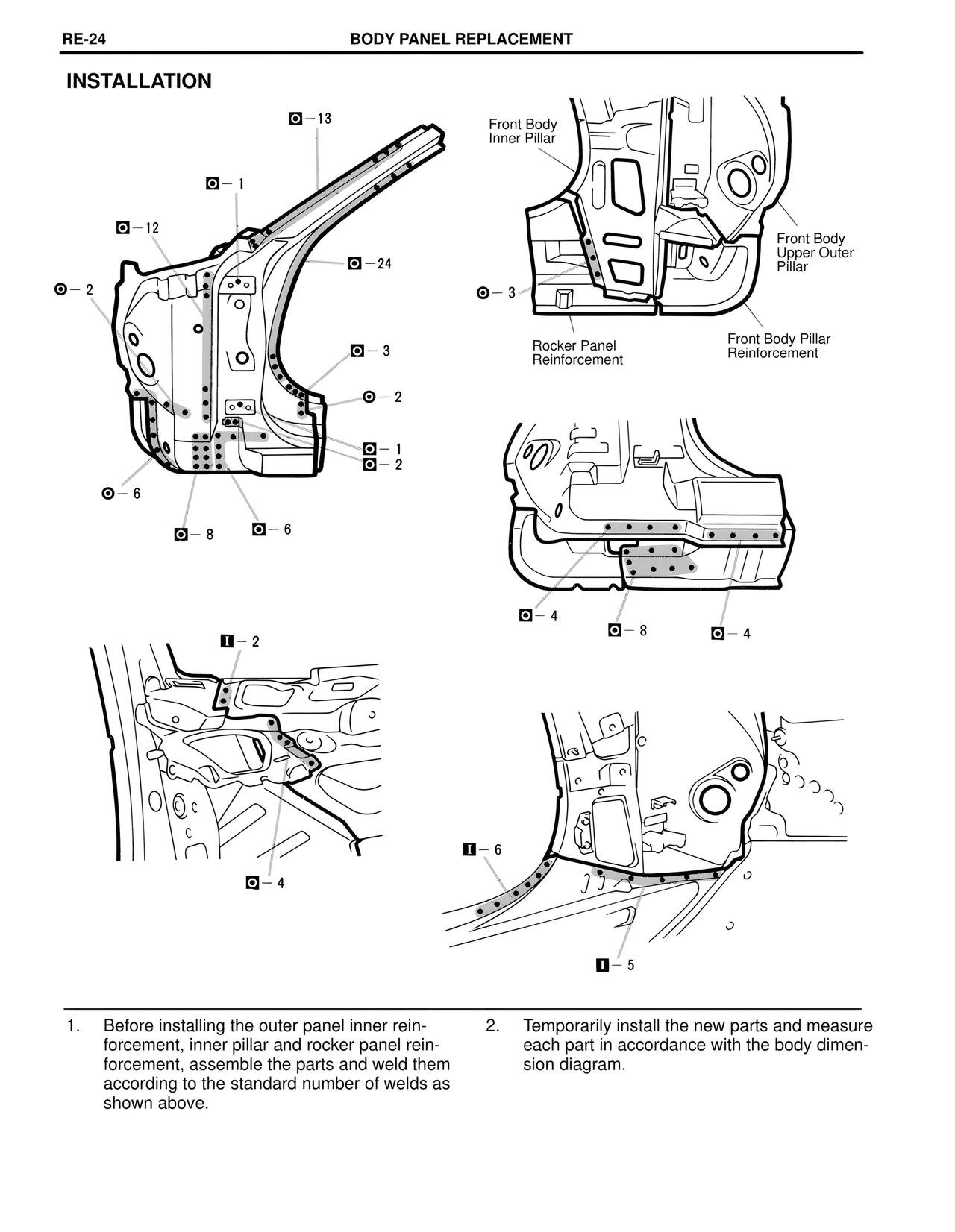

RE-24 BODY PANEL REPLACEMENT
INSTALLATION
⊙-13
⊙-1
⊙-12
⊙-24
⊙-2
⊙-3
⊙-2
⊙-1
⊙-2
⊙-6
⊙-8
⊙-6
Front Body Inner Pillar
Front Body Upper Outer Pillar
Rocker Panel Reinforcement
Front Body Pillar Reinforcement
⊙-3
⊙-4
⊙-8
⊙-4
■-2
⊙-4
■-6
■-5
1. Before installing the outer panel inner rein-
forcement, inner pillar and rocker panel rein-
forcement, assemble the parts and weld them
according to the standard number of welds as
shown above.
2. Temporarily install the new parts and measure
each part in accordance with the body dimen-
sion diagram.
