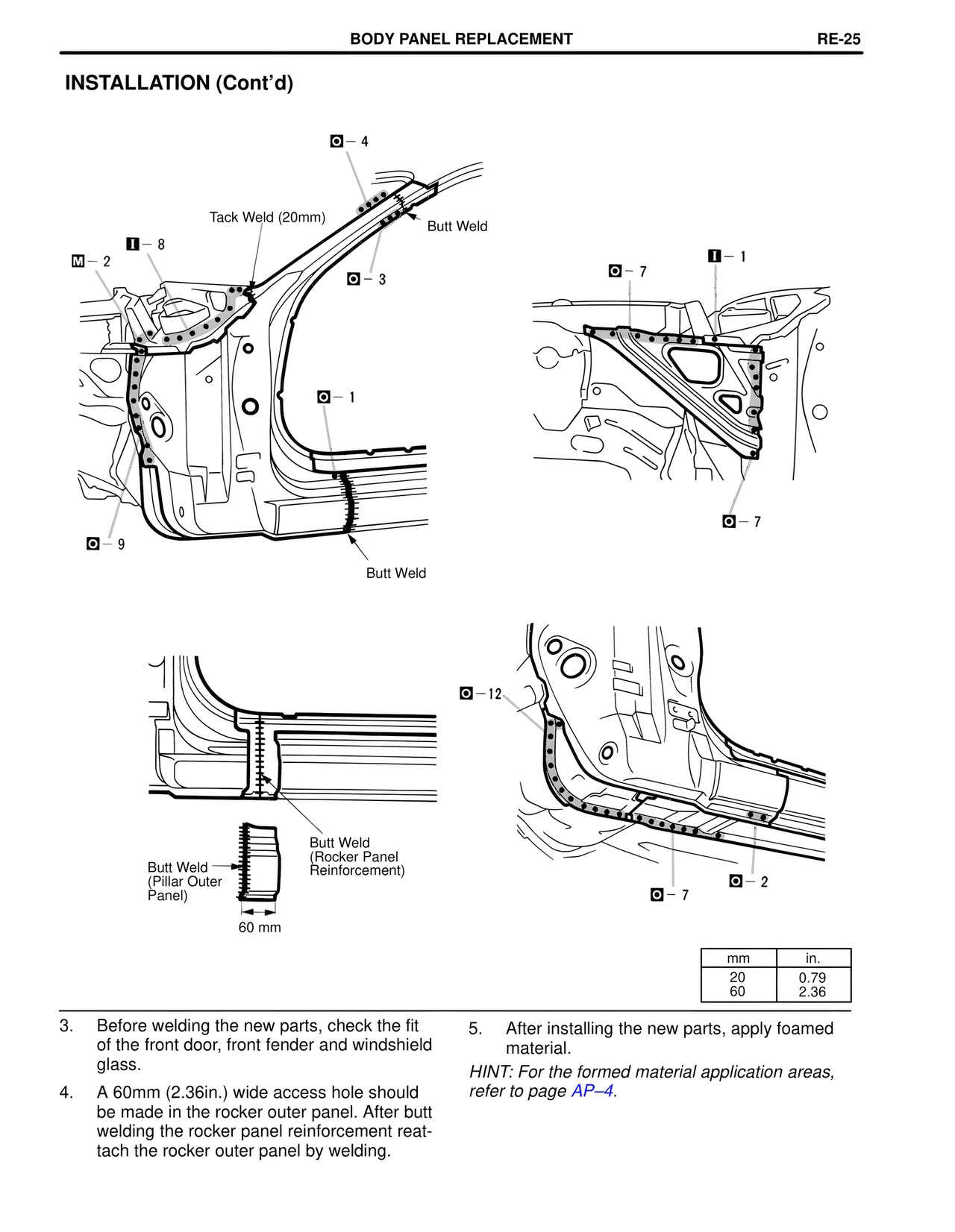

BODY PANEL REPLACEMENT
RE-25
INSTALLATION (Cont'd)
O — 4
Tack Weld (20mm)
Butt Weld
I — 8
M — 2
O — 3
O
O
O — 1
O — 9
Butt Weld
O — 7
I — 1
O
O
O
O — 7
Butt Weld
(Rocker Panel
Reinforcement)
Butt Weld
(Pillar Outer
Panel)
60 mm
O — 12
O
O — 7
O — 2
mm in.
20 0.79
60 2.36
3. Before welding the new parts, check the fit of the front door, front fender and windshield glass.
4. A 60mm (2.36in.) wide access hole should be made in the rocker outer panel. After butt welding the rocker panel reinforcement reattach the rocker outer panel by welding.
5. After installing the new parts, apply foamed material.
HINT: For the formed material application areas, refer to page AP–4.
