RE-28 BODY PANEL REPLACEMENT
INSTALLATION
Front Body
Inner Pillar
O - 13
O - 1
O - 24
Front Body
upper outer
Pillar
O - 3
O - 12
O - 2
Rocker Panel
Reinforcement
Front Body Pillar
Reinforcement
O - 2
O - 1
O - 2
O - 6 O - 8 O - 5
O - 4 O - 8 O - 2
I - 2
I - 6
O - 4
I - 5

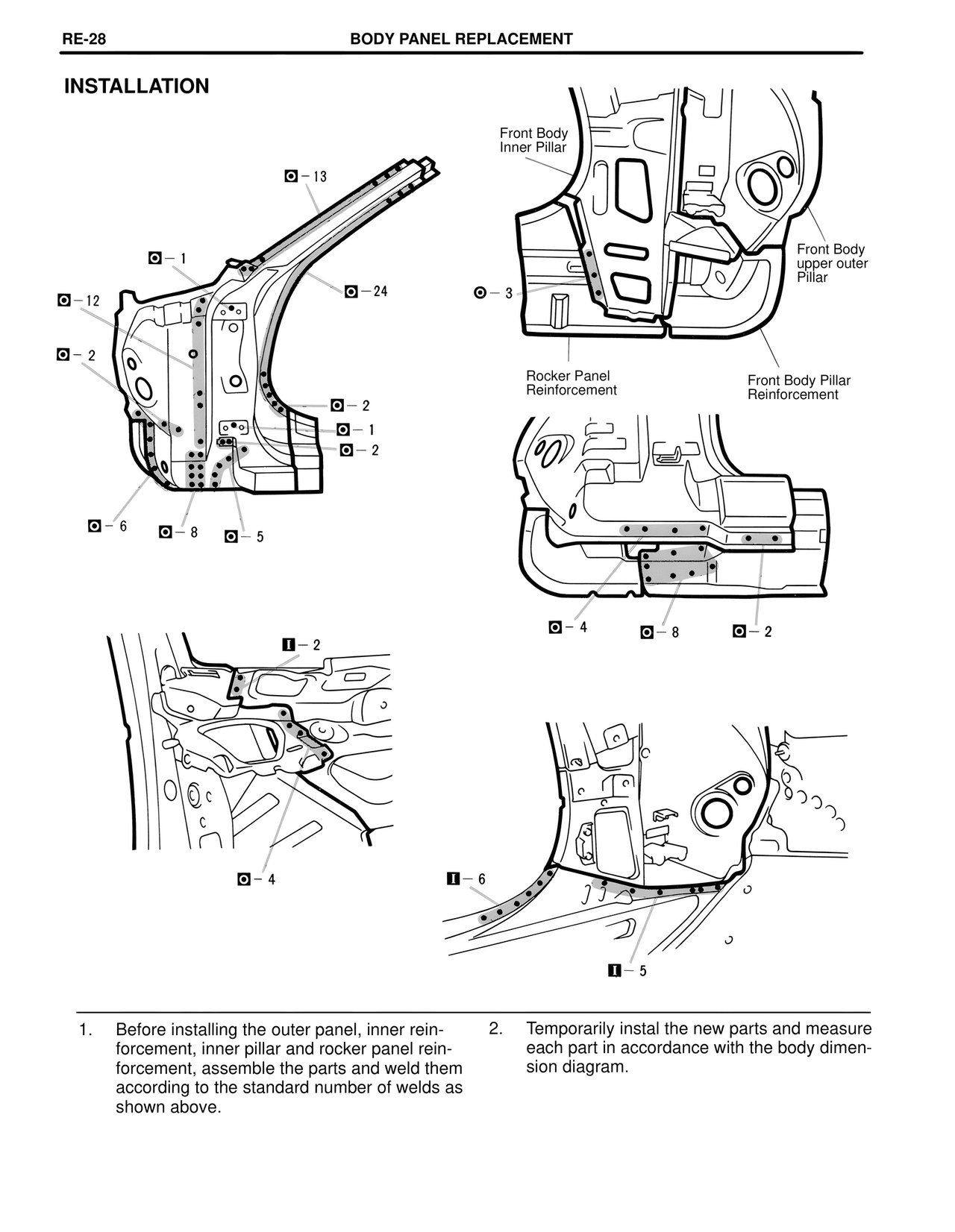

1. Before installing the outer panel, inner rein-
forcement, inner pillar and rocker panel rein-
forcement, assemble the parts and weld them
according to the standard number of welds as
shown above.
2. Temporarily instal the new parts and measure
each part in accordance with the body dimen-
sion diagram.
