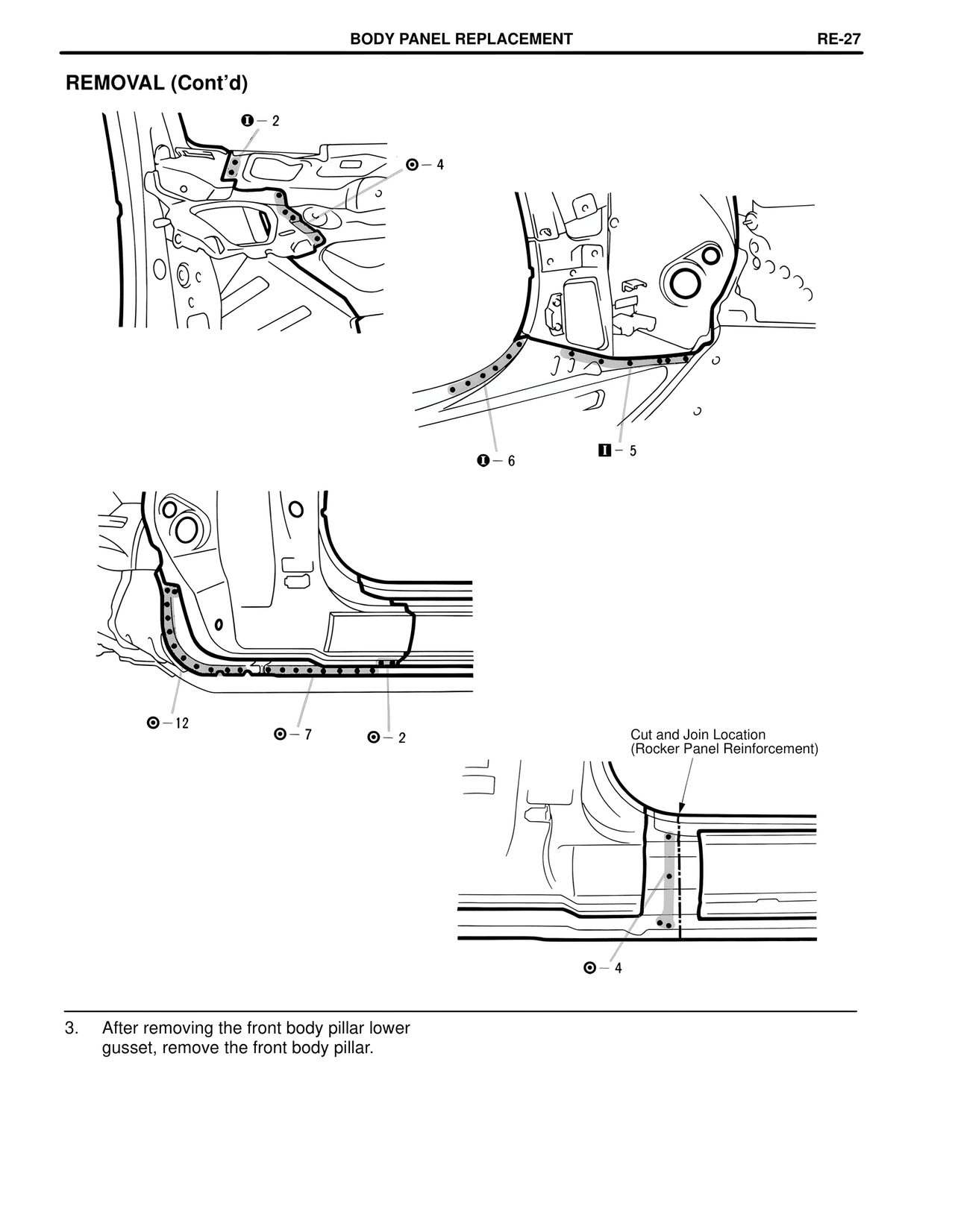

CR/Collision Repair — Removal (Cont'd), page 50

BODY PANEL REPLACEMENT

REMOVAL (Cont'd)

❶ — 2

⊙ — 4

❶ — 6

❑ — 5

⊙ — 12

⊙ — 7

⊙ — 2

Cut and Join Location
(Rocker Panel Reinforcement)

⊙ — 4

3. After removing the front body pillar lower
gusset, remove the front body pillar.
