RE-42                    BODY PANEL REPLACEMENT

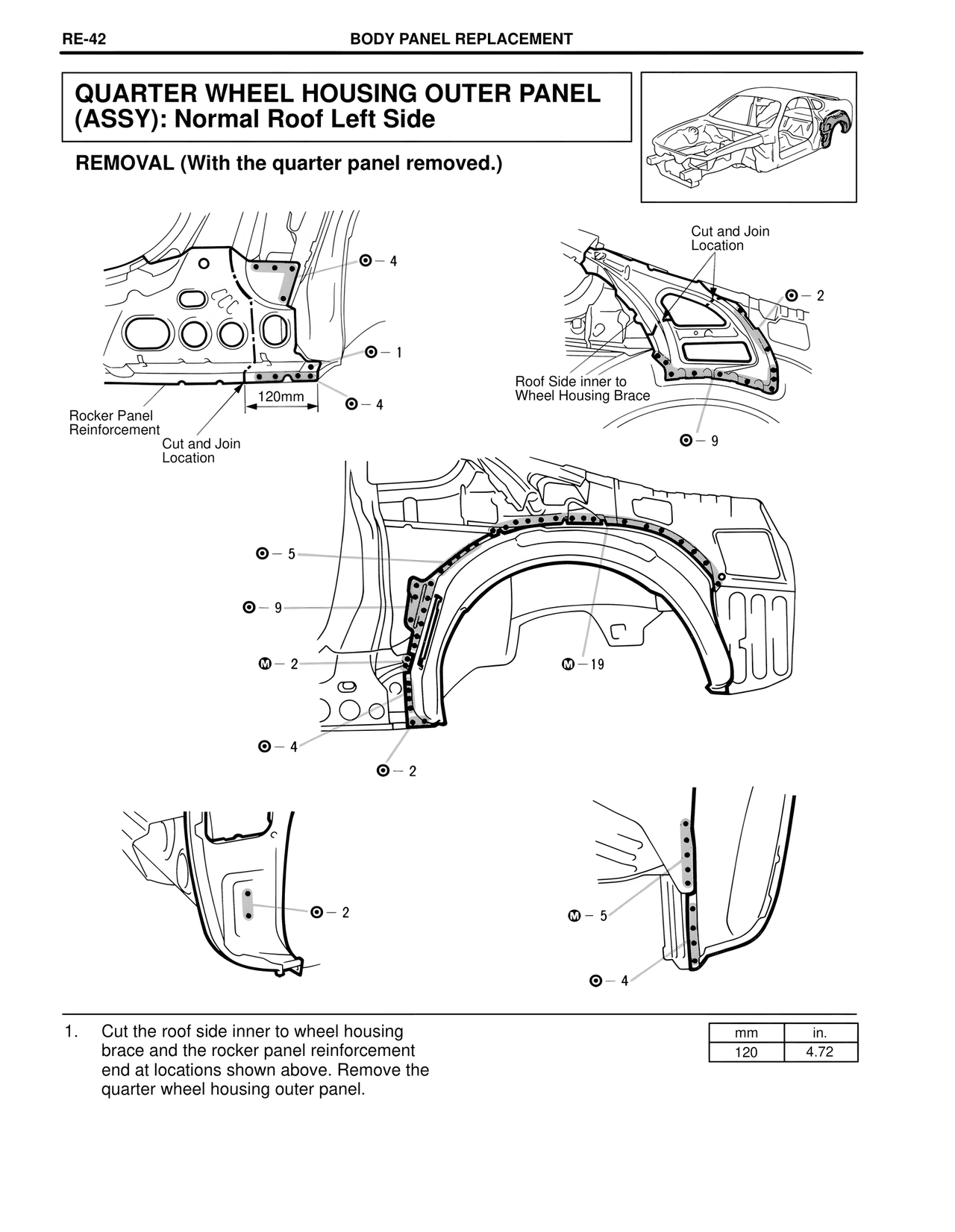

QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Normal Roof Left Side

REMOVAL (With the quarter panel removed.)

Cut and Join
Location

⊙ - 4

⊙ - 2

⊙ - 1

Roof Side inner to
Wheel Housing Brace

120mm

⊙ - 4

⊙ - 9

Rocker Panel
Reinforcement
Cut and Join
Location

⊙ - 5

⊙ - 9

⊙ - 2

⊙ - 19

⊙ - 4

⊙ - 2

⊙ - 2

⊙ - 5

⊙ - 4

1.    Cut the roof side inner to wheel housing
      brace and the rocker panel reinforcement
      end at locations shown above. Remove the
      quarter wheel housing outer panel.

mm        in.
120       4.72
