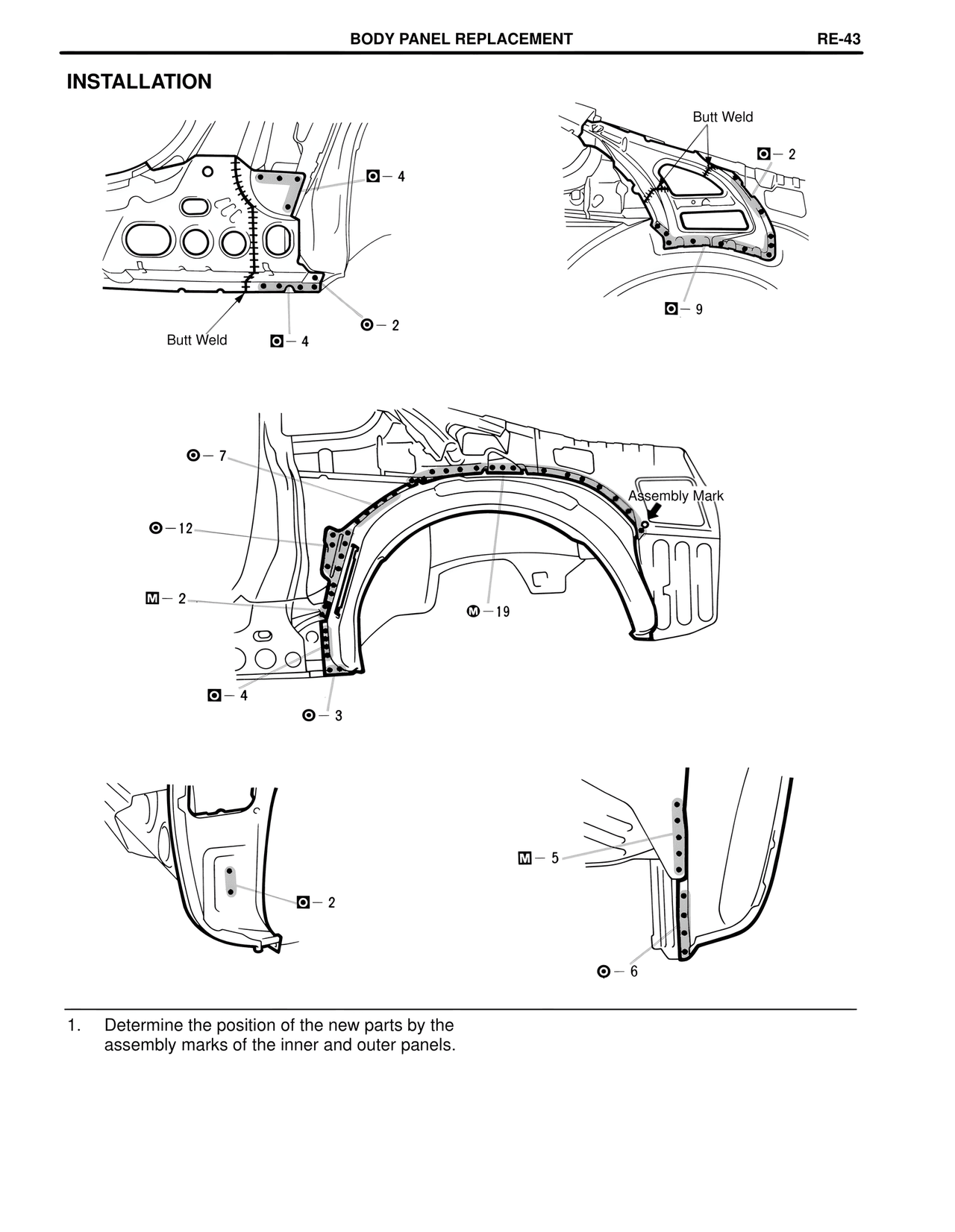

BODY PANEL REPLACEMENT RE-43 INSTALLATION Butt Weld ⊙— 4 ⊙— 2 Butt Weld ⊙— 4 Butt Weld ⊙— 2 ⊙— 9 ⊙— 7 Assembly Mark ⊙— 12 M— 2 M— 19 ⊙— 4 ⊙— 3 ⊙— 2 M— 5 ⊙— 6 1. Determine the position of the new parts by the assembly marks of the inner and outer panels.
