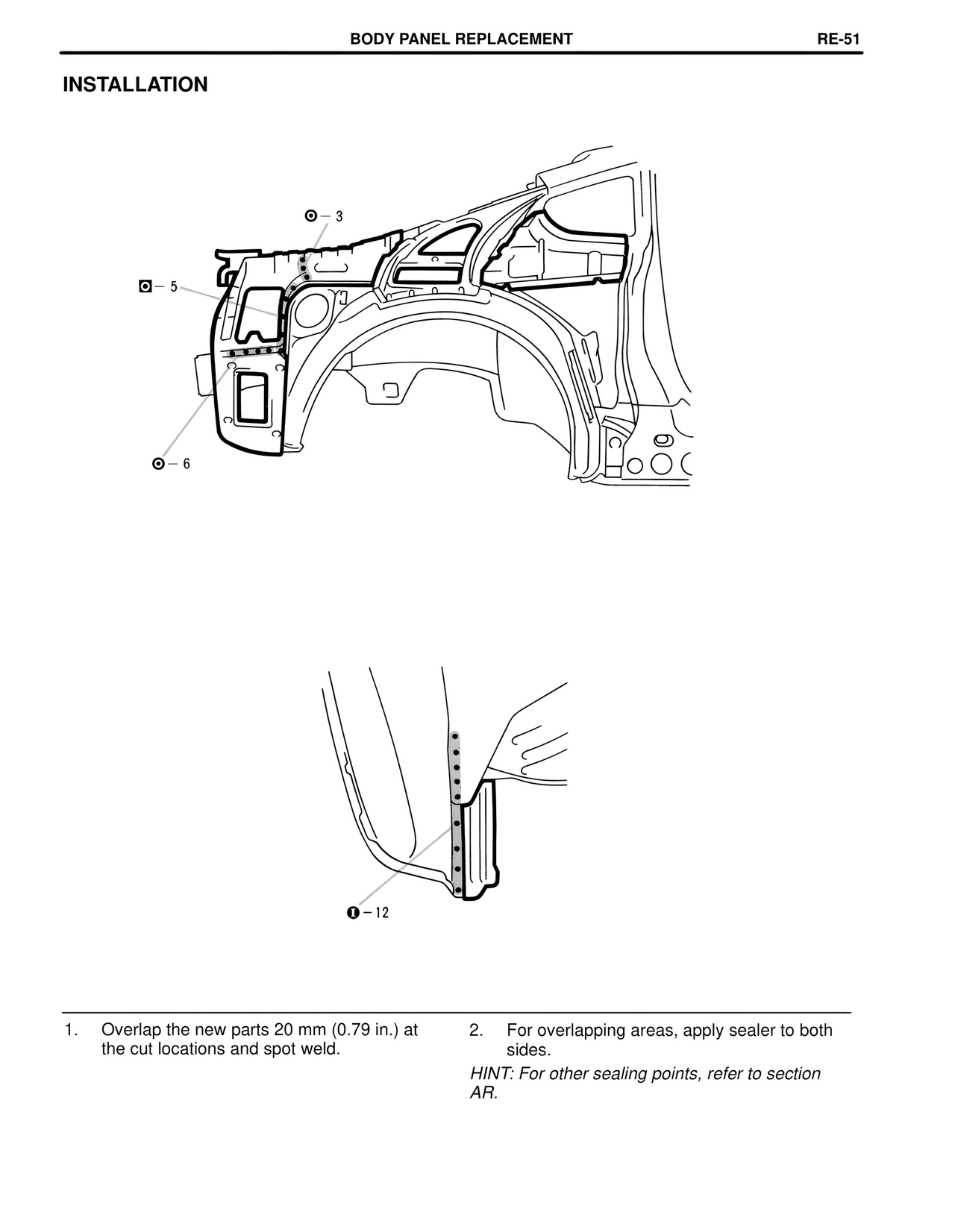

BODY PANEL REPLACEMENT
RE-51
INSTALLATION
⊙ - 3
▣ - 5
⊙ - 6
● - 12
1. Overlap the new parts 20 mm (0.79 in.) at the cut locations and spot weld.
2. For overlapping areas, apply sealer to both sides.
HINT: For other sealing points, refer to section AR.
