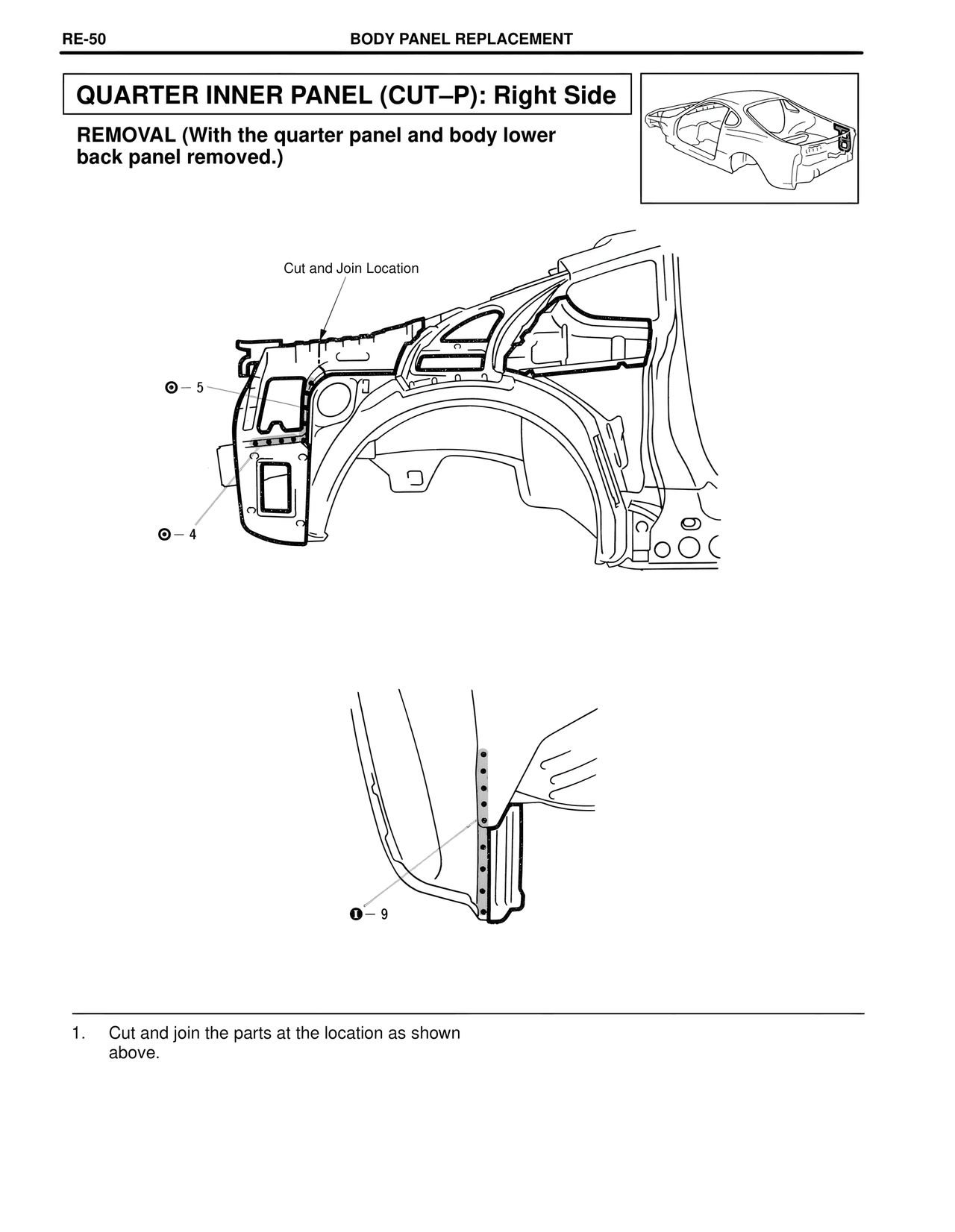

CR/Collision Repair — Quarter Inner Panel (Cut–p): Right Side, page 73

RE-50                    BODY PANEL REPLACEMENT

QUARTER INNER PANEL (CUT–P): Right Side

REMOVAL (With the quarter panel and body lower back panel removed.)

Cut and Join Location

⊙ – 5

⊙ – 4

● – 9

1.    Cut and join the parts at the location as shown above.
