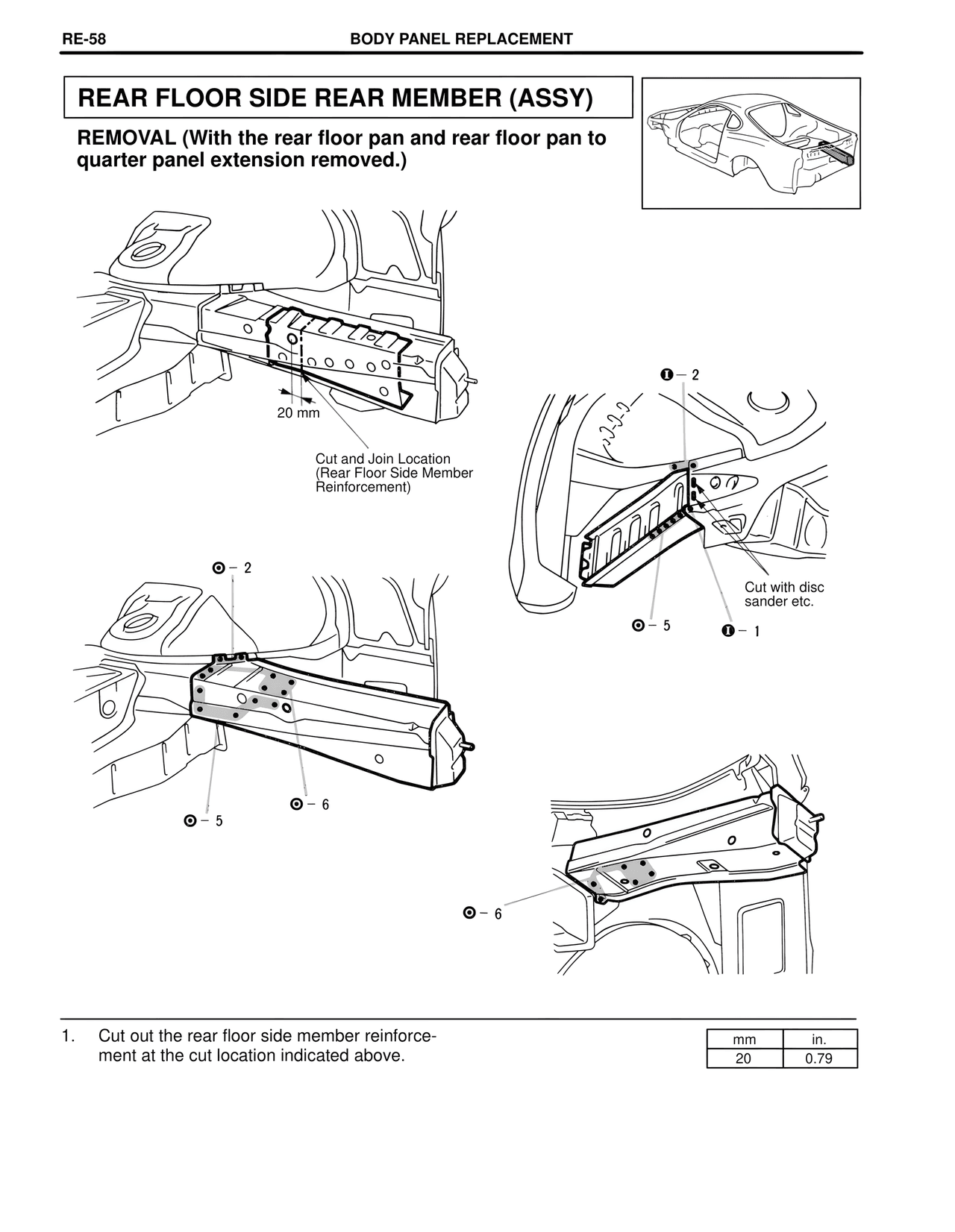

REAR FLOOR SIDE REAR MEMBER (ASSY)

REMOVAL (With the rear floor pan and rear floor pan to quarter panel extension removed.)

20 mm

Cut and Join Location
(Rear Floor Side Member
Reinforcement)

❶ - 2

Cut with disc
sander etc.

⊙ - 5          ❶ - 1

⊙ - 2

⊙ - 5

⊙ - 6

⊙ - 6

1.    Cut out the rear floor side member reinforce-
      ment at the cut location indicated above.

mm          in.
20          0.79
