BODY PANEL REPLACEMENT
RE-59
INSTALLATION

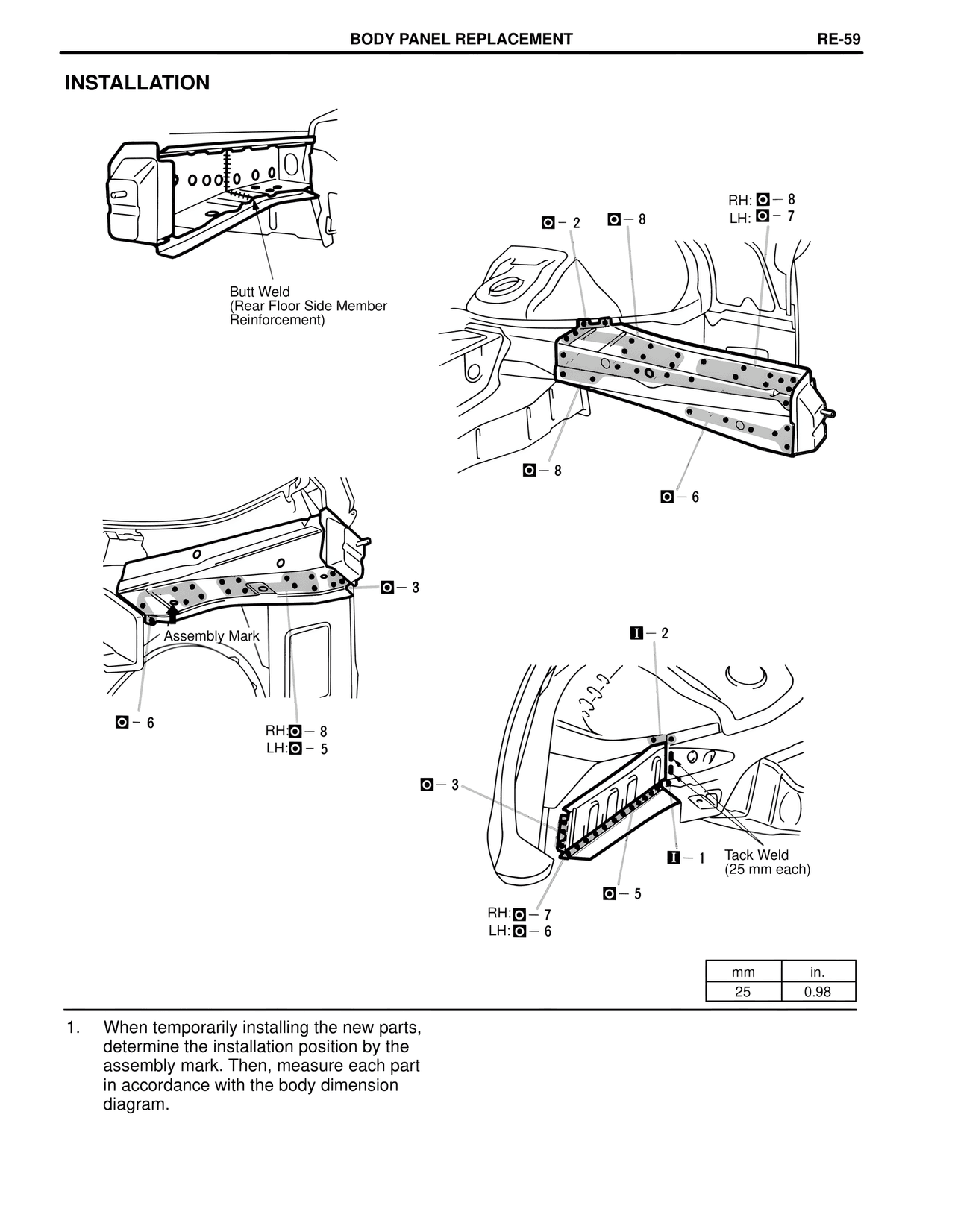

Butt Weld
(Rear Floor Side Member
Reinforcement)
RH: O - 8
LH: O - 7
O - 2 O - 8
O - 8
O - 6
Assembly Mark
O - 3
O - 6
RH: O - 8
LH: O - 5
I - 2
O - 3
Tack Weld
(25 mm each)
I - 1
O - 5
RH: O - 7
LH: O - 6
mm in.
25 0.98
1. When temporarily installing the new parts,
determine the installation position by the
assembly mark. Then, measure each part
in accordance with the body dimension
diagram.
