CR
/
Collision Repair
84 / 113
p.085 →
−
100%
+

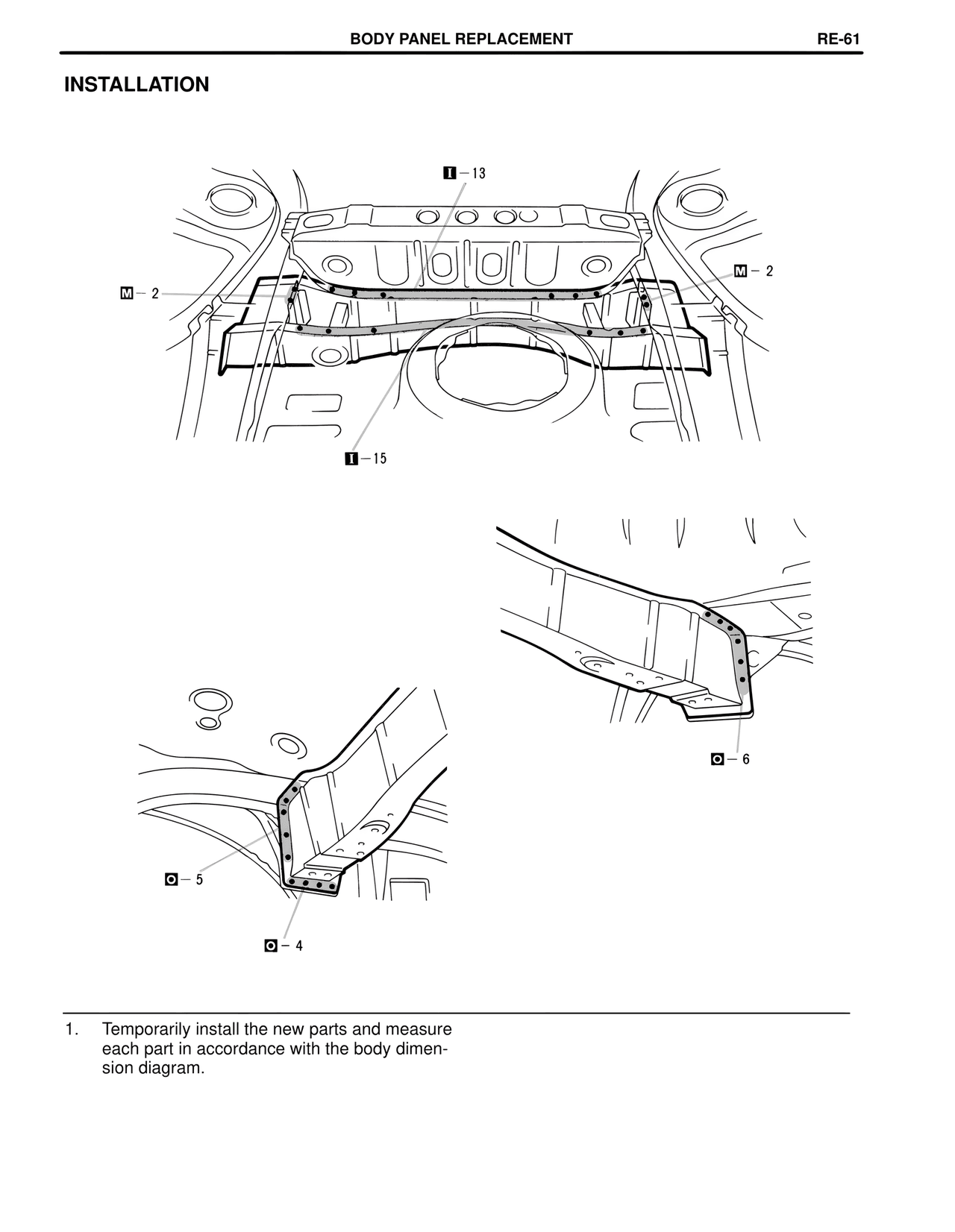

BODY PANEL REPLACEMENT RE-61 INSTALLATION I - 13 M - 2 M - 2 I - 15 O - 5 O - 4 O - 6 1. Temporarily install the new parts and measure each part in accordance with the body dimen- sion diagram.
