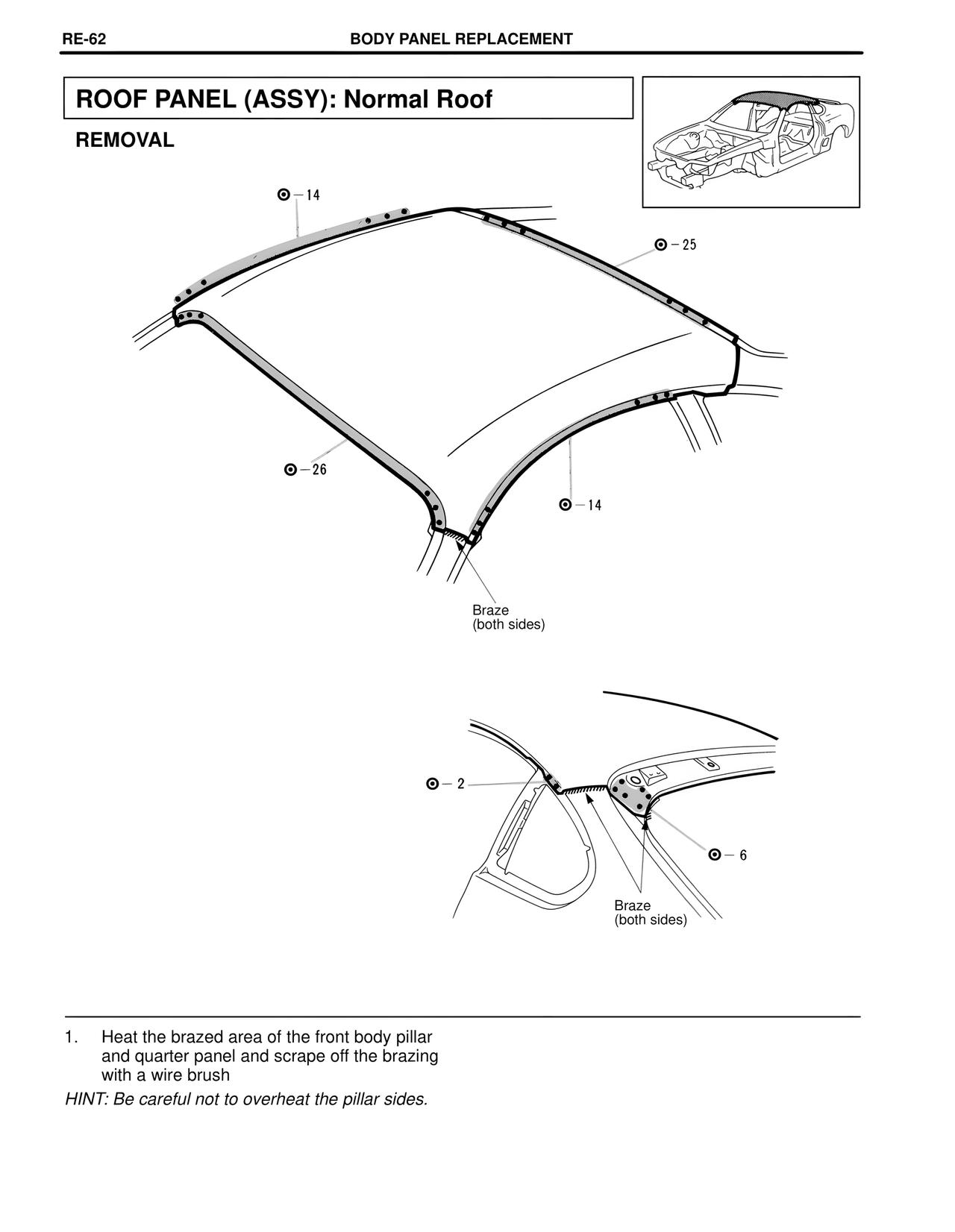

CR/Collision Repair — Roof Panel (Assy): Normal Roof, page 85

RE-62                    BODY PANEL REPLACEMENT

ROOF PANEL (ASSY): Normal Roof

REMOVAL

⊙ - 14

⊙ - 25

⊙ - 26

⊙ - 14

Braze
(both sides)

⊙ - 2

⊙ - 6

Braze
(both sides)

1.    Heat the brazed area of the front body pillar
      and quarter panel and scrape off the brazing
      with a wire brush

HINT: Be careful not to overheat the pillar sides.
