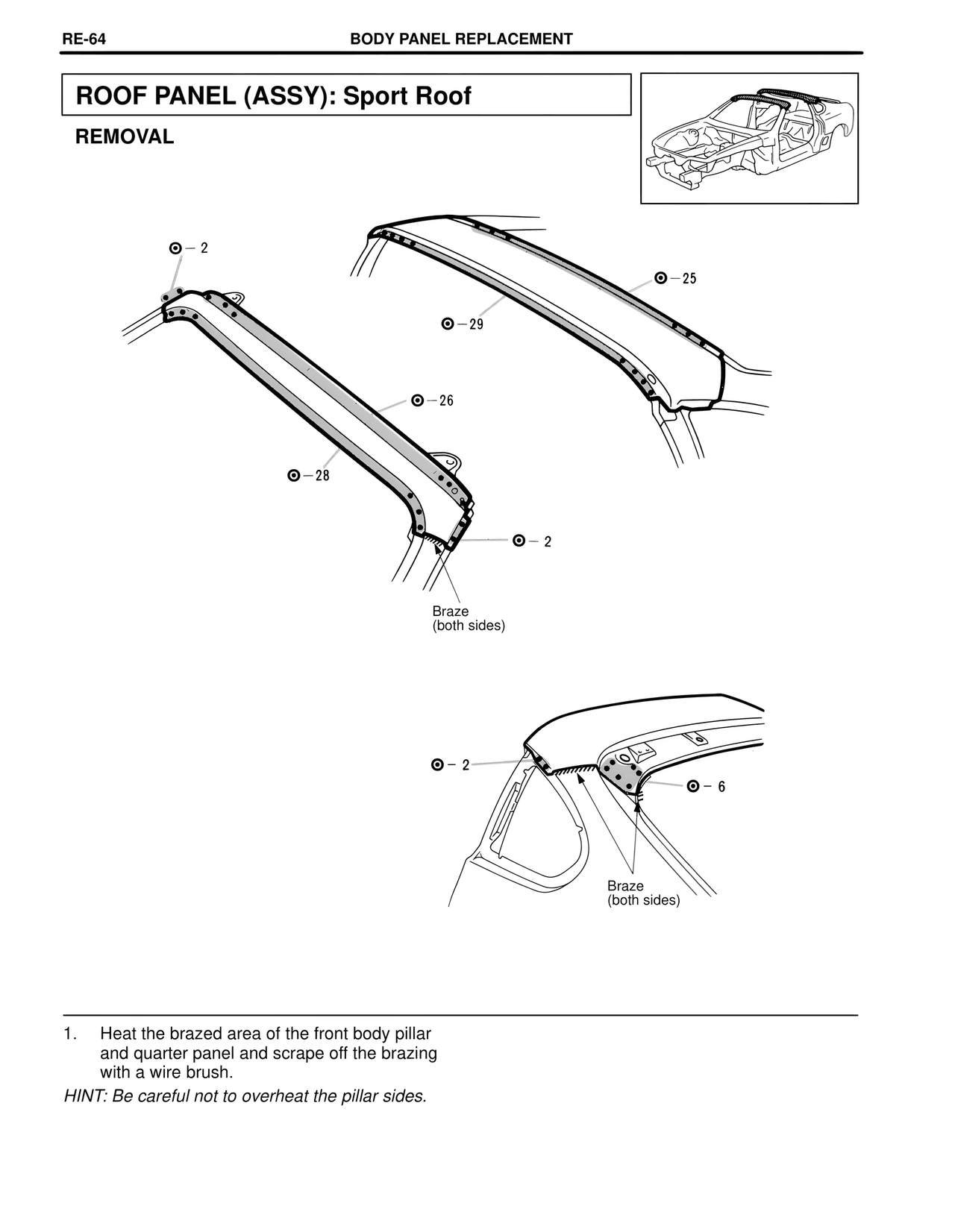

CR/Collision Repair — Roof Panel (Assy): Sport Roof, page 87

RE-64                    BODY PANEL REPLACEMENT

ROOF PANEL (ASSY): Sport Roof

REMOVAL

⊙ - 2

⊙ - 25

⊙ - 29

⊙ - 26

⊙ - 28

⊙ - 2

Braze
(both sides)

⊙ - 2

⊙ - 6

Braze
(both sides)

1.    Heat the brazed area of the front body pillar
      and quarter panel and scrape off the brazing
      with a wire brush.

HINT: Be careful not to overheat the pillar sides.
