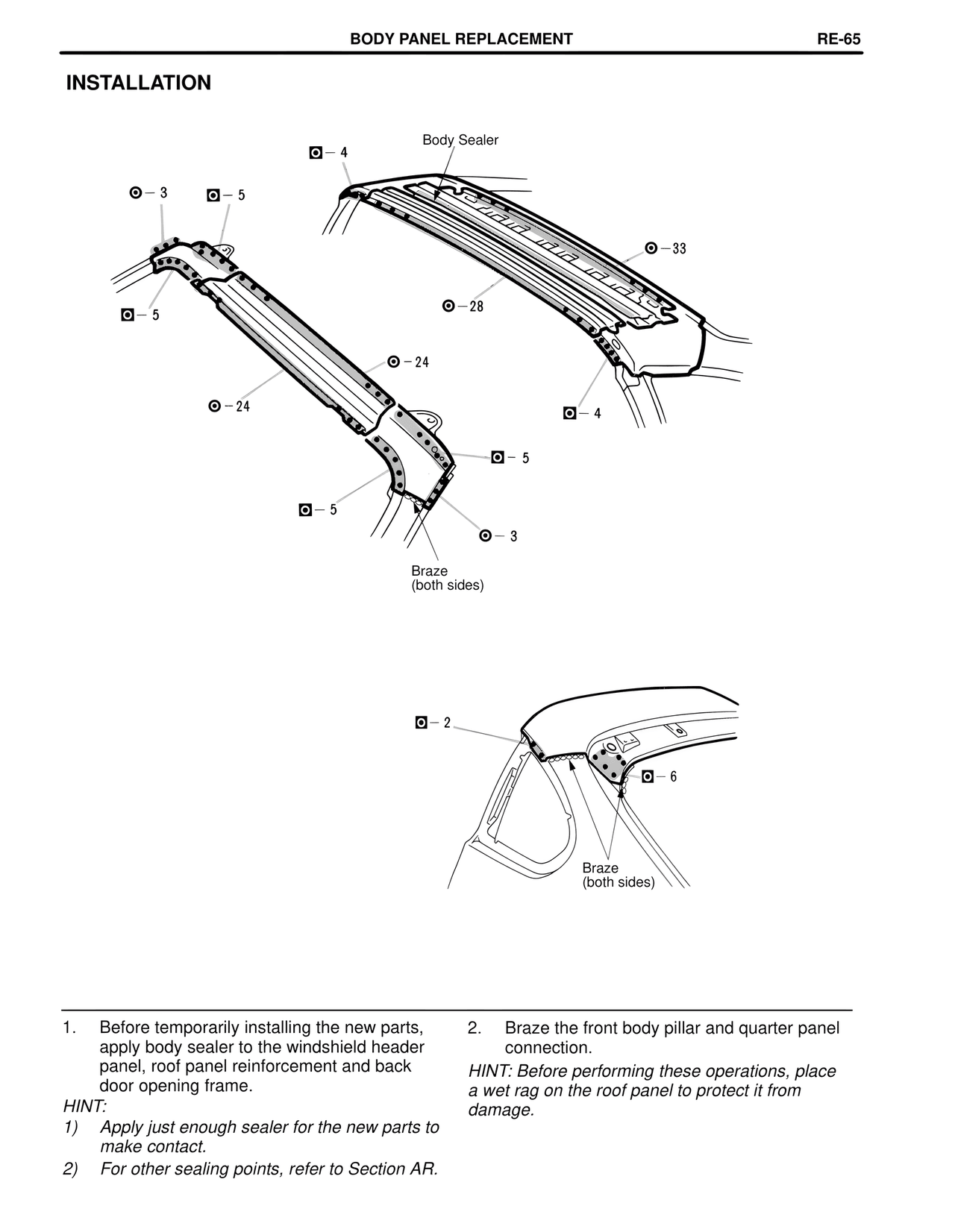

BODY PANEL REPLACEMENT
RE-65
INSTALLATION
Body Sealer
⊙ - 4
⊙ - 3 ⊙ - 5
⊙ - 33
⊙ - 5
⊙ - 28
⊙ - 24
⊙ - 24
⊙ - 4
⊙ - 5
⊙ - 5
⊙ - 3
Braze
(both sides)
⊙ - 2
⊙ - 6
Braze
(both sides)
1. Before temporarily installing the new parts, apply body sealer to the windshield header panel, roof panel reinforcement and back door opening frame.
HINT:
1) Apply just enough sealer for the new parts to make contact.
2) For other sealing points, refer to Section AR.
2. Braze the front body pillar and quarter panel connection.
HINT: Before performing these operations, place a wet rag on the roof panel to protect it from damage.
