AP-2                    APPENDIX

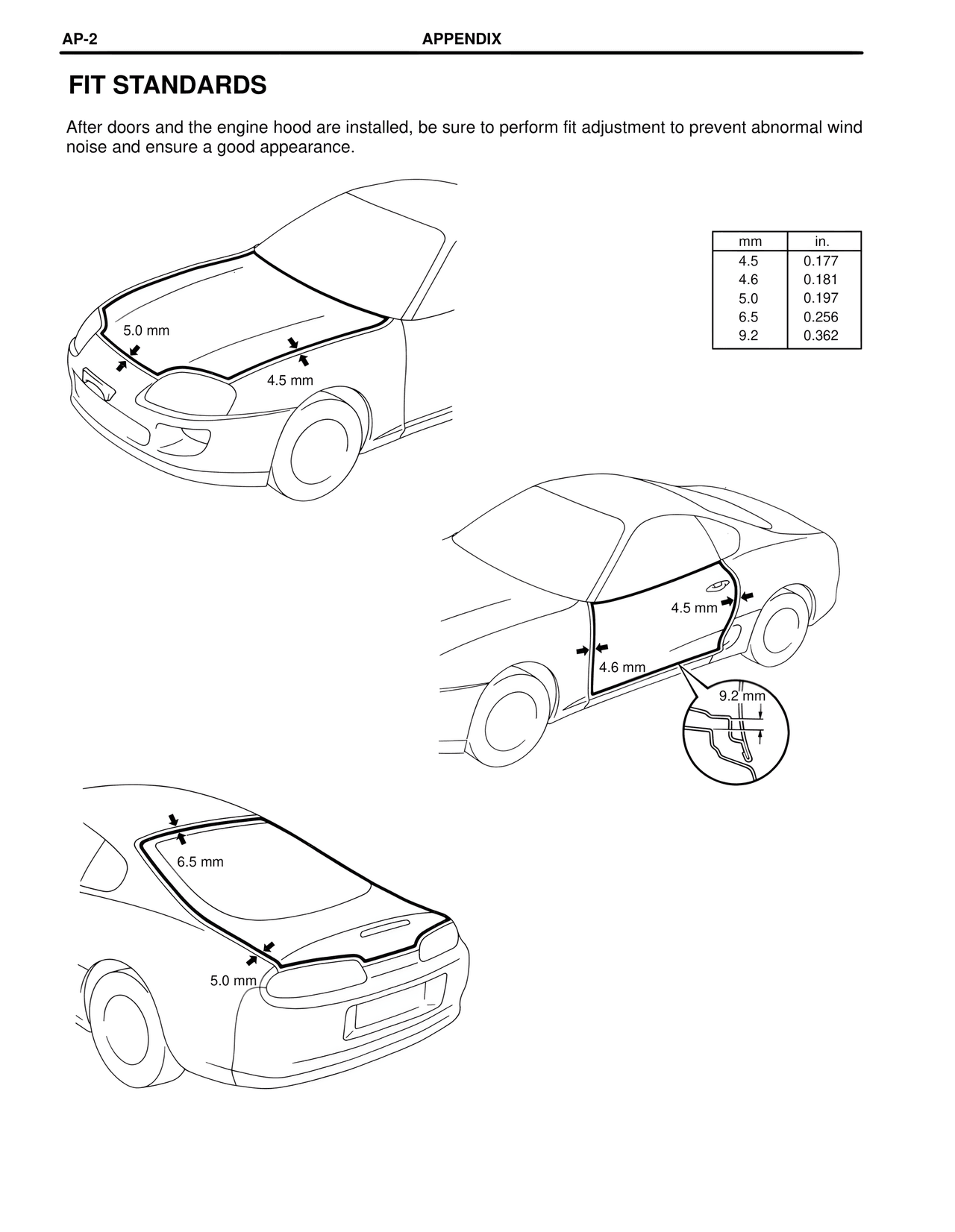

FIT STANDARDS

After doors and the engine hood are installed, be sure to perform fit adjustment to prevent abnormal wind noise and ensure a good appearance.

5.0 mm
4.5 mm

mm      in.
4.5    0.177
4.6    0.181
5.0    0.197
6.5    0.256
9.2    0.362

4.5 mm
4.6 mm
9.2 mm

6.5 mm
5.0 mm
