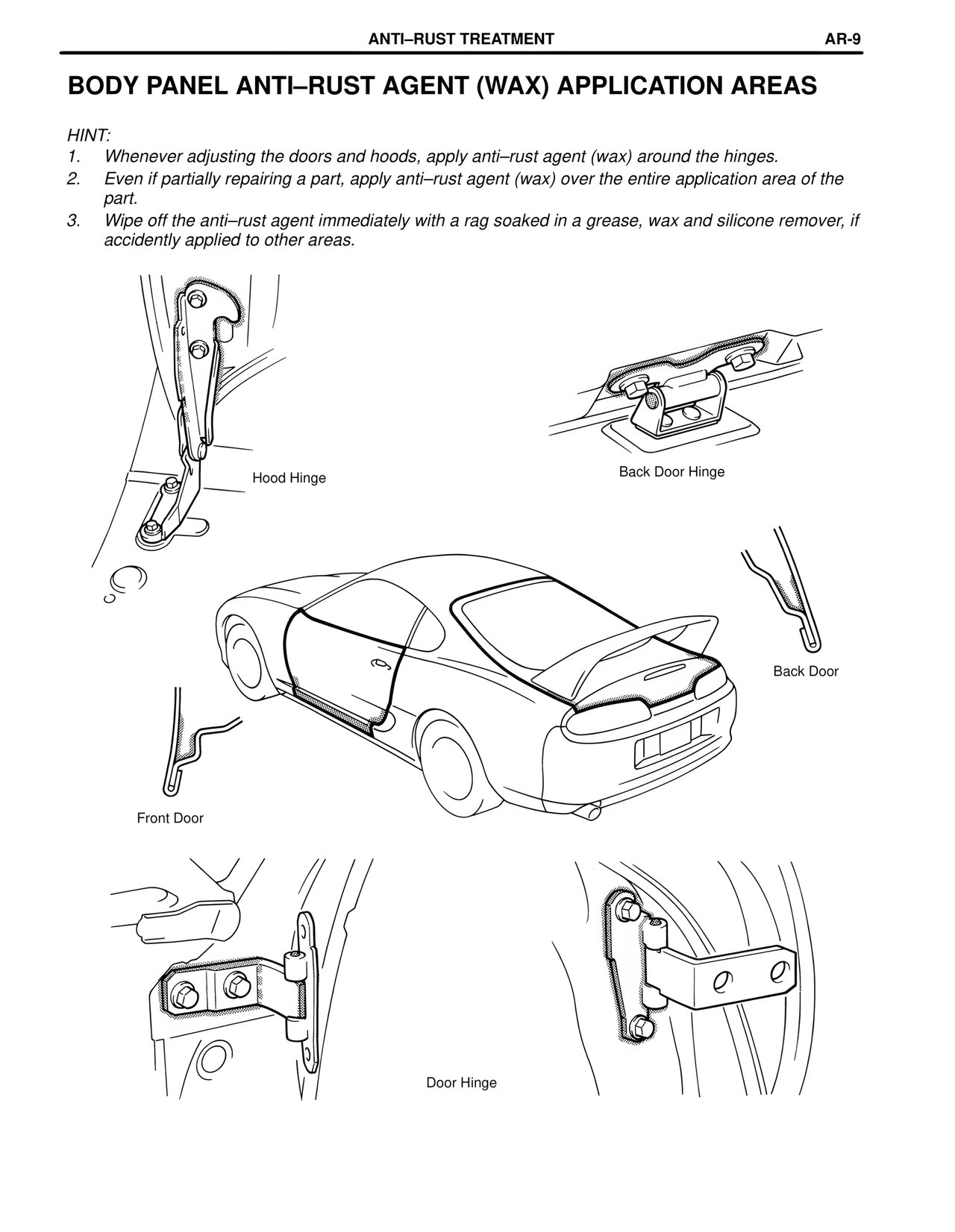

BODY PANEL ANTI–RUST AGENT (WAX) APPLICATION AREAS — MK4 Supra Collision Repair, page 97
100%
BODY PANEL ANTI–RUST AGENT (WAX) APPLICATION AREAS HINT: 1. Whenever adjusting the doors and hoods, apply anti–rust agent (wax) around the hinges. 2. Even if partially repairing a part, apply anti–rust agent (wax) over the entire application area of the part. 3. Wipe off the anti–rust agent immediately with a rag soaked in a grease, wax and silicone remover, if accidently applied to other areas. Hood Hinge Back Door Hinge Front Door Back Door Door Hinge
