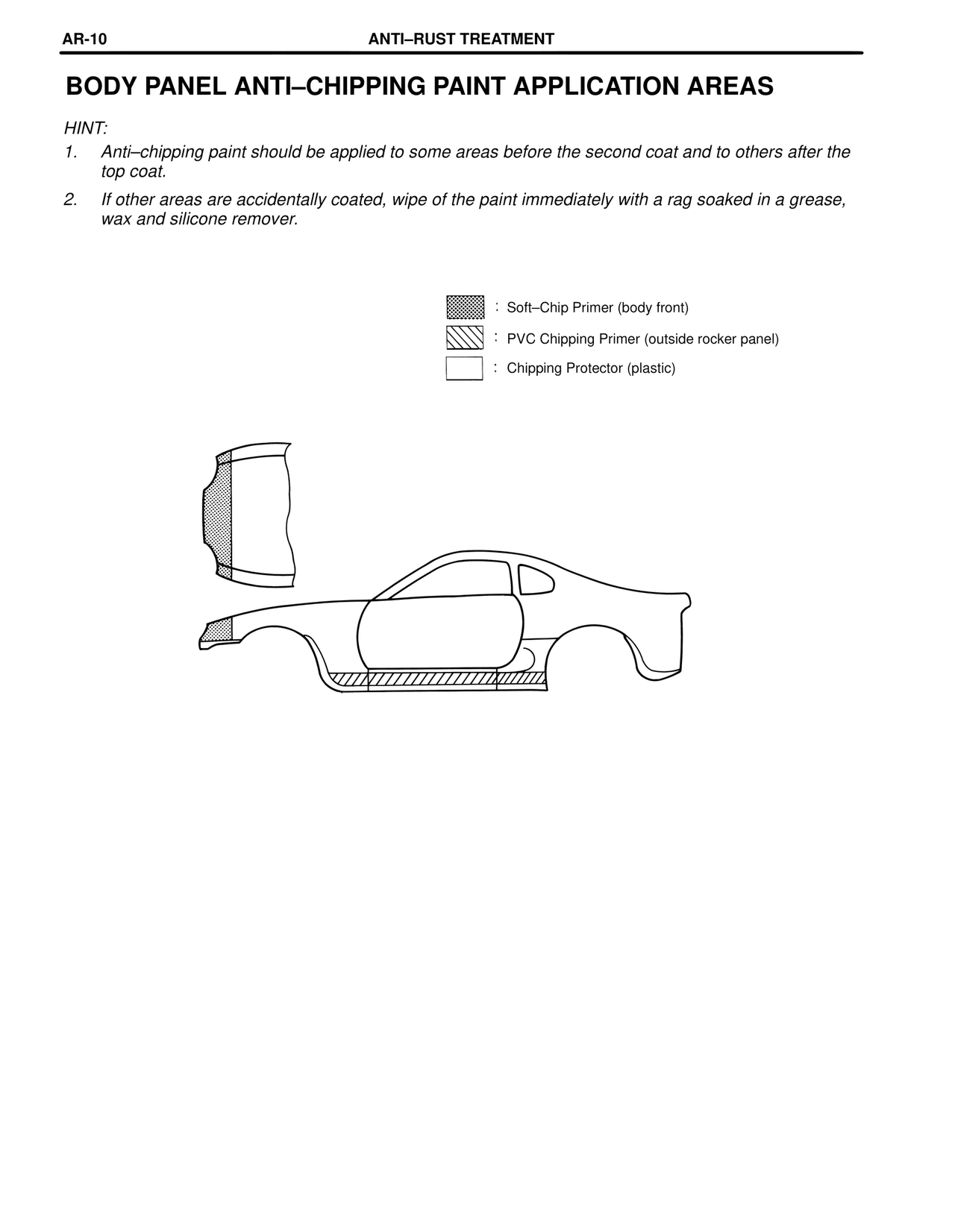

BODY PANEL ANTI–CHIPPING PAINT APPLICATION AREAS — MK4 Supra Collision Repair, page 98
100%
AR-10 ANTI–RUST TREATMENT BODY PANEL ANTI–CHIPPING PAINT APPLICATION AREAS HINT: 1. Anti–chipping paint should be applied to some areas before the second coat and to others after the top coat. 2. If other areas are accidentally coated, wipe of the paint immediately with a rag soaked in a grease, wax and silicone remover. : Soft–Chip Primer (body front) : PVC Chipping Primer (outside rocker panel) : Chipping Protector (plastic)
