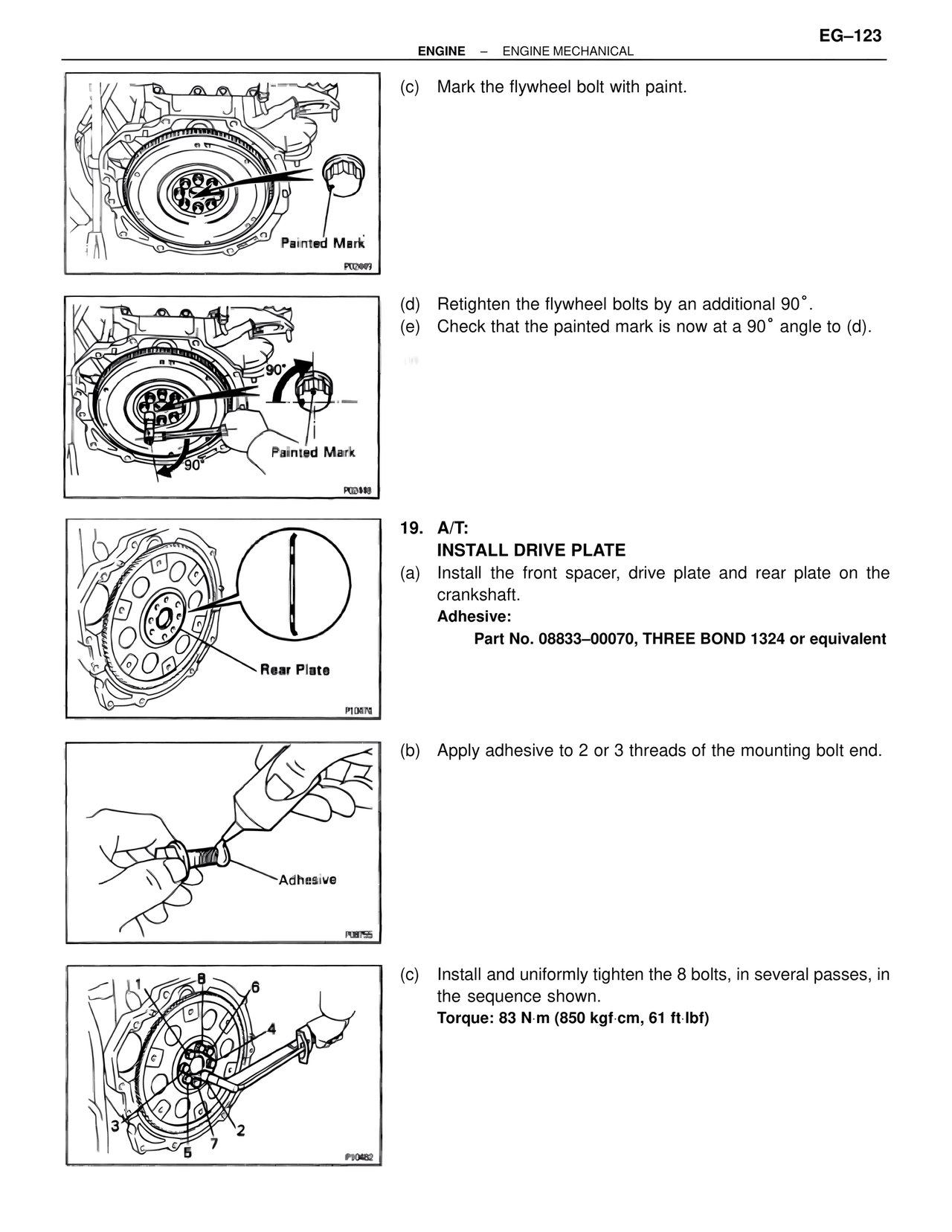

ENGINE – ENGINE MECHANICAL
EG–123
Painted Mark
P02449
(c) Mark the flywheel bolt with paint.
90°
Painted Mark
P02448
(d) Retighten the flywheel bolts by an additional 90°.
(e) Check that the painted mark is now at a 90° angle to (d).
Rear Plate
P10470
19. A/T:
INSTALL DRIVE PLATE
(a) Install the front spacer, drive plate and rear plate on the crankshaft.
Adhesive:
Part No. 08833–00070, THREE BOND 1324 or equivalent
Adhesive
P08755
(b) Apply adhesive to 2 or 3 threads of the mounting bolt end.
8
6
4
1
3
7
5
2
P10482
(c) Install and uniformly tighten the 8 bolts, in several passes, in the sequence shown.
Torque: 83 N·m (850 kgf·cm, 61 ft·lbf)
