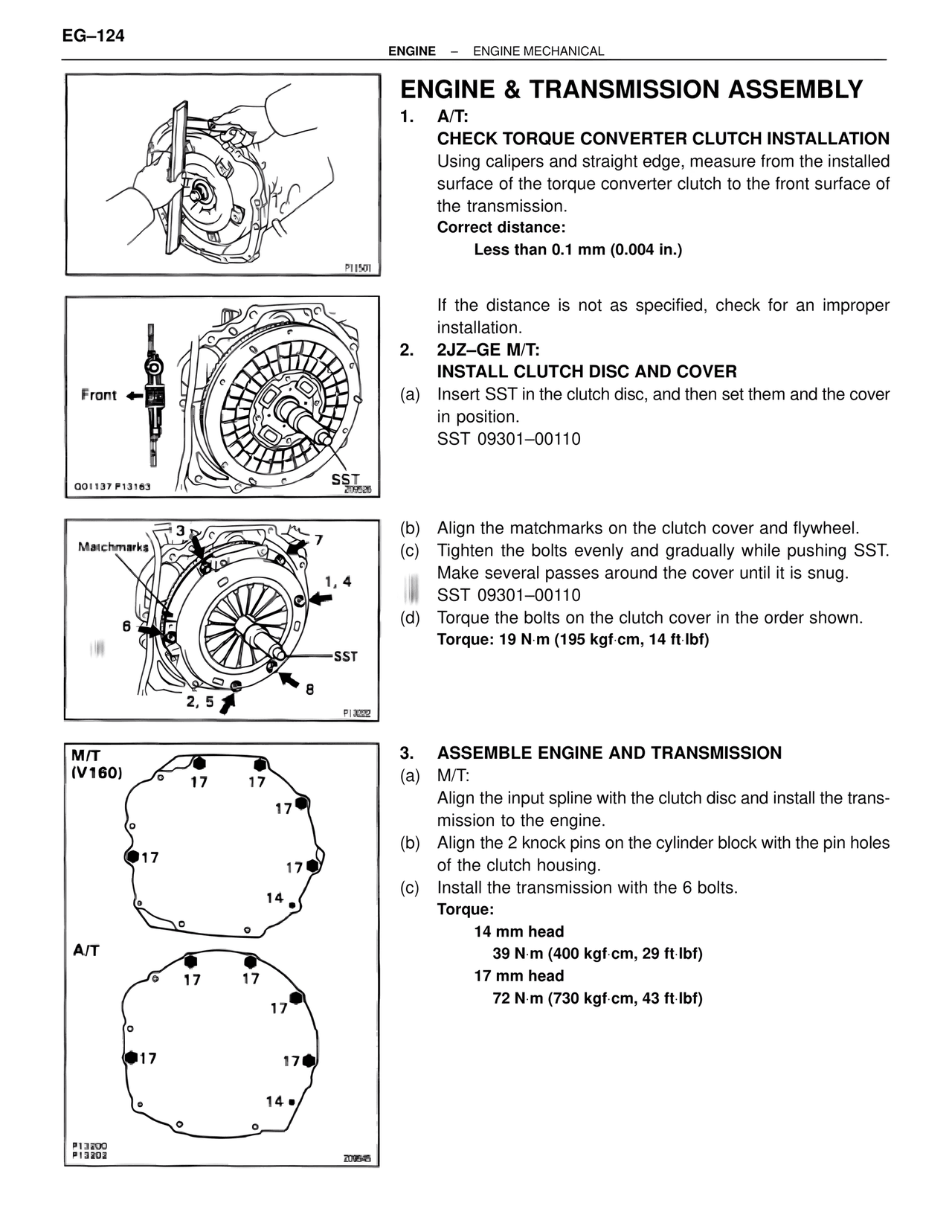

EG–124 ENGINE – ENGINE MECHANICAL ENGINE & TRANSMISSION ASSEMBLY 1. A/T: CHECK TORQUE CONVERTER CLUTCH INSTALLATION Using calipers and straight edge, measure from the installed surface of the torque converter clutch to the front surface of the transmission. Correct distance: Less than 0.1 mm (0.004 in.) If the distance is not as specified, check for an improper installation. 2. 2JZ–GE M/T: INSTALL CLUTCH DISC AND COVER (a) Insert SST in the clutch disc, and then set them and the cover in position. SST 09301–00110 Front ← Matchmarks SST (b) Align the matchmarks on the clutch cover and flywheel. (c) Tighten the bolts evenly and gradually while pushing SST. Make several passes around the cover until it is snug. SST 09301–00110 (d) Torque the bolts on the clutch cover in the order shown. Torque: 19 N·m (195 kgf·cm, 14 ft·lbf) 3. ASSEMBLE ENGINE AND TRANSMISSION (a) M/T: Align the input spline with the clutch disc and install the trans- mission to the engine. (b) Align the 2 knock pins on the cylinder block with the pin holes of the clutch housing. (c) Install the transmission with the 6 bolts. Torque: 14 mm head 39 N·m (400 kgf·cm, 29 ft·lbf) 17 mm head 72 N·m (730 kgf·cm, 43 ft·lbf) M/T (V160) 17 17 17 17 17 14 A/T 17 17 17 17 17 14 P11501 G01137 P13163 P13222 P13200 P13202 Z09525 Z09545
